LFTC-4000+ footprint, schematic symbol and 3D model by Mini-Circuits

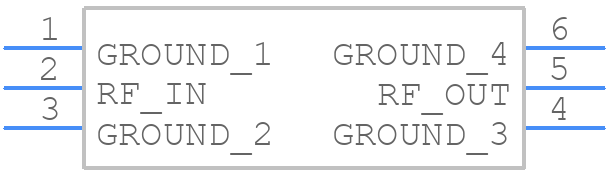

Symbol

click to zoom

PCB Footprints

LFTC-4000+ - Mini-Circuits PCB footprint - Other - Other - FR933_2026-1.19

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LFTC-4000+
Part Number LFTC-4000+
Manufacturer Mini-Circuits
Pin Count 6
Part Category Filter
Package Category Other
Footprint Name Other - FR933_2026-1.19
Released Date Jul 20, 2026
Last Modified Date Jul 20, 2026 12:55 PM UTC
Pinout / Pin List Click Here (Member Only)

LFTC-4000+ Details

Manufacturer Part Number:
LFTC-4000+
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
7.79
Additional Feature:
OTHER PACKING QTY ALSO AVAILABLE
Average Input Power:
10 W
Center or Cutoff Frequency (fo/fc):
5325 MHz
Filter Type:
CERAMIC LPF
Height:
0.864 mm
Input/Output Impedance:
50 OHM
JESD-609 Code:
e4
Length:
3.81 mm
Mounting Type:
SURFACE MOUNT
Number of Sections-Max:
7
Number of Sections-Min:
7
Number of Terminals:
6
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-55 °C
Packing Method:
TR, 7/13 INCH
Terminal Finish:
PALLADIUM SILVER
VSWR:
1.2
Width:
3.81 mm

LFTC-4000+ Frequently Asked Questions (FAQs)

Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip layout with 50-ohm impedance. Proper grounding and decoupling are crucial for optimal performance. Consult the application note AN-60-014 for more details.
To achieve the specified frequency response and gain flatness, ensure that the device is properly terminated with 50-ohm loads, and that the input and output traces are well-matched and of equal length. Additionally, use a high-quality PCB material with low dielectric loss and a consistent thickness.
The maximum power handling capability of the LFTC-4000+ is 1W. Exceeding this limit may result in permanent damage to the device. Ensure that the input power is limited to 1W or less to maintain reliable operation.
While the LFTC-4000+ is designed for 50-ohm systems, it can be used in non-50-ohm systems with some performance degradation. However, the device's frequency response and gain flatness may be affected. Consult with Mini-Circuits' application engineers for guidance on using the LFTC-4000+ in non-50-ohm systems.
The operating temperature range of the LFTC-4000+ is -40°C to +85°C. The device's performance may degrade outside of this range, and prolonged exposure to extreme temperatures may affect its reliability.
