LFXTAL009650Reel - IQD

Description: 16 MHz ±10ppm Crystal 16pF 70 Ohms 4-SMD, No Lead

Download LFXTAL009650Reel Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

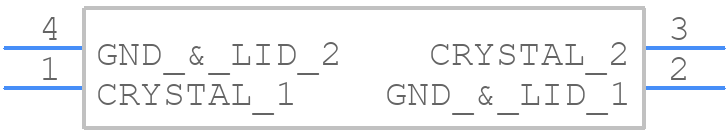

LFXTAL009650Reel - IQD - PCB symbol
click to zoom
PCB Footprints
LFXTAL009650Reel - IQD PCB footprint - Other - Other - LFXTAL009650Reel-1
click to zoom
3D Models
LFXTAL009650Reel - IQD - 3D model - Other - LFXTAL009650Reel-1
click to zoom

LFXTAL009650Reel Details

  • Manufacturer Part Number:

    LFXTAL009650REEL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMD, 4 PIN

  • HTS Code:

    8541.60.00.50

  • Manufacturer:

    IQD Frequency Products

  • YTEOL:

    0

  • Additional Feature:

    TR

  • Aging:

    5 PPM/YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.002%

  • Frequency Tolerance:

    10 ppm

  • JESD-609 Code:

    e4

  • Load Capacitance:

    16 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    16 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Physical Dimension:

    L3.4XB2.7XH0.8 (mm)/L0.134XB0.106XH0.031 (inch)

  • Series Resistance:

    70 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

LFXTAL009650Reel Frequently Asked Questions (FAQs)

  • The recommended storage condition for LFXTAL009650REEL is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to +40°C and relative humidity of 60% or less.
  • While LFXTAL009650REEL is designed to be robust, it's not recommended for use in high-vibration environments (>10g) without proper mounting and mechanical isolation. Consult IQD Frequency Products for specific guidance.
  • The maximum soldering temperature for LFXTAL009650REEL is 260°C for a maximum of 10 seconds. Exceeding this temperature or time may damage the crystal.
  • Yes, LFXTAL009650REEL is compatible with lead-free soldering processes, but ensure that the soldering profile follows the recommended temperature and time guidelines.
  • The typical lead time for LFXTAL009650REEL is 6-8 weeks, but this may vary depending on the quantity and availability. Contact IQD Frequency Products for the most up-to-date lead time information.
