LFXTAL026380REEL - IQD

Description: Crystal 8MHz ±30ppm (Tol) ±50ppm (Stability) 16pF FUND 80Ohm 4-Pin CSMD T/R

Download LFXTAL026380REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

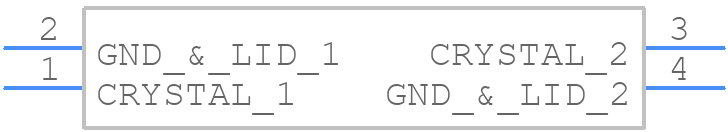

LFXTAL026380REEL - IQD - PCB symbol
click to zoom
PCB Footprints
LFXTAL026380REEL - IQD PCB footprint - Other - Other - LFXTAL026380REEL-1
click to zoom
3D Models
LFXTAL026380REEL - IQD - 3D model - Other - LFXTAL026380REEL-1
click to zoom

LFXTAL026380REEL Details

  • Manufacturer Part Number:

    LFXTAL026380REEL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMD, 4 PIN

  • HTS Code:

    8541.60.00.50

  • Manufacturer:

    IQD Frequency Products

  • YTEOL:

    0

  • Additional Feature:

    TR

  • Aging:

    5 PPM/YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.005%

  • Frequency Tolerance:

    30 ppm

  • JESD-609 Code:

    e4

  • Load Capacitance:

    16 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    8 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Physical Dimension:

    L7.5XB5.2XH1.4 (mm)/L0.295XB0.205XH0.055 (inch)

  • Series Resistance:

    80 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

LFXTAL026380REEL Frequently Asked Questions (FAQs)

  • The recommended storage condition for the LFXTAL026380REEL is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 60%.
  • While the LFXTAL026380REEL is rated for operation up to 85°C, it's not recommended for use in high-temperature applications above 85°C. For high-temperature applications, a different crystal oscillator may be required.
  • The recommended soldering profile for the LFXTAL026380REEL is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
  • Yes, the LFXTAL026380REEL is compatible with lead-free soldering. However, it's recommended to follow the manufacturer's guidelines for lead-free soldering to ensure reliable assembly.
  • The typical power consumption of the LFXTAL026380REEL is around 1-2 μW, depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LFXTAL026380REEL Overview

Use the download button to access the LFXTAL026380REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LFXTA, or try a keyword search, such as Quartz Crystals
