LGG2D152MELC30 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 200volts 1500uF 105c 35x30x10L/S

Download LGG2D152MELC30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGG2D152MELC30 - Nichicon - PCB symbol
click to zoom
PCB Footprints

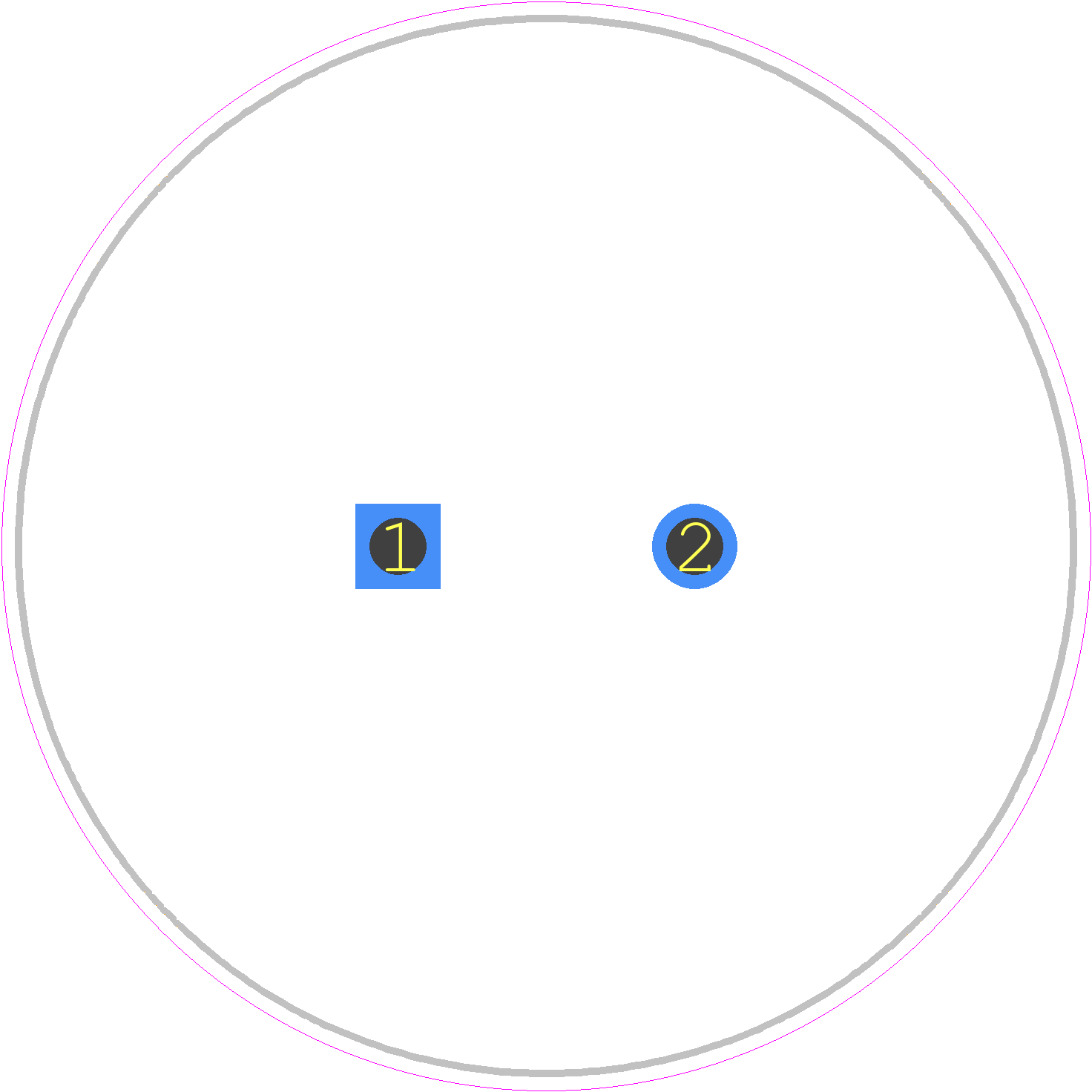

LGG2D152MELC30 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - package 35*30
click to zoom
3D Models
LGG2D152MELC30 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - package 35*30
click to zoom

LGG2D152MELC30 Details

  • Manufacturer Part Number:

    LGG2D152MELC30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    1500 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.64 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    200 V

  • Ripple Current:

    2570 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGG2D152MELC30 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is between 250°C to 260°C for 3 seconds to 5 seconds.
  • Yes, the LGG2D152MELC30 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The ESR of the LGG2D152MELC30 is typically around 10 mohm to 20 mohm at 100 kHz, but it's recommended to check the datasheet or contact Nichicon for the exact value.
  • Yes, the LGG2D152MELC30 is designed to withstand high vibrations and is suitable for use in applications with mechanical stress, such as automotive or industrial systems.
  • The shelf life of the LGG2D152MELC30 is typically 2 years from the date of manufacture, but it's recommended to follow proper storage conditions and check the capacitor's performance before using it in a design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGG2D152MELC30 Overview

Use the download button to access the LGG2D152MELC30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGG2D, or try a keyword search, such as Aluminum Electrolytic Capacitors
