LGG2W151MELA30 - Nichicon

Description: Nichicon 150μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 25 (Dia.) x 30mm +105°C 25mm 10mm

Download LGG2W151MELA30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGG2W151MELA30 - Nichicon - PCB symbol
click to zoom
PCB Footprints

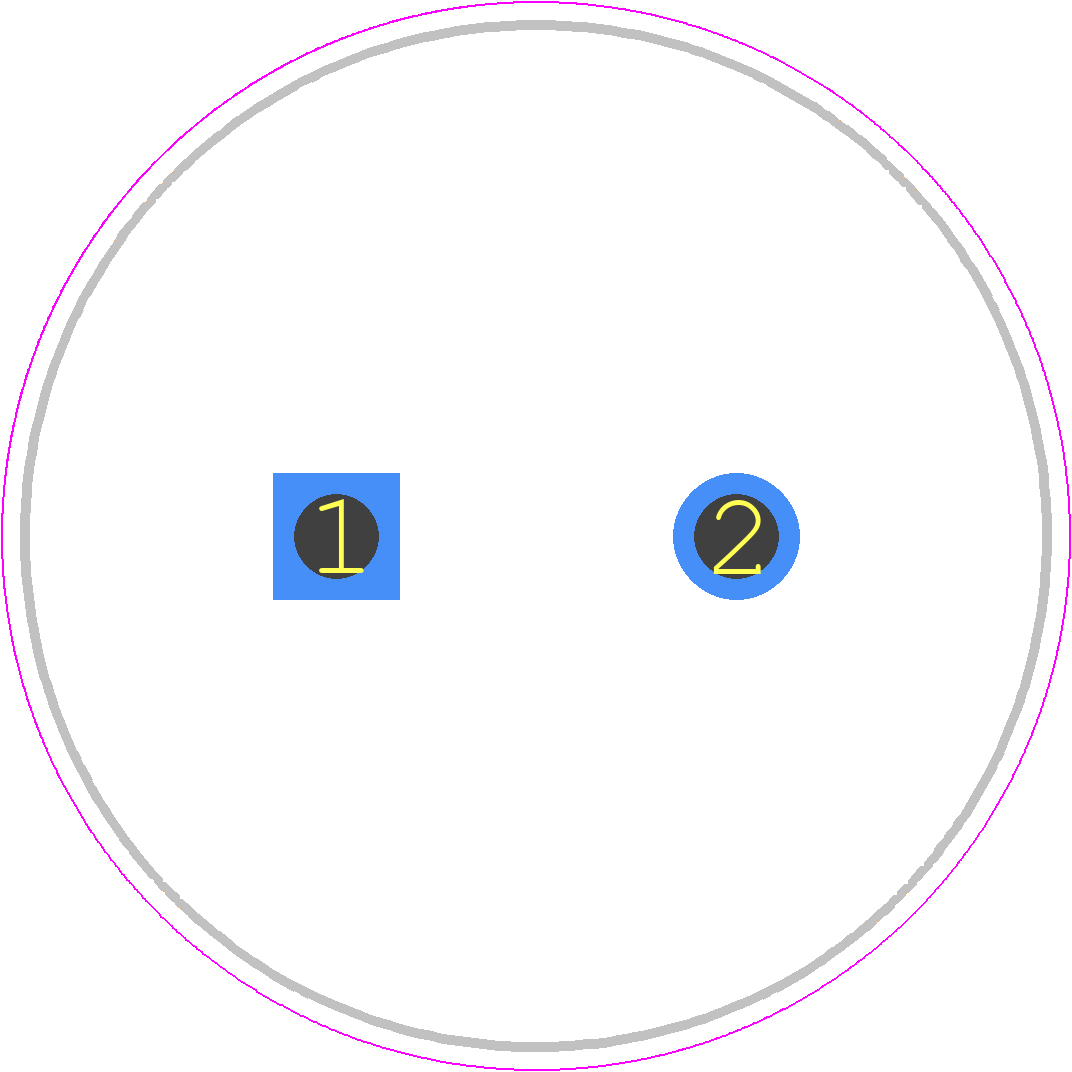

LGG2W151MELA30 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25x30mm
click to zoom
3D Models
LGG2W151MELA30 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25x30mm
click to zoom

LGG2W151MELA30 Details

  • Manufacturer Part Number:

    LGG2W151MELA30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    150 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.77 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    790 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGG2W151MELA30 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for LGG2W151MELA30 is to have a large copper area for heat dissipation, and to keep the capacitor away from high-frequency signal lines to minimize noise coupling. A minimum of 1 oz copper thickness is recommended.
  • Yes, LGG2W151MELA30 is designed to withstand high vibrations. Nichicon Corporation recommends following the IEC 60068-2-6 standard for vibration testing, and the capacitor has been tested to withstand 10-2000 Hz, 1.5 mm amplitude vibrations.
  • The ESR of LGG2W151MELA30 is typically around 30 mohm. To minimize the impact of ESR, it is recommended to use a low-ESR capacitor in parallel with the LGG2W151MELA30, and to optimize the PCB layout to reduce parasitic inductance.
  • Yes, LGG2W151MELA30 is compatible with lead-free soldering. Nichicon Corporation recommends following the J-STD-020 standard for lead-free soldering, and the capacitor has been tested to withstand the recommended soldering temperatures.
  • The derating curve for LGG2W151MELA30 is typically around 1.25% per degree Celsius above 85°C. This means that the capacitor's capacitance will decrease by 1.25% for every degree Celsius above 85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGG2W151MELA30 Overview

Use the download button to access the LGG2W151MELA30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGG2W, or try a keyword search, such as Aluminum Electrolytic Capacitors
