The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds to 5 seconds. However, it's always best to follow the soldering profile recommended by the manufacturer or the specific assembly process.
Yes, the LGG2W181MELA30 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) above the allowed limits.
The ESR of the LGG2W181MELA30 capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mohms at 100 kHz, based on similar capacitors from Nichicon Corporation.
The LGG2W181MELA30 capacitor is designed to withstand moderate vibration, but it's not specifically designed for high-vibration applications. If you need a capacitor for high-vibration applications, you may want to consider a capacitor with a more robust design and construction, such as those with a more secure terminal attachment or a specialized vibration-resistant design.
The LGG2W181MELA30 capacitor has a maximum operating temperature of 125°C (257°F), which is relatively high. However, it's still important to consider the specific temperature requirements of your application and ensure that the capacitor will not be exposed to temperatures above its rated maximum operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGG2W181MELA30 Overview

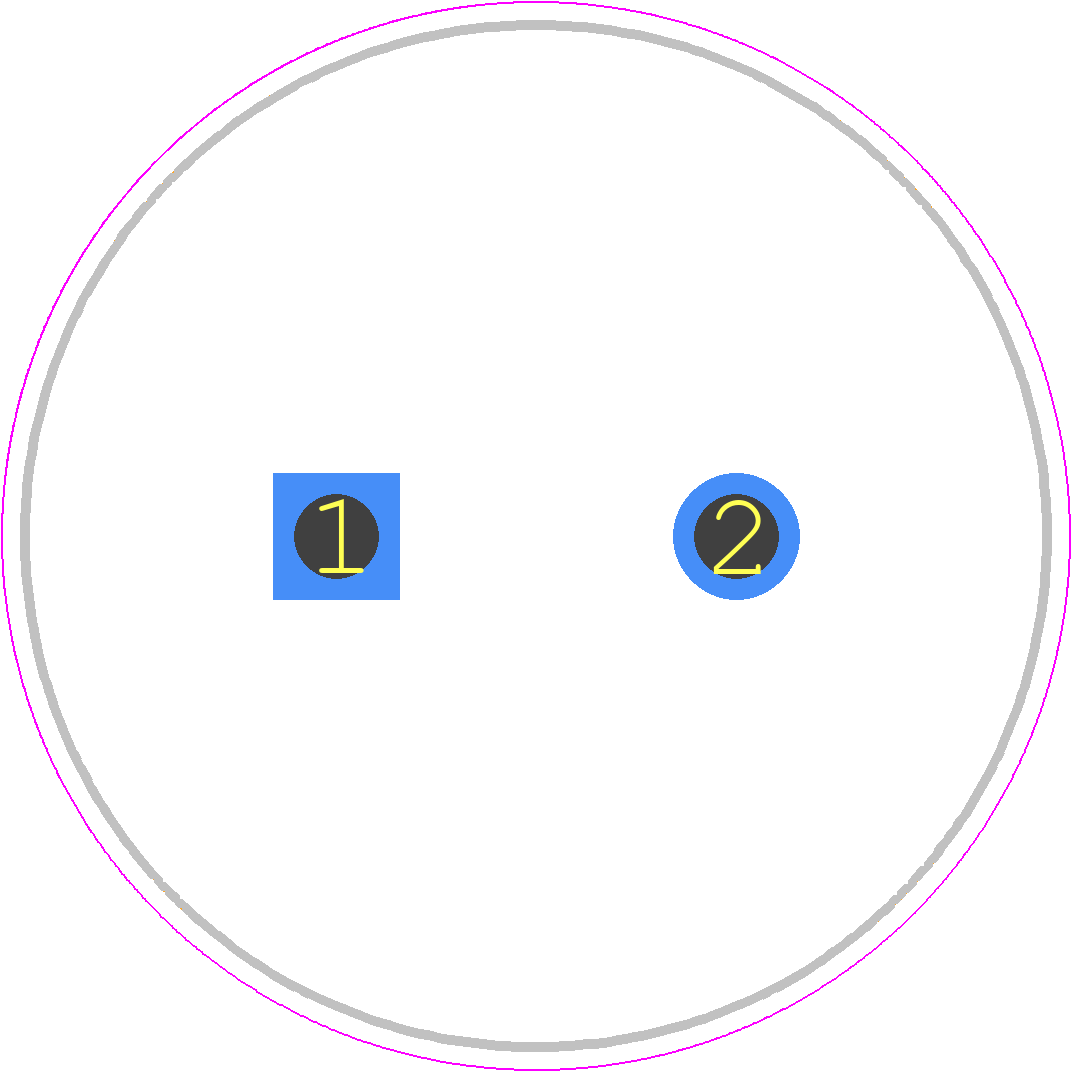

Use the download button to access the LGG2W181MELA30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGG2W,
or try a keyword search, such as Aluminum Electrolytic Capacitors
