The recommended land pattern for LGG2W221MELA35 is a rectangular pad with a size of 5.5mm x 7.5mm, with a solder mask opening of 4.5mm x 6.5mm. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal issues.
Yes, LGG2W221MELA35 is designed to withstand high-vibration environments. Nichicon Corporation has tested the capacitor for vibration resistance according to IEC 60068-2-6, and it meets the requirements for vibration testing. However, it's essential to ensure that the capacitor is properly mounted and secured to the PCB to prevent mechanical stress.
LGG2W221MELA35 is rated for operation up to 125°C, with a derating of capacitance and impedance at higher temperatures. The capacitor's performance may degrade at high temperatures, but it will still meet the specified characteristics. It's essential to consider the operating temperature range and the capacitor's derating when designing the circuit.
Yes, LGG2W221MELA35 is compatible with lead-free soldering. Nichicon Corporation has tested the capacitor for lead-free soldering compatibility, and it meets the requirements for reflow soldering at temperatures up to 260°C.
The recommended storage condition for LGG2W221MELA35 is in a dry, cool place with a temperature range of 5°C to 30°C and a relative humidity of 60% or less. It's essential to store the capacitors in their original packaging or in a similar environment to prevent moisture absorption and electrical degradation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGG2W221MELA35 Overview

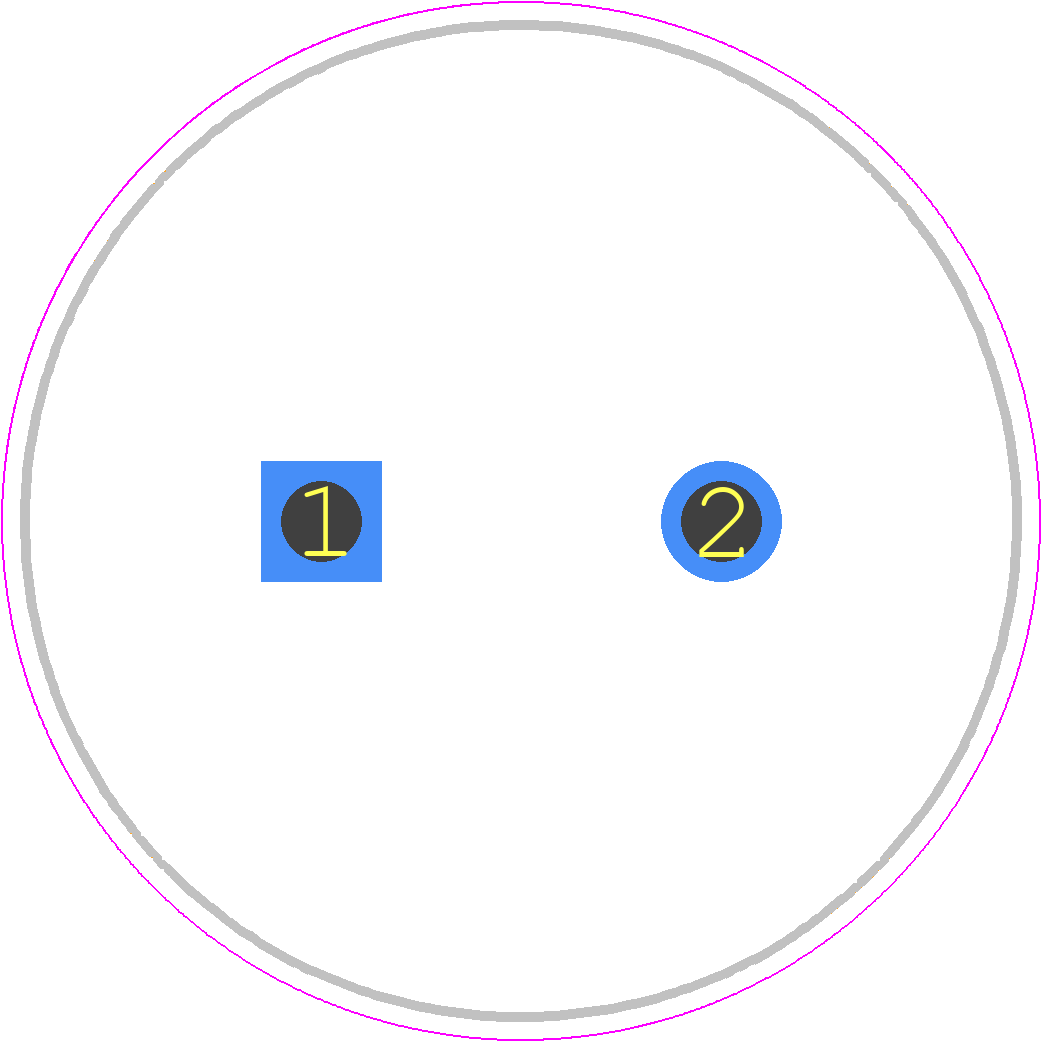

Use the download button to access the LGG2W221MELA35 schematic symbol, PCB footprint, and 3D model.
