The recommended PCB layout for LGG2Z332MELC50 is to place the capacitor as close as possible to the IC, with the shortest possible leads to minimize inductance and ensure optimal performance. A ground plane underneath the capacitor is also recommended to reduce noise and electromagnetic interference.
While LGG2Z332MELC50 is rated for operation up to 105°C, it's essential to consider the derating curve and reduce the voltage rating accordingly to ensure reliable operation. Additionally, the capacitor's lifespan may be affected by high temperatures, so it's crucial to assess the application's requirements and potential thermal stress.
The ESR of LGG2Z332MELC50 is specified in the datasheet. To minimize the impact of ESR, ensure that the capacitor is used within its recommended frequency range and that the PCB layout is optimized for low inductance. You can also consider using a capacitor with a lower ESR if high-frequency performance is critical.
While LGG2Z332MELC50 is a reliable capacitor, it's essential to assess the application's vibration and shock requirements. Nichicon Corporation provides vibration and shock testing data for their capacitors, but it's crucial to consult with their application engineers or perform custom testing to ensure the capacitor meets the specific application requirements.
LGG2Z332MELC50 is not hermetically sealed, so it's not recommended for use in humid or moist environments. If the application requires operation in such conditions, consider using a capacitor with a hermetic seal or a conformal coating to protect against moisture ingress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGG2Z332MELC50 Overview

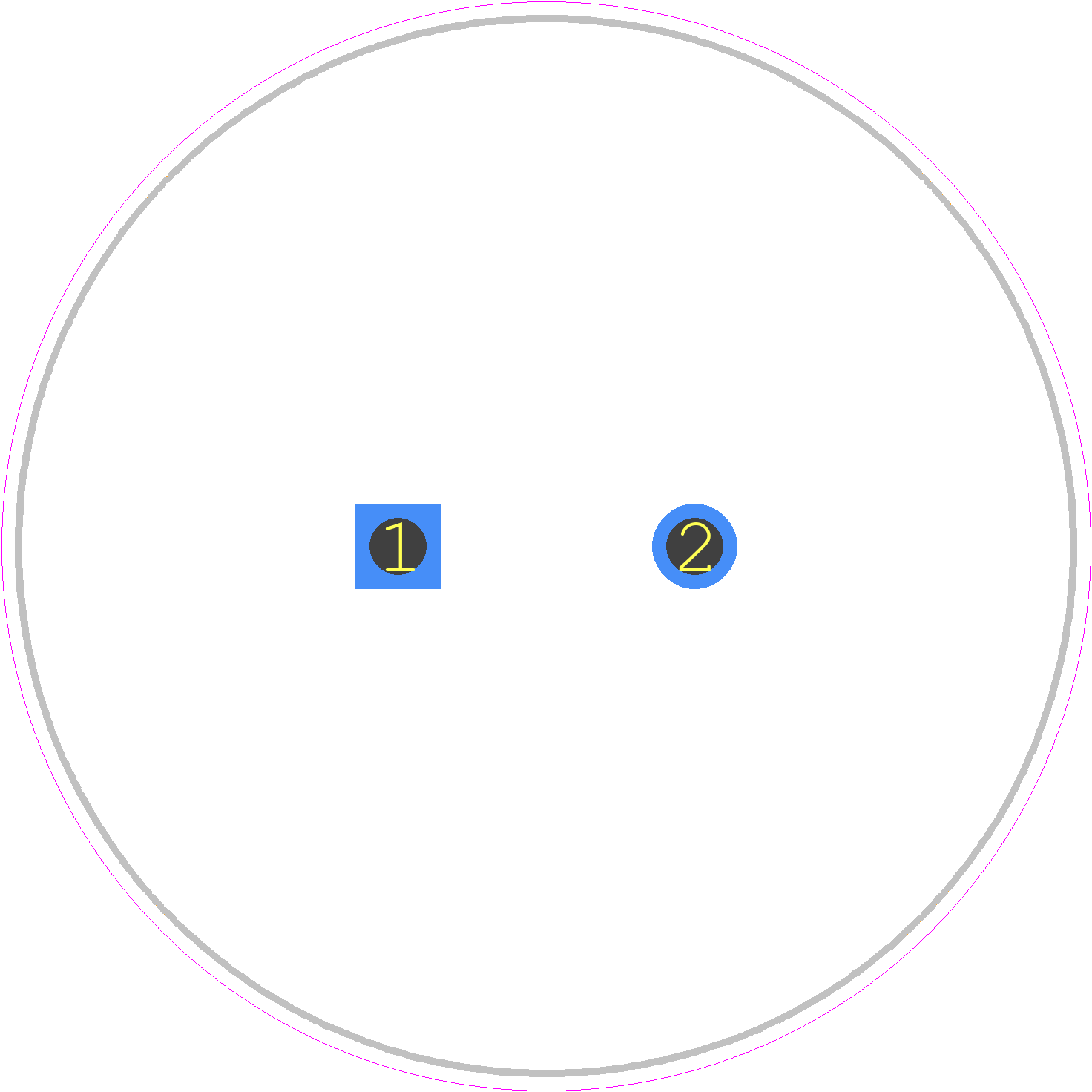

Use the download button to access the LGG2Z332MELC50 schematic symbol, PCB footprint, and 3D model.
