LGJ2C221MELZ - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 160volts 220uF 105c 22x20x10L/S

Download LGJ2C221MELZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGJ2C221MELZ - Nichicon - PCB symbol
click to zoom
PCB Footprints

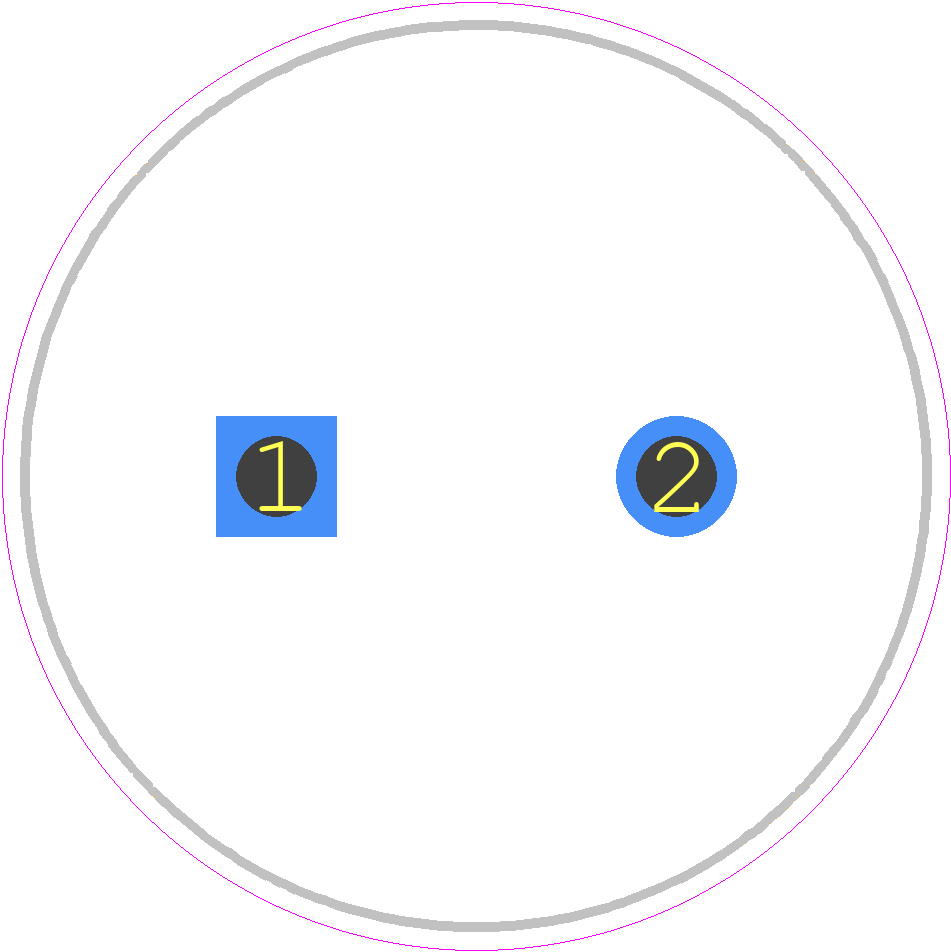

LGJ2C221MELZ - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22x20
click to zoom
3D Models
LGJ2C221MELZ - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 22x20
click to zoom

LGJ2C221MELZ Details

  • Manufacturer Part Number:

    LGJ2C221MELZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7.47

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.56285 mA

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    160 V

  • Ripple Current:

    810 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    SNAP-IN

LGJ2C221MELZ Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGJ2C221MELZ capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LGJ2C221MELZ capacitor is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • Yes, the LGJ2C221MELZ capacitor is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace systems.
  • The shelf life of the LGJ2C221MELZ capacitor is typically 2 years from the date of manufacture, but this can vary depending on storage conditions and handling practices.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGJ2C221MELZ Overview

Use the download button to access the LGJ2C221MELZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGJ2C, or try a keyword search, such as Aluminum Electrolytic Capacitors
