LGJ2C331MELB15 - Nichicon

Description: Nichicon 330μF Electrolytic Capacitor 160V dc Through Hole - LGJ2C331MELB15

Download LGJ2C331MELB15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGJ2C331MELB15 - Nichicon - PCB symbol
click to zoom
PCB Footprints

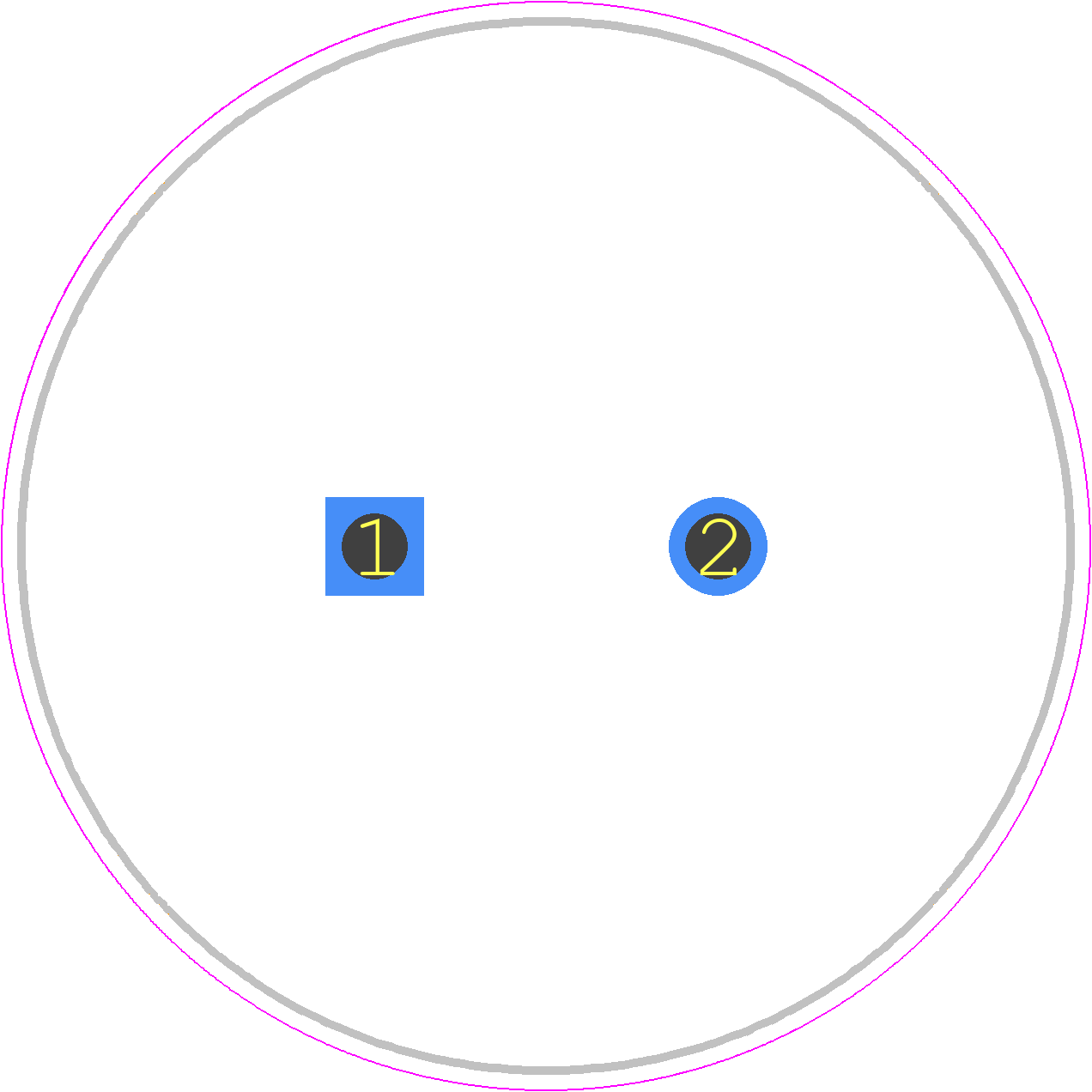

LGJ2C331MELB15 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - case code 30x15
click to zoom
3D Models
LGJ2C331MELB15 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - case code 30x15
click to zoom

LGJ2C331MELB15 Details

  • Manufacturer Part Number:

    LGJ2C331MELB15

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.68 mA

  • Length:

    15 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    160 V

  • Ripple Current:

    1000 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGJ2C331MELB15 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGJ2C331MELB15 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium above the allowed limits.
  • The ESR of the LGJ2C331MELB15 capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 0.02 ohms based on the capacitor's impedance characteristics.
  • Yes, the LGJ2C331MELB15 capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 1.5 mm amplitude, and 3 hours duration.
  • The shelf life of the LGJ2C331MELB15 capacitor is 2 years from the date of manufacture, as long as it is stored in a dry, cool place with a temperature range of -20°C to 40°C (-4°F to 104°F).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGJ2C331MELB15 Overview

Use the download button to access the LGJ2C331MELB15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGJ2C, or try a keyword search, such as Aluminum Electrolytic Capacitors
