The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LGJ2D151MELA15 is designed to withstand high-vibration environments. Nichicon Corporation conducts vibration testing according to IEC 60068-2-6, and the capacitor meets the requirements for vibration resistance.
The LGJ2D151MELA15 is designed to handle surge currents up to 100A (10μs) without damage. However, it's essential to ensure that the capacitor is properly sized and derated for the specific application to prevent overheating and damage.
Yes, the LGJ2D151MELA15 capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly and sustainable designs.
The shelf life of the LGJ2D151MELA15 capacitor is 2 years from the date of manufacture when stored in a dry, cool place (temperature range: -20°C to 40°C, humidity: 60% or less). It's essential to follow proper storage and handling procedures to maintain the capacitor's performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGJ2D151MELA15 Overview

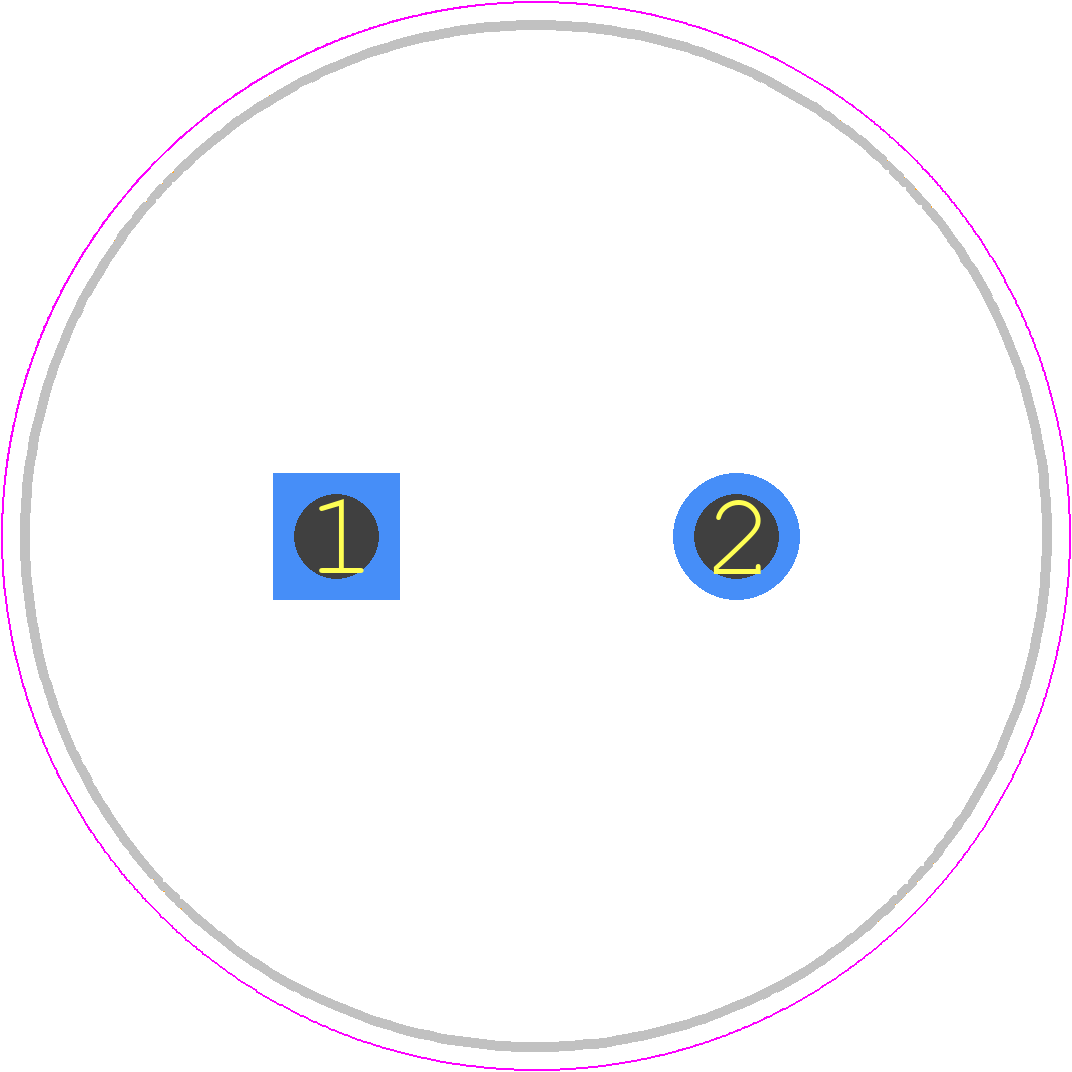

Use the download button to access the LGJ2D151MELA15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGJ2D,
or try a keyword search, such as Aluminum Electrolytic Capacitors
