LGJ2D471MELB20 - Nichicon

Description: Nichicon 470µF 200V dc Aluminium Electrolytic Capacitor, Through Hole 30 (Dia.) x 20mm +105°C 30mm 10mm

Download LGJ2D471MELB20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGJ2D471MELB20 - Nichicon - PCB symbol
click to zoom
PCB Footprints

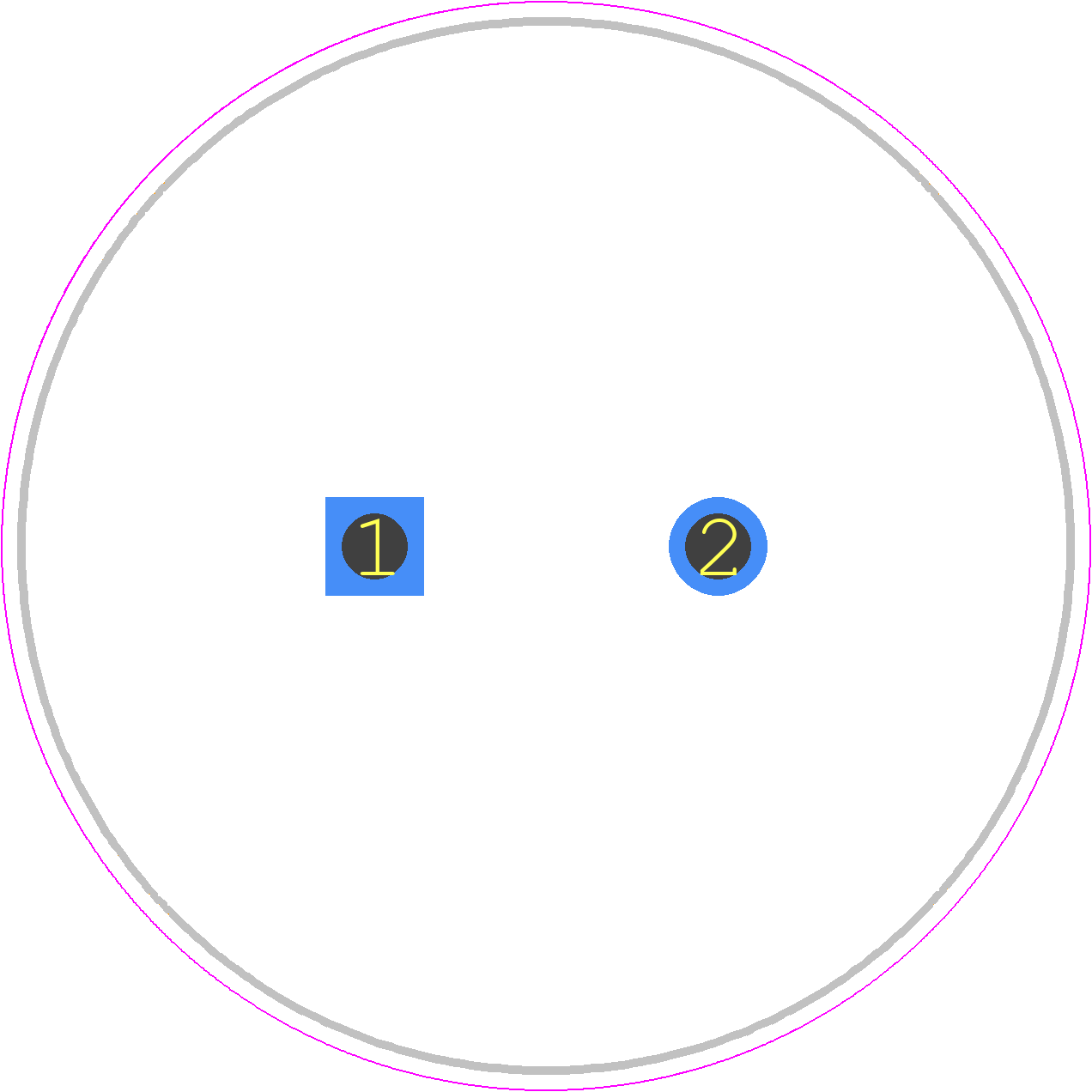

LGJ2D471MELB20 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30x20
click to zoom
3D Models
LGJ2D471MELB20 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 30x20
click to zoom

LGJ2D471MELB20 Details

  • Manufacturer Part Number:

    LGJ2D471MELB20

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.91 mA

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    200 V

  • Ripple Current:

    1120 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGJ2D471MELB20 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGJ2D471MELB20 is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, making it suitable for high-vibration applications.
  • Yes, the LGJ2D471MELB20 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The derating curve for the LGJ2D471MELB20 is typically provided by Nichicon Corporation upon request. It is recommended to consult with Nichicon or an authorized distributor for the specific derating curve.
  • Yes, the LGJ2D471MELB20 is designed to operate in humid environments, but it's recommended to follow the storage and handling guidelines provided by Nichicon Corporation to prevent moisture absorption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGJ2D471MELB20 Overview

Use the download button to access the LGJ2D471MELB20 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGJ2D, or try a keyword search, such as Aluminum Electrolytic Capacitors
