The recommended soldering temperature is 250°C to 260°C, and the recommended soldering time is 3 seconds to 5 seconds. However, it's always best to consult the manufacturer's soldering guidelines and follow industry-standard soldering practices.
The LGJ2E221MELA20 is a general-purpose aluminum electrolytic capacitor, and while it can be used in high-frequency applications, it may not be the best choice. For high-frequency applications, it's recommended to use capacitors specifically designed for high-frequency use, such as film capacitors or ceramic capacitors.
The LGJ2E221MELA20 has a maximum operating temperature of 105°C. While it can tolerate high temperatures, it's not recommended to use it in environments above 105°C. If you need a capacitor for high-temperature applications, consider using a capacitor with a higher temperature rating.
The ESR of the LGJ2E221MELA20 is not explicitly stated in the datasheet. However, Nichicon Corporation provides ESR data for their capacitors in their technical notes or application notes. You can contact Nichicon Corporation or consult their website for more information.
The LGJ2E221MELA20 is a general-purpose aluminum electrolytic capacitor, and it can be used in DC-DC converters or switching power supplies. However, it's essential to ensure that the capacitor meets the specific requirements of your application, including voltage, current, and ripple current ratings.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGJ2E221MELA20 Overview

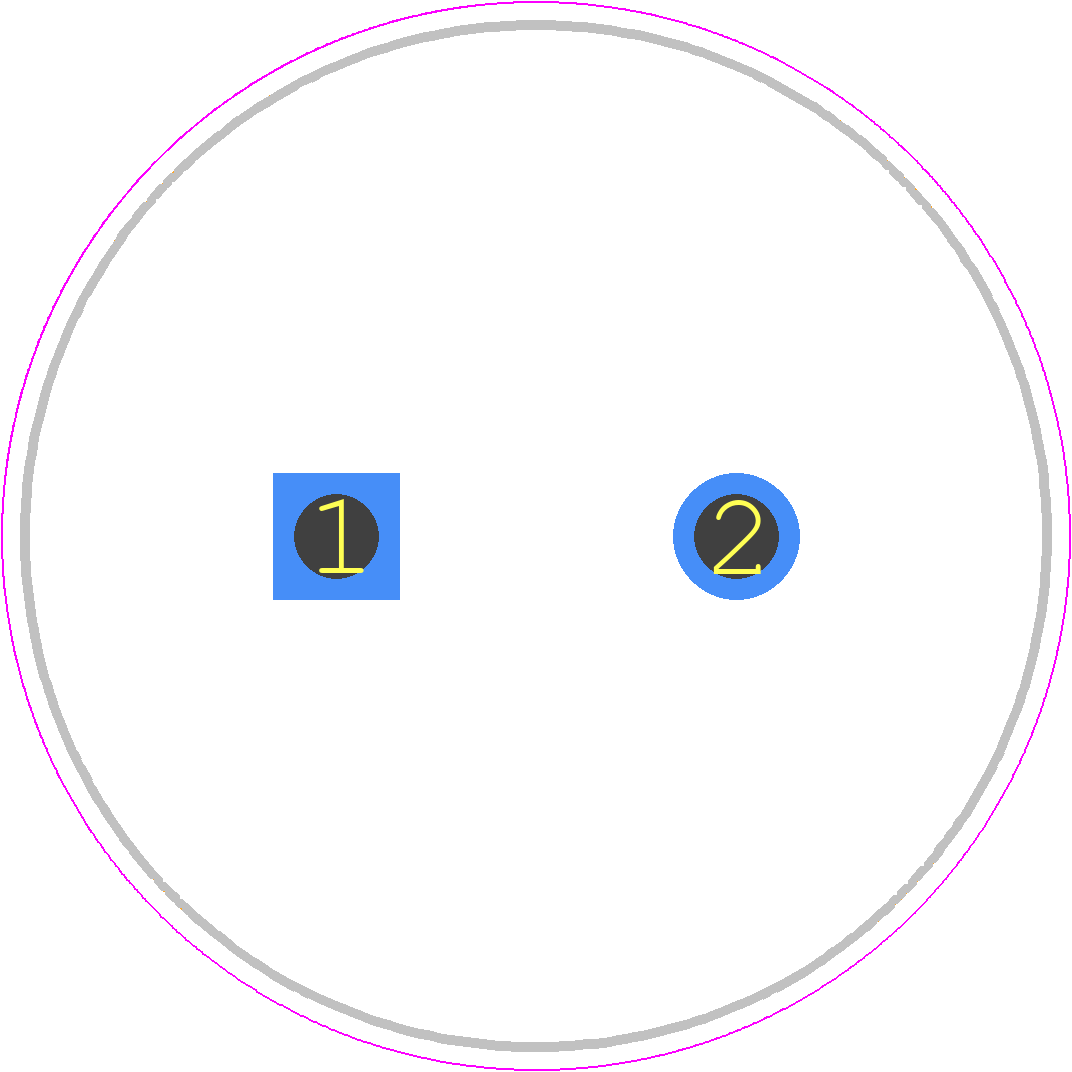

Use the download button to access the LGJ2E221MELA20 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGJ2E,
or try a keyword search, such as Aluminum Electrolytic Capacitors
