LGJ2G101MELA20 - Nichicon

Description: Nichicon Aluminium Electrolytic Capacitor 100μF 400V dc 25mm GJ Series, Through Hole Electrolytic, ±20%

Download LGJ2G101MELA20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGJ2G101MELA20 - Nichicon - PCB symbol
click to zoom
PCB Footprints

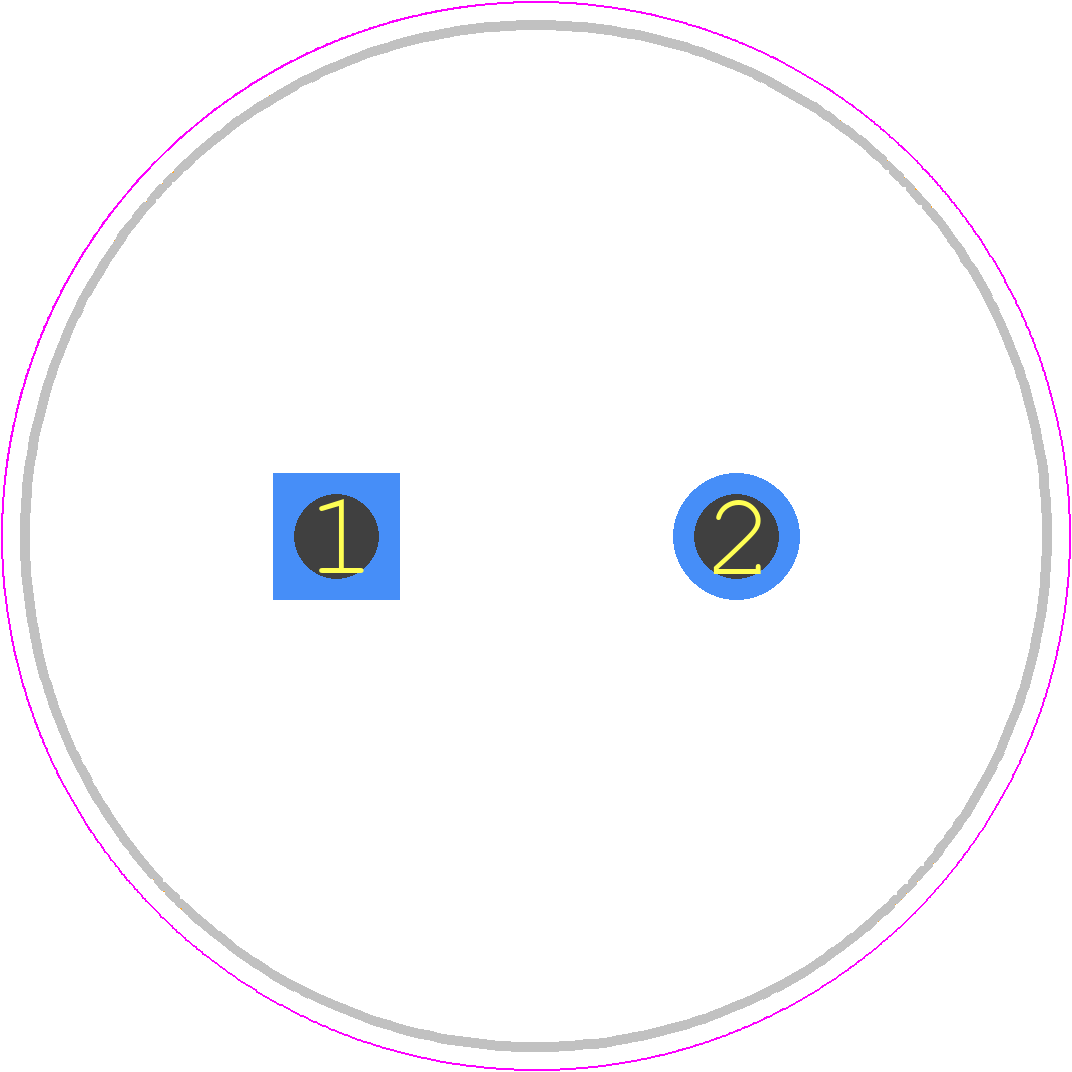

LGJ2G101MELA20 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGJ2G101MELA20
click to zoom
3D Models
LGJ2G101MELA20 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGJ2G101MELA20
click to zoom

LGJ2G101MELA20 Details

  • Manufacturer Part Number:

    LGJ2G101MELA20

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.6 mA

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    760 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGJ2G101MELA20 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGJ2G101MELA20 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LGJ2G101MELA20 capacitor is 0.02 ohms or less at 100 kHz and 20°C (68°F).
  • Yes, the LGJ2G101MELA20 capacitor is designed to withstand high-vibration environments and meets the vibration test requirements of IEC 60068-2-6.
  • The shelf life of the LGJ2G101MELA20 capacitor is 2 years from the date of manufacture, as long as it is stored in a dry, cool place with minimal humidity.
