The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
Yes, the LGL2G102MELC50 is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, making it suitable for high-vibration applications.
The LGL2G102MELC50 is rated for operation up to 125°C, with a derating of capacitance and impedance at higher temperatures. Consult the datasheet for specific derating curves.
Yes, the LGL2G102MELC50 is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
The recommended storage condition is in a dry, cool place, away from direct sunlight, with a temperature range of 5°C to 30°C and humidity below 70%.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGL2G102MELC50 Overview

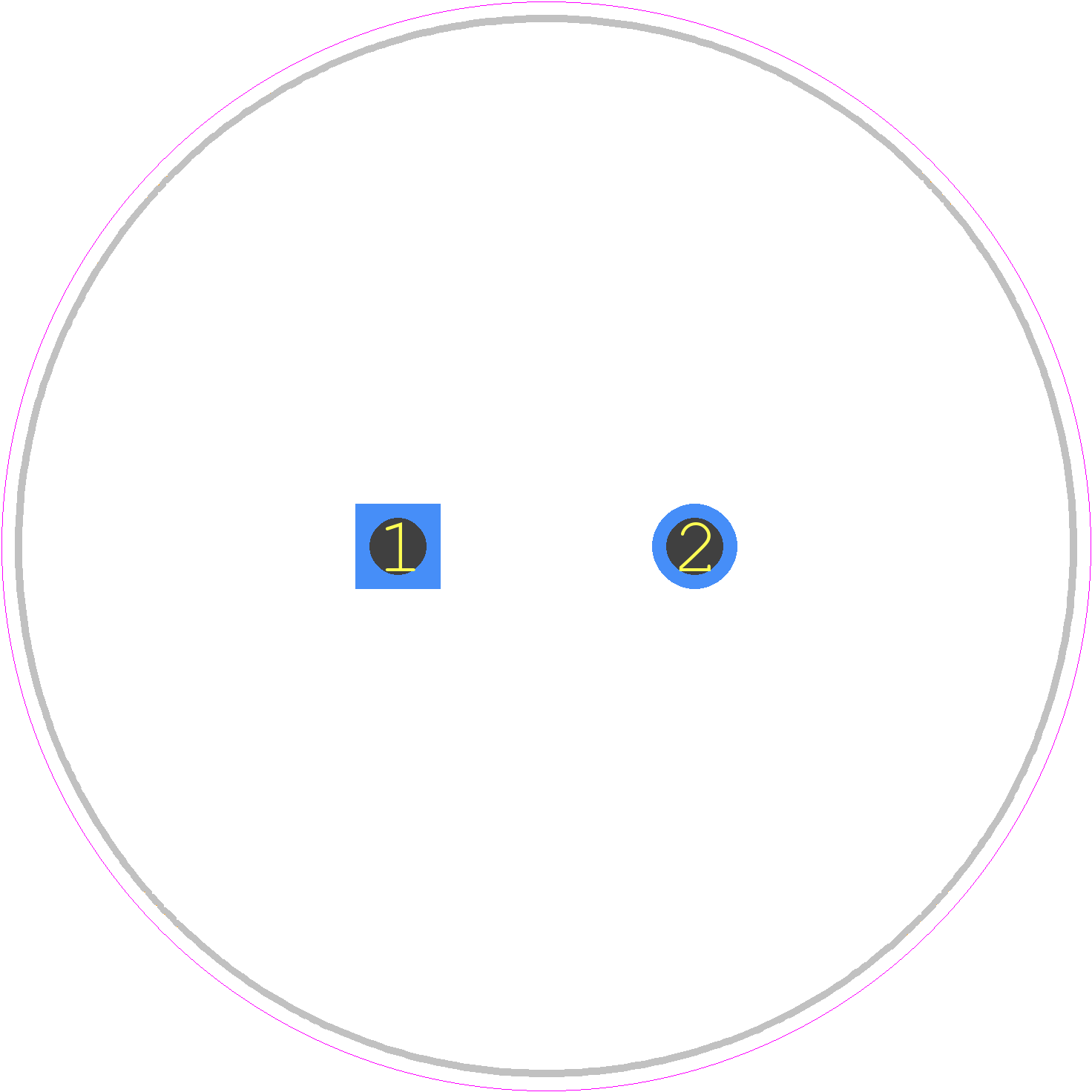

Use the download button to access the LGL2G102MELC50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGL2G,
or try a keyword search, such as Aluminum Electrolytic Capacitors
