LGL2G221MELA25 - Nichicon

Description: Nichicon 220μF 400 V dc Aluminium Electrolytic Capacitor, GL Series 2000h 25 (Dia.) x 25mm

Download LGL2G221MELA25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGL2G221MELA25 - Nichicon - PCB symbol
click to zoom
PCB Footprints

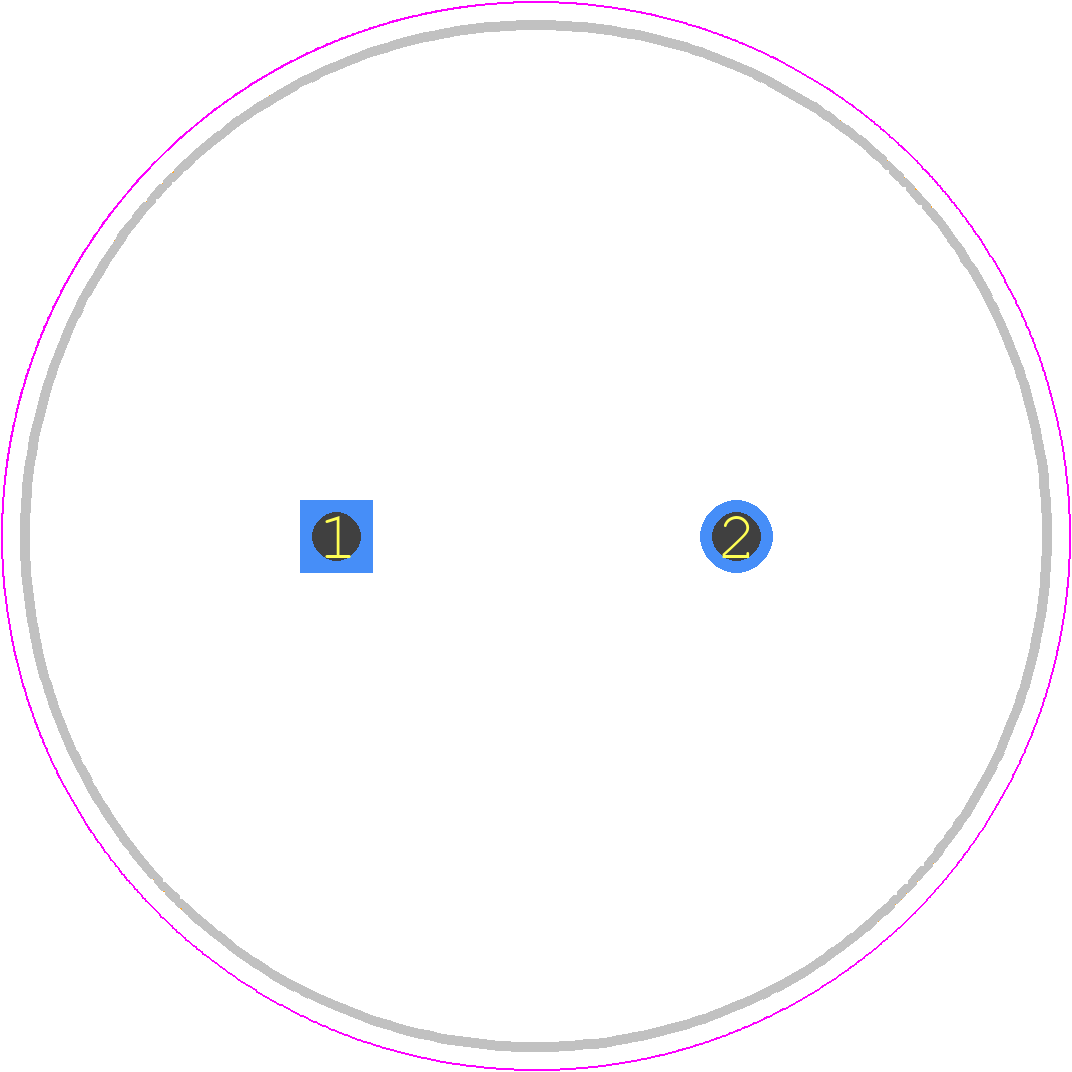

LGL2G221MELA25 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGL (25X25)
click to zoom
3D Models
LGL2G221MELA25 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGL (25X25)
click to zoom

LGL2G221MELA25 Details

  • Manufacturer Part Number:

    LGL2G221MELA25

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.88 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    780 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGL2G221MELA25 Frequently Asked Questions (FAQs)

  • The recommended land pattern for LGL2G221MELA25 can be found in the Nichicon Corporation's recommended land pattern document or by contacting their technical support. The land pattern should ensure good solderability and thermal dissipation.
  • While LGL2G221MELA25 is a reliable component, it's essential to evaluate its performance in a high-vibration environment. Nichicon Corporation recommends consulting their technical support or performing vibration testing to ensure the component meets the specific application requirements.
  • The ESR of LGL2G221MELA25 is specified in the datasheet. To handle ESR in your design, consider using impedance analysis tools or simulation software to ensure the capacitor's ESR does not affect the overall circuit performance.
  • Yes, LGL2G221MELA25 is compatible with lead-free soldering processes. Nichicon Corporation ensures that their components meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The maximum operating temperature range for LGL2G221MELA25 is specified in the datasheet as -55°C to +125°C. However, it's essential to consider the derating curves and temperature coefficients to ensure the component operates within the specified range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGL2G221MELA25 Overview

Use the download button to access the LGL2G221MELA25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGL2G, or try a keyword search, such as Aluminum Electrolytic Capacitors
