LGL2G331MELA35 - Nichicon

Description: Nichicon 330μF 400 V Aluminium Electrolytic Capacitor, GL Series 2000h 25 (Dia.) x 35mm

Download LGL2G331MELA35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGL2G331MELA35 - Nichicon - PCB symbol
click to zoom
PCB Footprints

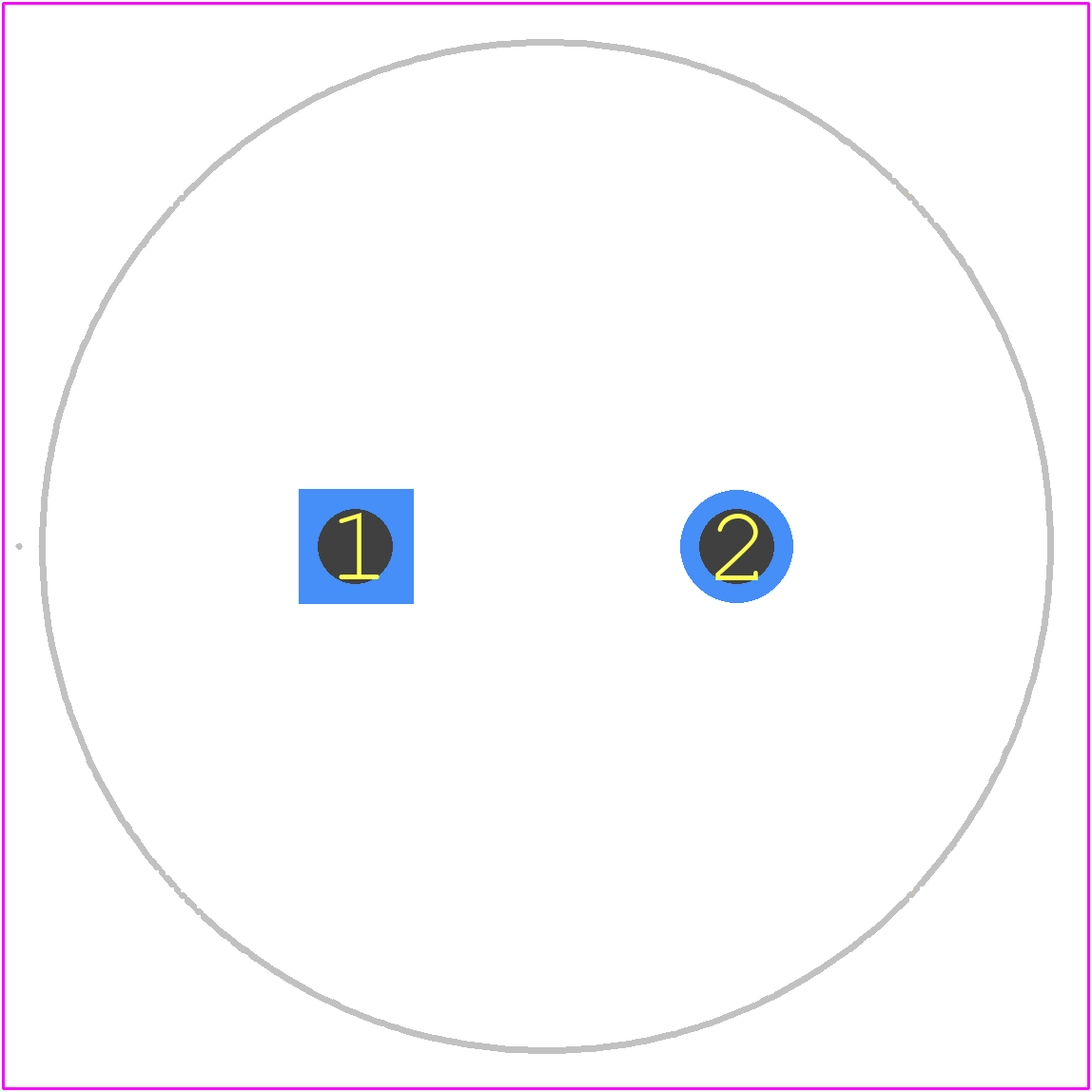

LGL2G331MELA35 - Nichicon PCB footprint - Other - Other - 25mm x 35mm_2025-1.2
click to zoom
3D Models
LGL2G331MELA35 - Nichicon - 3D model - Other - 25mm x 35mm_2025-1.2
click to zoom

LGL2G331MELA35 Details

  • Manufacturer Part Number:

    LGL2G331MELA35

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.08 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1070 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGL2G331MELA35 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for LGL2G331MELA35 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, LGL2G331MELA35 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium above the specified limits.
  • The ESR of LGL2G331MELA35 is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • While LGL2G331MELA35 has a rated operating temperature range of -40°C to 105°C, it can be used in high-temperature applications up to 125°C with derating. However, it's essential to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor's reliability and performance.
  • The MSL of LGL2G331MELA35 is MSL 2, which means it can be exposed to a maximum of 30°C and 60% relative humidity for 72 hours without being damaged.
