LGL2G331MELB25 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 400volts 330uF Ultra Small Sz

Download LGL2G331MELB25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGL2G331MELB25 - Nichicon - PCB symbol
click to zoom
PCB Footprints

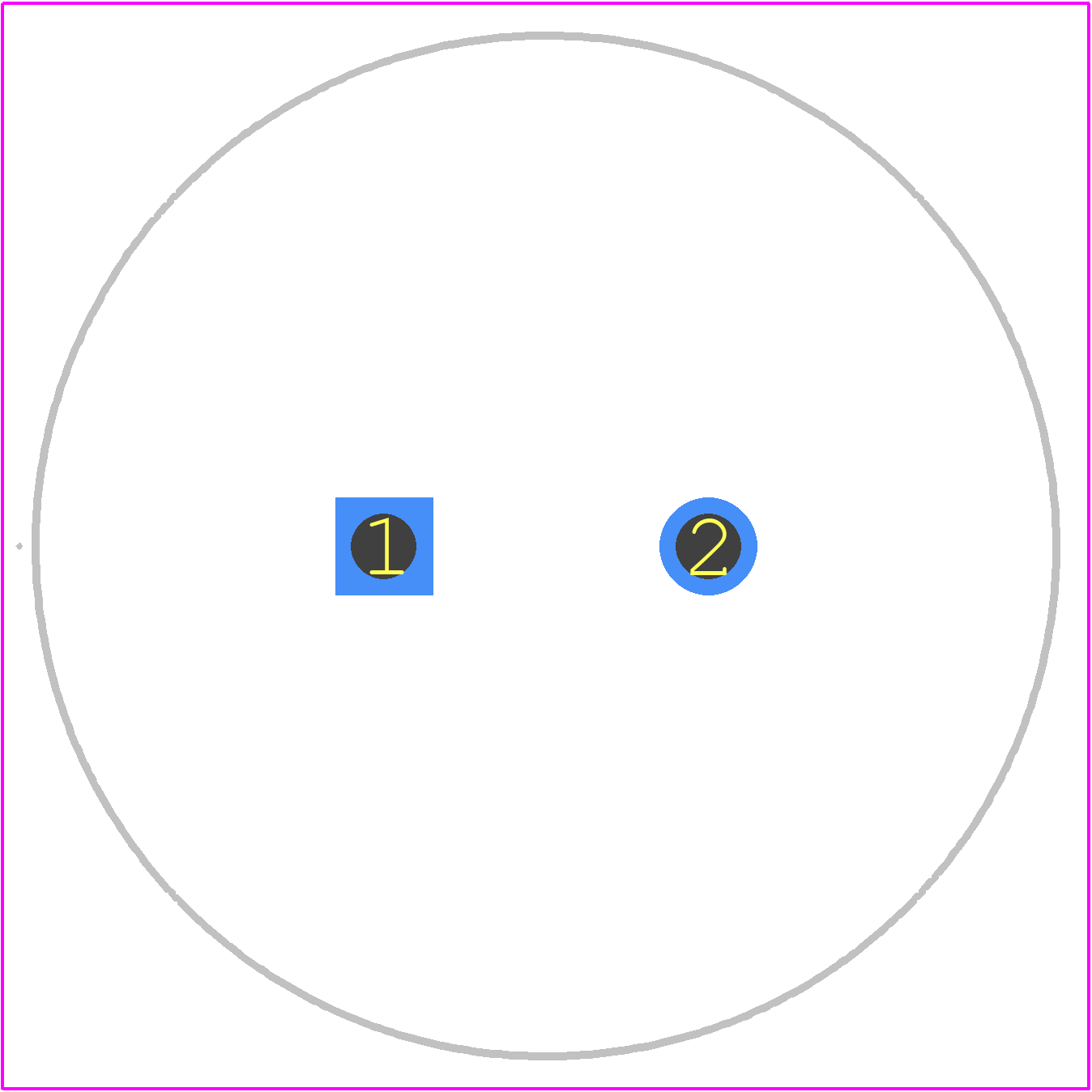

LGL2G331MELB25 - Nichicon PCB footprint - Other - Other - 30mm x 25mm
click to zoom
3D Models
LGL2G331MELB25 - Nichicon - 3D model - Other - 30mm x 25mm
click to zoom

LGL2G331MELB25 Details

  • Manufacturer Part Number:

    LGL2G331MELB25

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.08 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1040 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGL2G331MELB25 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGL2G331MELB25 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LGL2G331MELB25 capacitor is not explicitly stated in the datasheet, but it is typically around 10-20 mohms for this type of capacitor.
  • Yes, the LGL2G331MELB25 capacitor is designed to withstand high-vibration environments, but it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific vibration requirements of the application.
  • The shelf life of the LGL2G331MELB25 capacitor is typically 2 years from the date of manufacture, but it's recommended to follow proper storage and handling procedures to ensure the capacitor remains within its specifications.
