LGL2G681MELB45 - Nichicon

Description: Nichicon 680μF 400 V Aluminium Electrolytic Capacitor, GL Series 2000h 30 (Dia.) x 45mm

Download LGL2G681MELB45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGL2G681MELB45 - Nichicon - PCB symbol
click to zoom
PCB Footprints

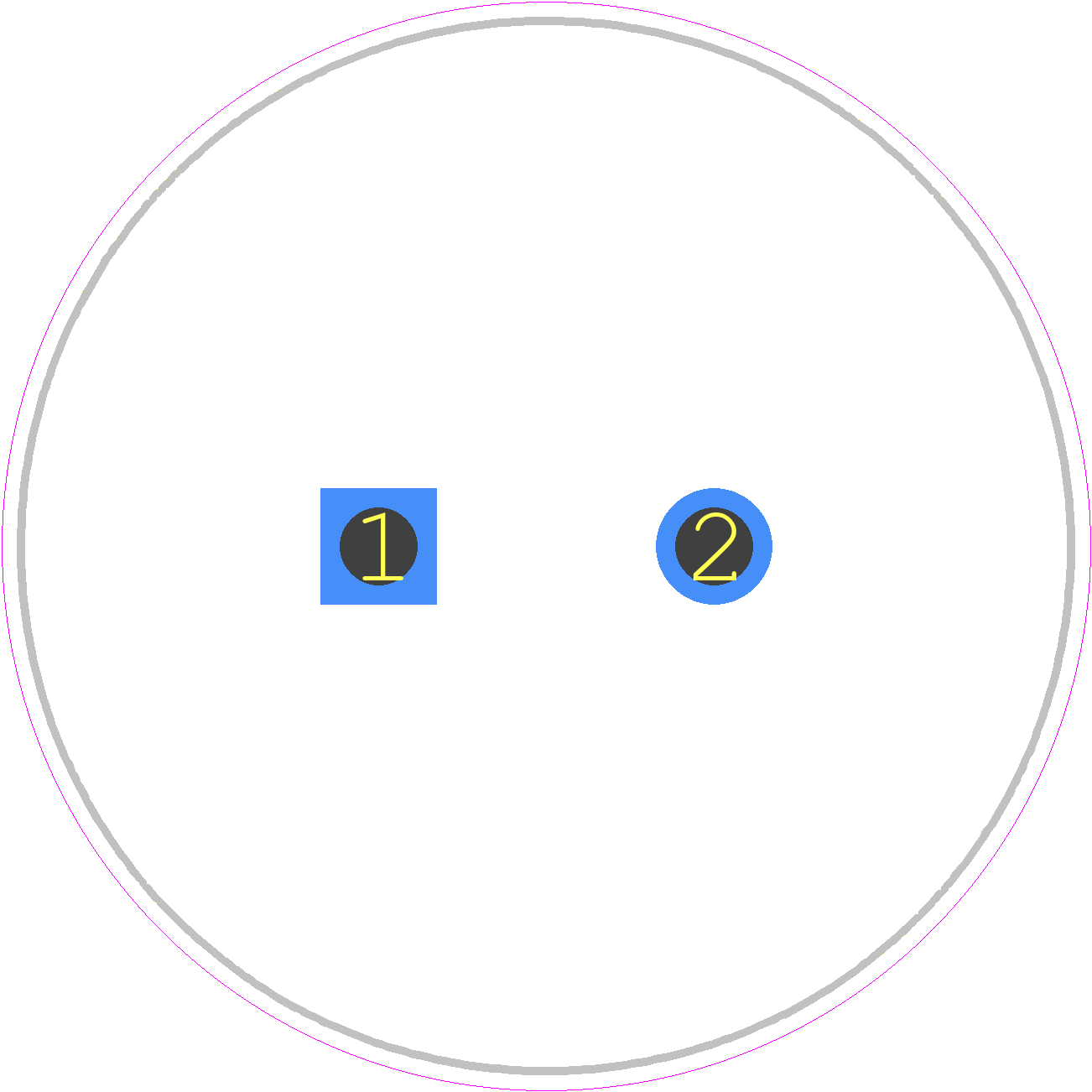

LGL2G681MELB45 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGL (30x40)
click to zoom
3D Models
LGL2G681MELB45 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGL (30x40)
click to zoom

LGL2G681MELB45 Details

  • Manufacturer Part Number:

    LGL2G681MELB45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    680 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.56 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1740 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGL2G681MELB45 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for LGL2G681MELB45 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the LGL2G681MELB45 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The ESR of the LGL2G681MELB45 capacitor is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and temperature.
  • Yes, the LGL2G681MELB45 capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 1.5 mm amplitude.
  • The shelf life of the LGL2G681MELB45 capacitor is typically 2 years from the date of manufacture, but this can vary depending on storage conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGL2G681MELB45 Overview

Use the download button to access the LGL2G681MELB45 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGL2G, or try a keyword search, such as Aluminum Electrolytic Capacitors
