The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, and 240°C (464°F) for 20 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LGL2W561MELB50 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) above the specified limits.
The ESR of the LGL2W561MELB50 capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mohms at 100 kHz, based on similar capacitors from Nichicon Corporation.
While the LGL2W561MELB50 capacitor is designed to be reliable, it's not specifically designed for high-vibration applications. If you need a capacitor for a high-vibration environment, you may want to consider a capacitor with a more robust design, such as those with a specialized vibration-resistant construction.
The shelf life of the LGL2W561MELB50 capacitor is typically 2 years from the date of manufacture, as long as it's stored in a dry, cool place, away from direct sunlight and moisture. However, it's recommended to check the capacitor's performance and integrity before using it in a production environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGL2W561MELB50 Overview

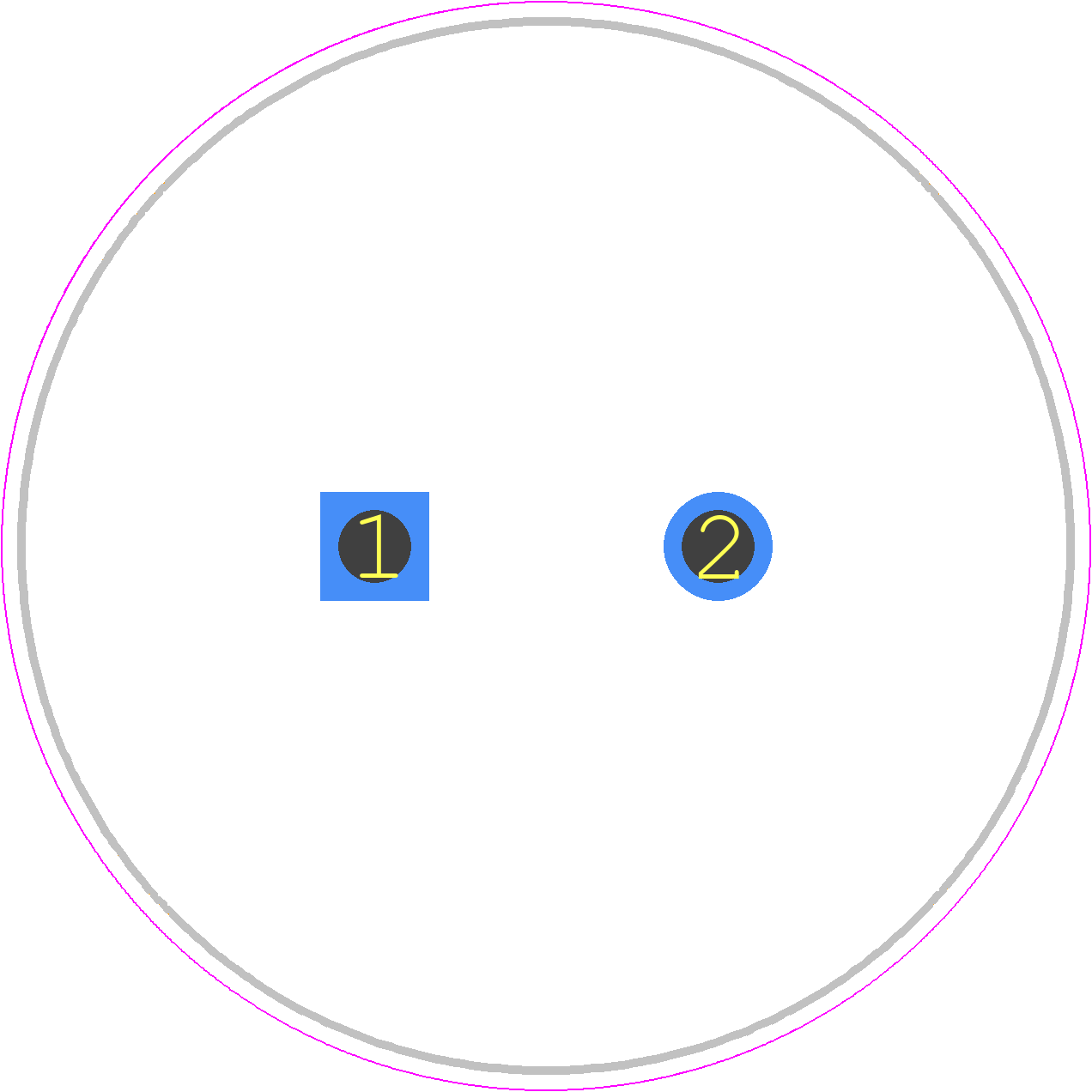

Use the download button to access the LGL2W561MELB50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGL2W,
or try a keyword search, such as Aluminum Electrolytic Capacitors
