The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds to 5 seconds. However, it's always best to consult the manufacturer's soldering guidelines and follow the industry-standard soldering profiles.
Yes, the LGL2W681MELC45 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) above the specified limits.
The ESR of the LGL2W681MELC45 capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mohms based on the capacitor's size, material, and frequency characteristics. However, it's recommended to consult the manufacturer or a reliable source for the exact ESR value.
The LGL2W681MELC45 capacitor is designed for general-purpose use and may not be suitable for high-vibration or high-shock applications. Nichicon Corporation offers specialized capacitors with enhanced vibration and shock resistance, such as the NV series, which may be more suitable for such applications.
The MSL of the LGL2W681MELC45 capacitor is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking or special handling before soldering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGL2W681MELC45 Overview

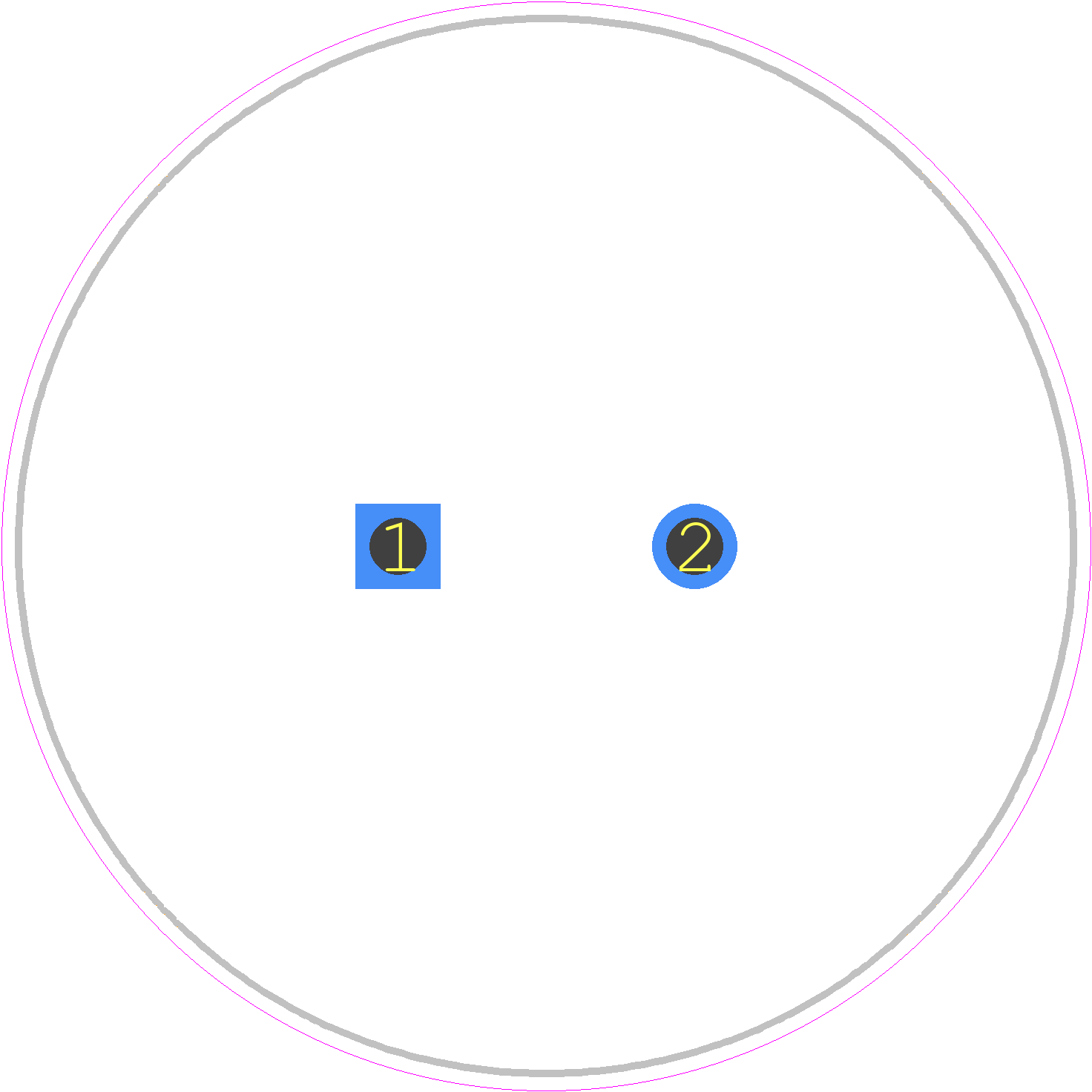

Use the download button to access the LGL2W681MELC45 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGL2W,
or try a keyword search, such as Aluminum Electrolytic Capacitors
