LGL2W821MELC50 - Nichicon

Description: Nichicon 820μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 35 (Dia.) x 50mm +105°C 35mm 10mm

Download LGL2W821MELC50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGL2W821MELC50 - Nichicon - PCB symbol
click to zoom
PCB Footprints

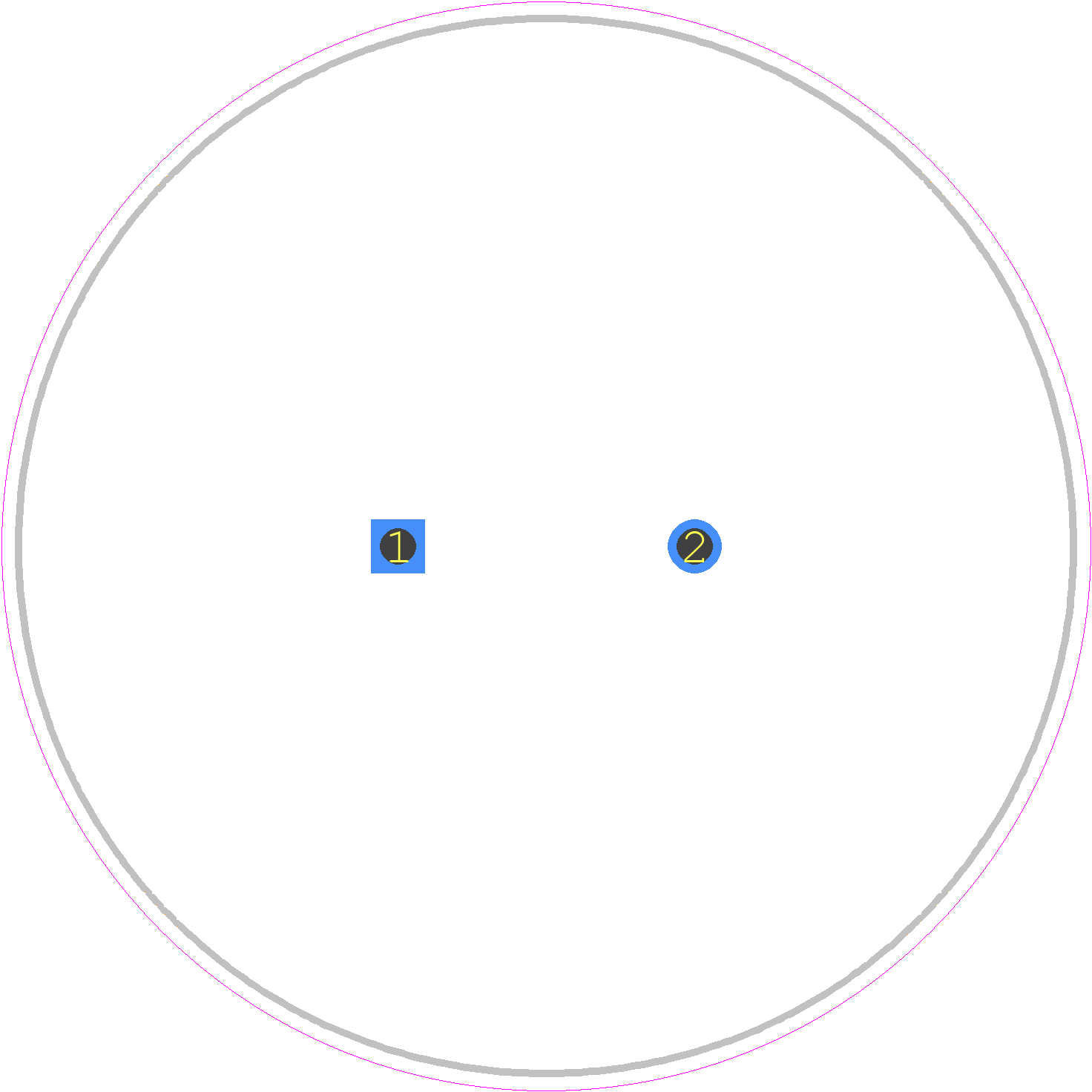

LGL2W821MELC50 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGL2W821MELC50
click to zoom
3D Models
LGL2W821MELC50 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGL2W821MELC50
click to zoom

LGL2W821MELC50 Details

  • Manufacturer Part Number:

    LGL2W821MELC50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    820 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.82 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1930 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.20

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGL2W821MELC50 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGL2W821MELC50 is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, but it's recommended to consult with Nichicon Corporation for specific vibration requirements.
  • The LGL2W821MELC50 is designed to reduce high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency, making it suitable for high-frequency applications.
  • Yes, the LGL2W821MELC50 meets the requirements for automotive applications, including AEC-Q200 qualification, but it's recommended to consult with Nichicon Corporation for specific automotive requirements.
  • The shelf life of the LGL2W821MELC50 is 2 years from the date of manufacture, but it's recommended to store the capacitors in a cool, dry place, away from direct sunlight and moisture.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGL2W821MELC50 Overview

Use the download button to access the LGL2W821MELC50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGL2W, or try a keyword search, such as Aluminum Electrolytic Capacitors
