The recommended PCB layout for LGM2W181MELA25 is to place the capacitor as close as possible to the IC, with the shortest possible leads to minimize inductance and ensure optimal performance. A ground plane underneath the capacitor is also recommended to reduce noise and electromagnetic interference.
The ESR of LGM2W181MELA25 is typically around 0.02Ω. To handle ESR, ensure that the capacitor is used within its specified frequency range and that the circuit is designed to minimize the effects of ESR on the overall performance. Additionally, consider using a capacitor with a lower ESR if high-frequency performance is critical.
The derating curve for LGM2W181MELA25 is typically provided by Nichicon Corporation upon request. The derating curve shows the reduction in capacitance value as a function of temperature, voltage, and frequency. It is essential to follow the derating curve to ensure the capacitor operates within its specified ratings and to prevent premature failure.
LGM2W181MELA25 is designed to withstand moderate vibration levels. However, if the application involves extreme vibration, it is recommended to consult with Nichicon Corporation or perform additional testing to ensure the capacitor's reliability and performance.
Store LGM2W181MELA25 in a dry, cool place away from direct sunlight and moisture. Handle the capacitor by the body, avoiding touching the leads or terminals to prevent damage from electrostatic discharge. Use anti-static packaging and follow proper handling procedures to prevent damage during transportation and storage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGM2W181MELA25 Overview

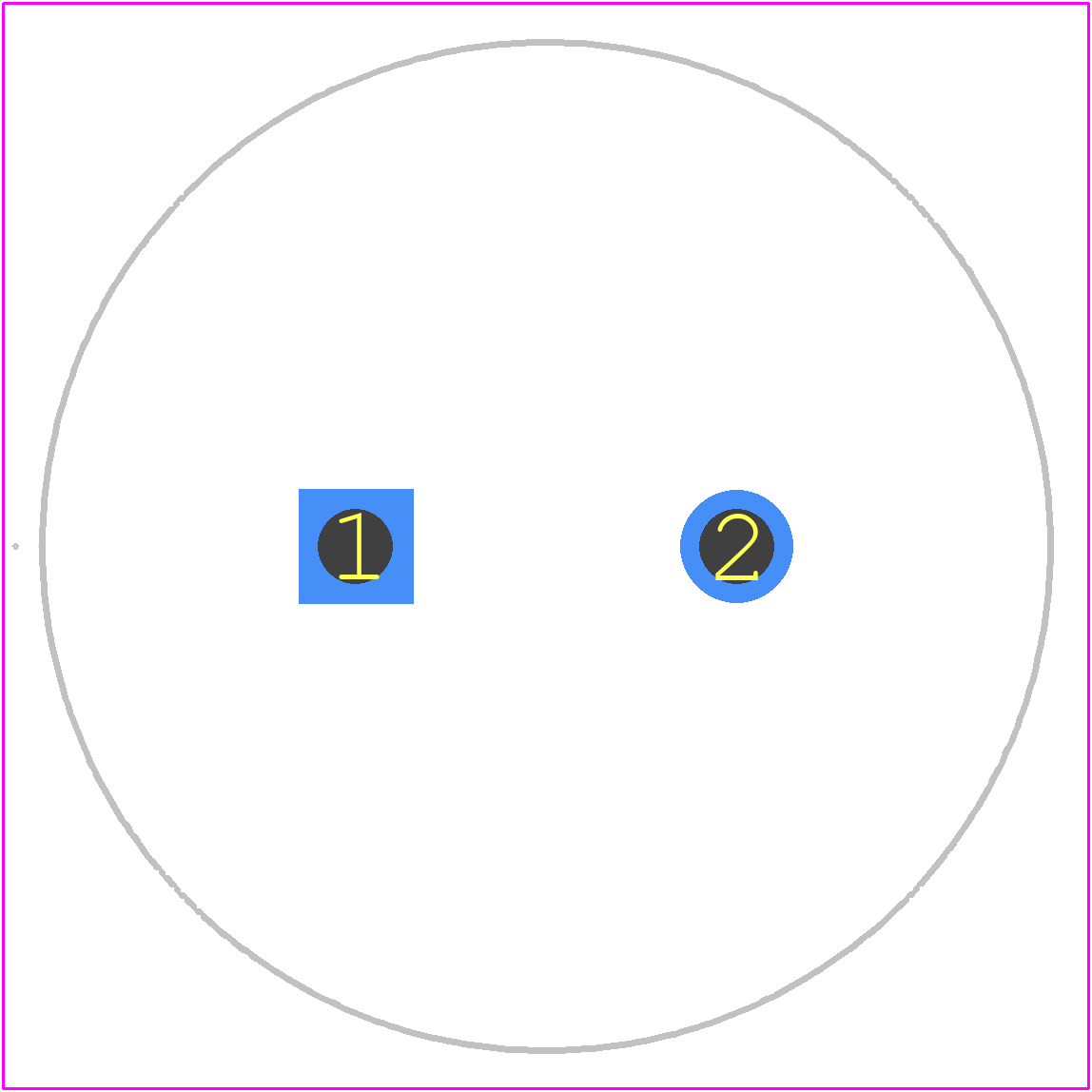

Use the download button to access the LGM2W181MELA25 schematic symbol, PCB footprint, and 3D model.
