LGN2E821MELB35 - Nichicon

Description: 820 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

Download LGN2E821MELB35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGN2E821MELB35 - Nichicon - PCB symbol
click to zoom
PCB Footprints

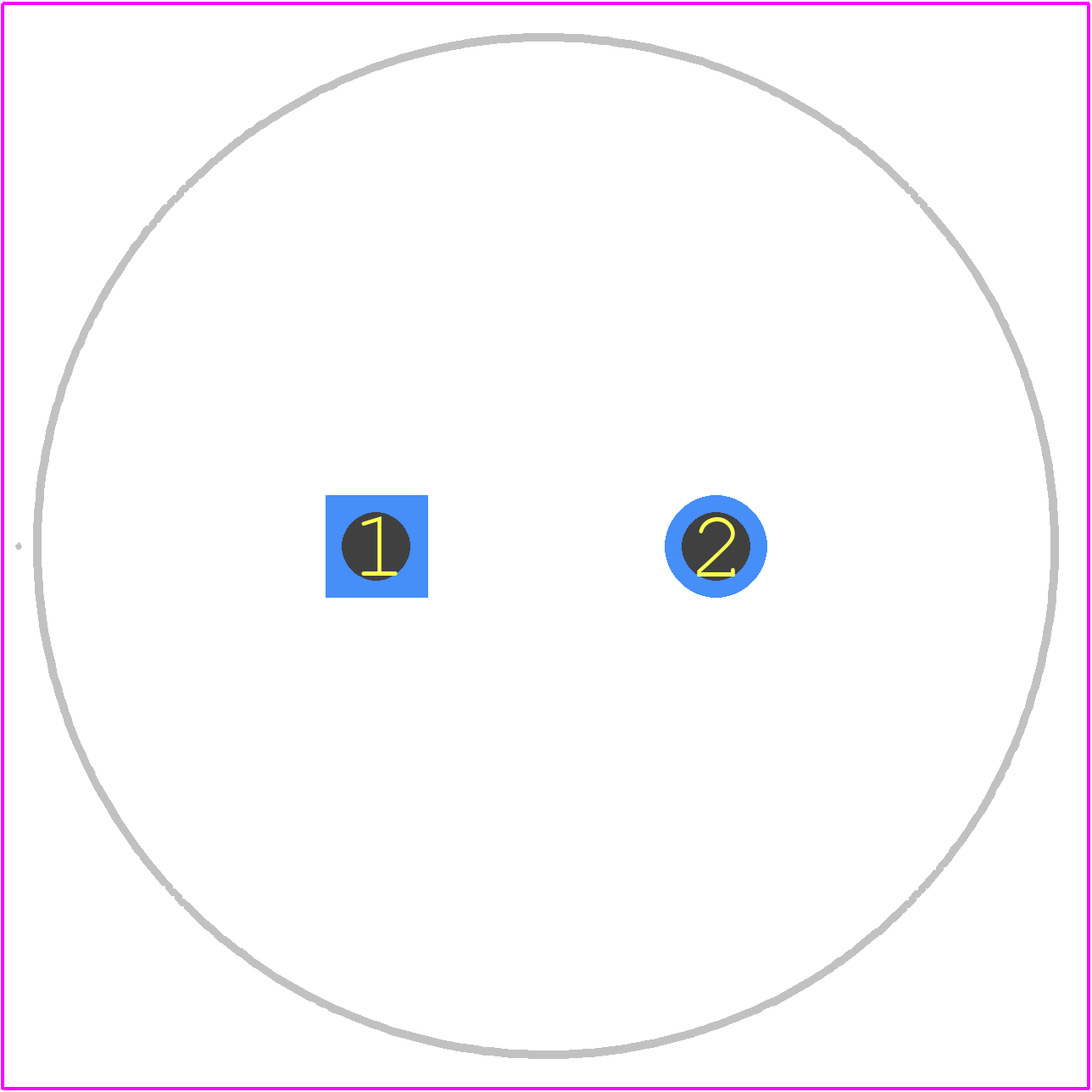

LGN2E821MELB35 - Nichicon PCB footprint - Other - Other - 30mm × 35mm
click to zoom
3D Models
LGN2E821MELB35 - Nichicon - 3D model - Other - 30mm × 35mm
click to zoom

LGN2E821MELB35 Details

  • Manufacturer Part Number:

    LGN2E821MELB35

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    820 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.35 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    2000 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGN2E821MELB35 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGN2E821MELB35 is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress, such as in automotive or industrial control systems.
  • The LGN2E821MELB35 is designed to have low equivalent series resistance (ESR) and high resonance frequency, making it suitable for high-frequency noise filtering applications.
  • Yes, the LGN2E821MELB35 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The shelf life of the LGN2E821MELB35 capacitor is 2 years from the date of manufacture, as long as it is stored in a dry, cool place with minimal humidity and no exposure to direct sunlight.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGN2E821MELB35 Overview

Use the download button to access the LGN2E821MELB35 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGN2E, or try a keyword search, such as Aluminum Electrolytic Capacitors
