The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
Yes, the LGN2H101MELA30 is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress. However, it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and fixation.
The LGN2H101MELA30 is designed to have low equivalent series resistance (ESR) and high resonance frequency, making it suitable for high-frequency noise filtering applications. However, the actual performance may vary depending on the specific application and circuit design.
Yes, the LGN2H101MELA30 capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly and sustainable designs.
The shelf life of the LGN2H101MELA30 capacitor is typically 2 years from the date of manufacture, but it's recommended to follow the manufacturer's storage guidelines and check the capacitor's performance before using it in a production environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGN2H101MELA30 Overview

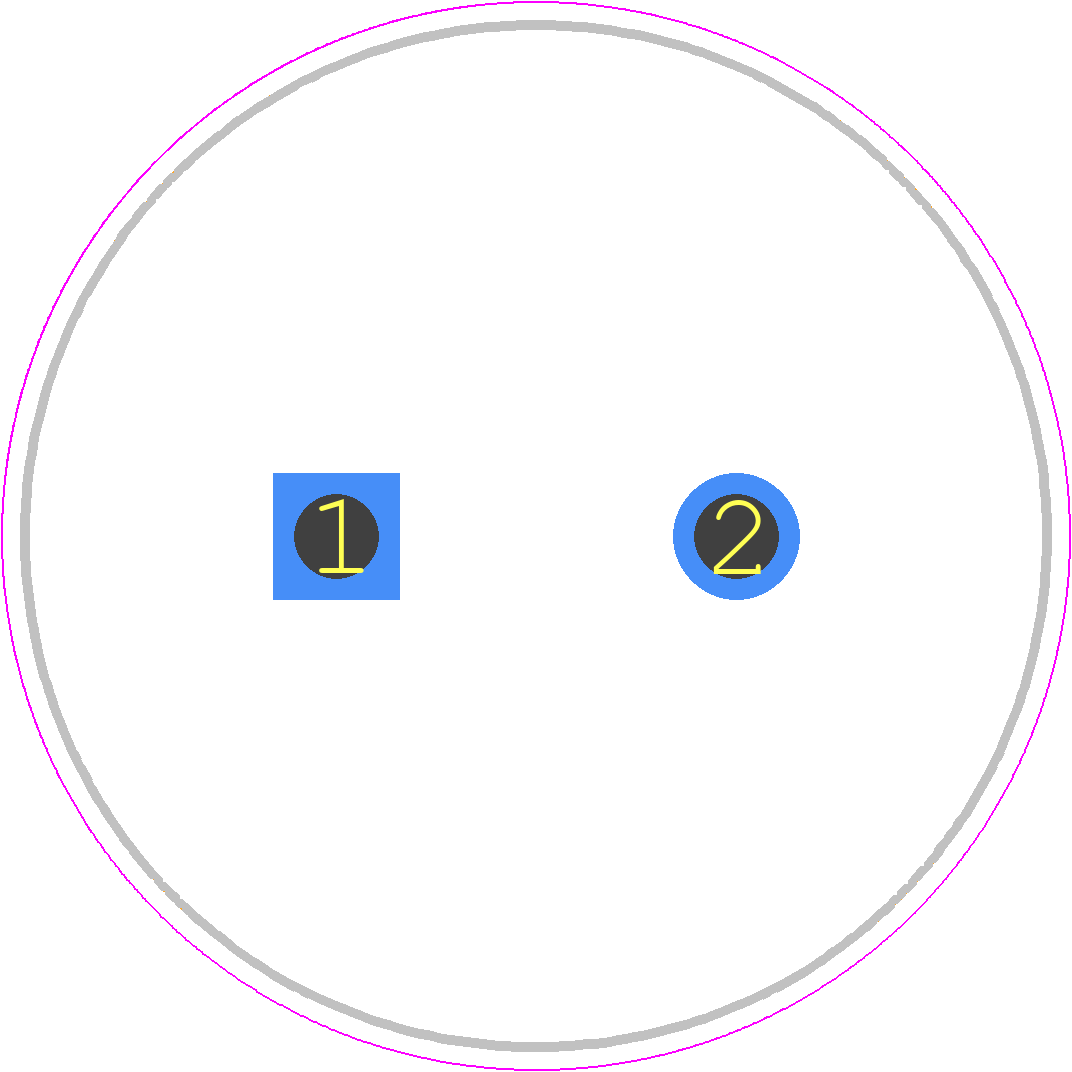

Use the download button to access the LGN2H101MELA30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGN2H,
or try a keyword search, such as Aluminum Electrolytic Capacitors
