The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, and 240°C (464°F) for 20 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LGN2V331MELZ45 is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude. However, it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The ESR of the LGN2V331MELZ45 is 0.02Ω or less at 100kHz, which is relatively low. This means the capacitor can handle high-frequency switching applications with minimal energy loss. However, it's essential to consider the ESR in your circuit design to ensure optimal performance.
The capacitor is rated for operation up to 125°C (257°F), but its capacitance and ESR may degrade at higher temperatures. It's recommended to derate the capacitor's specifications according to the temperature derating curve provided in the datasheet or consult with Nichicon Corporation for specific guidance.
The LGN2V331MELZ45 has a moisture resistance rating of 85°C, 85% RH, 1000 hours. While it can withstand some humidity, it's not recommended for use in extremely humid or moist environments. If your application requires operation in such conditions, consider using a capacitor with a higher moisture resistance rating or taking additional precautions to protect the capacitor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGN2V331MELZ45 Overview

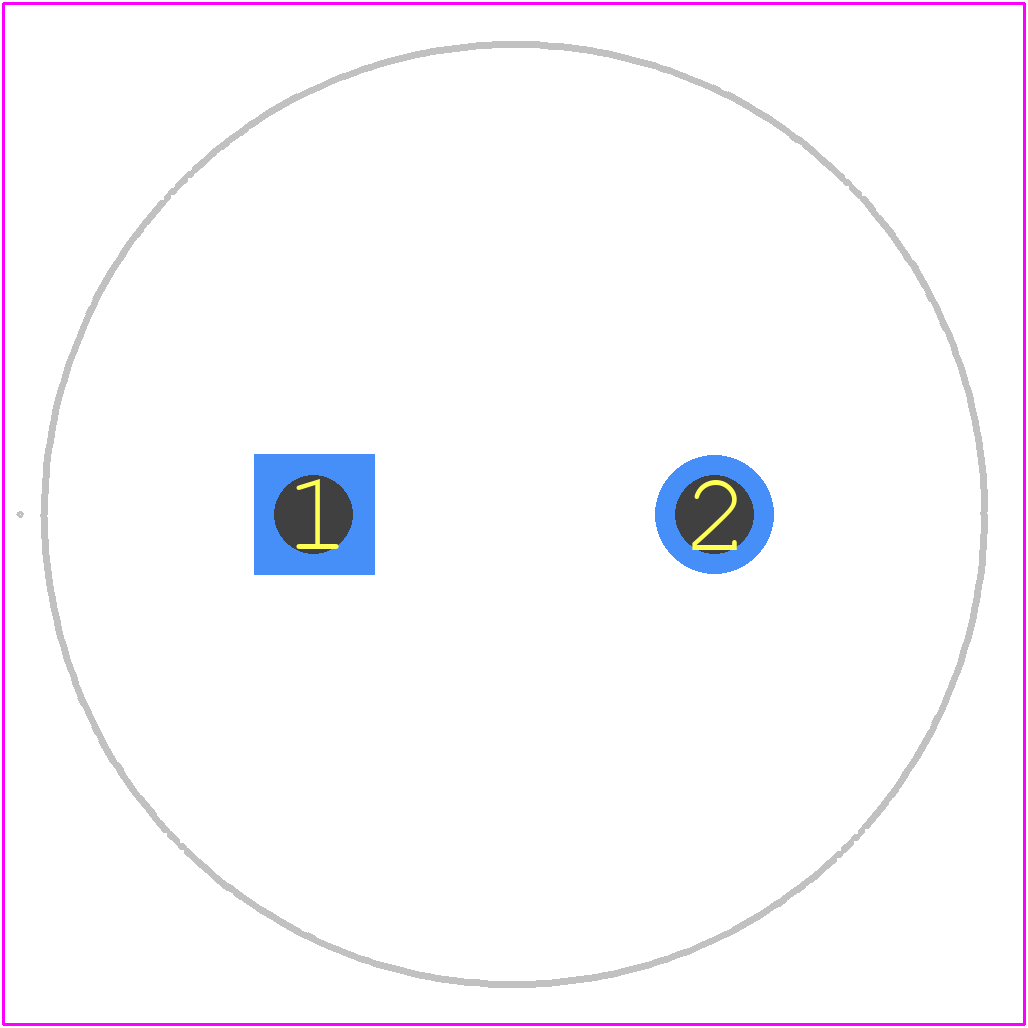

Use the download button to access the LGN2V331MELZ45 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGN2V,
or try a keyword search, such as Aluminum Electrolytic Capacitors
