The recommended PCB layout for LGN2X101MELB40 involves placing the capacitor close to the power source, using wide traces for power and ground, and minimizing the distance between the capacitor and the power pins of the IC. Additionally, a solid ground plane and a low-ESR layout can help reduce noise and improve performance.
The LGN2X101MELB40 is designed to handle high-frequency noise and ripple through its low equivalent series resistance (ESR) and high-frequency impedance characteristics. The capacitor's internal construction and materials are optimized to reduce noise and ripple, making it suitable for high-frequency applications.
The maximum operating temperature range for LGN2X101MELB40 is -55°C to +125°C, making it suitable for a wide range of applications, including automotive, industrial, and consumer electronics.
Yes, the LGN2X101MELB40 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly and sustainable designs.
The recommended derating for LGN2X101MELB40 in high-temperature applications is to reduce the maximum operating voltage by 1.25% for every 1°C above 85°C. This ensures reliable operation and prevents overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGN2X101MELB40 Overview

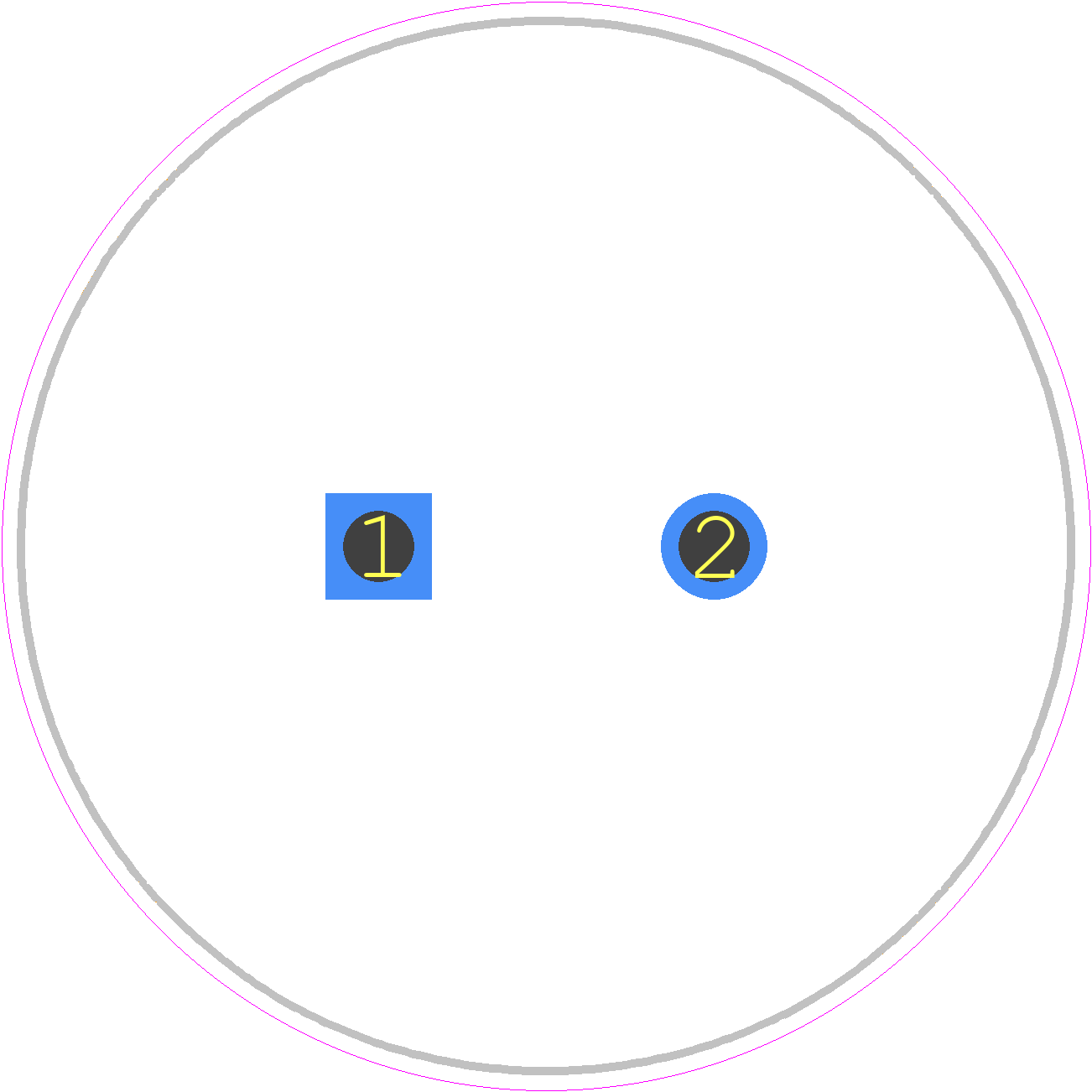

Use the download button to access the LGN2X101MELB40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGN2X,
or try a keyword search, such as Aluminum Electrolytic Capacitors
