LGN2X101MELC30 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 600V 100UF 20%

Download LGN2X101MELC30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGN2X101MELC30 - Nichicon - PCB symbol
click to zoom
PCB Footprints

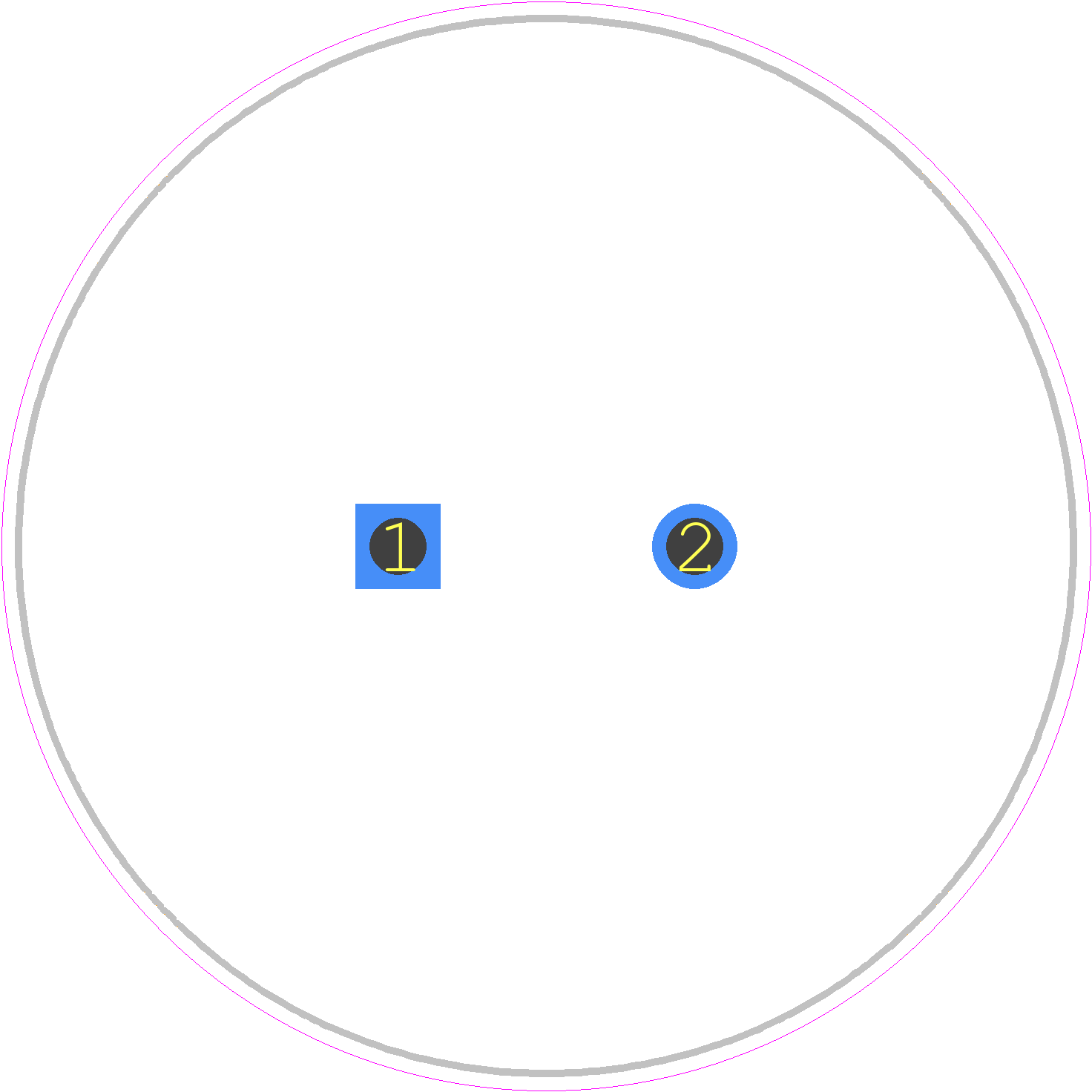

LGN2X101MELC30 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - case code 35x30
click to zoom
3D Models
LGN2X101MELC30 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - case code 35x30
click to zoom

LGN2X101MELC30 Details

  • Manufacturer Part Number:

    LGN2X101MELC30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Leakage Current:

    0.73 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    600 V

  • Ripple Current:

    670 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGN2X101MELC30 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGN2X101MELC30 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium.
  • The ESR of the LGN2X101MELC30 capacitor is typically around 50-70 mΩ at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • Yes, the LGN2X101MELC30 capacitor is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace systems.
  • The shelf life of the LGN2X101MELC30 capacitor is typically 2 years from the date of manufacture, but this can vary depending on storage conditions and handling practices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGN2X101MELC30 Overview

Use the download button to access the LGN2X101MELC30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGN2X, or try a keyword search, such as Aluminum Electrolytic Capacitors
