LGN2X121MELC35 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 600V 120UF 20%

Download LGN2X121MELC35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGN2X121MELC35 - Nichicon - PCB symbol
click to zoom
PCB Footprints

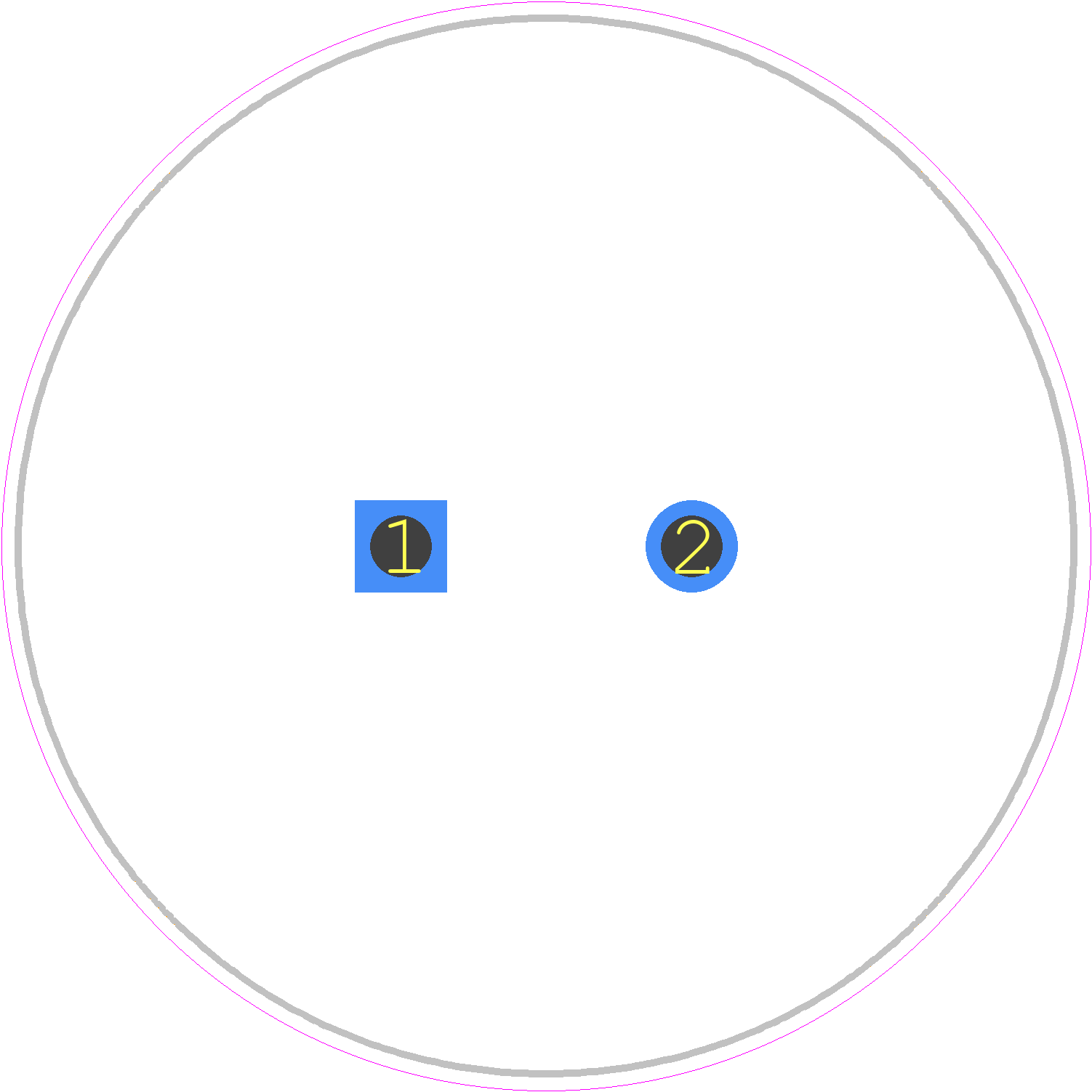

LGN2X121MELC35 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGN (35 x 35)
click to zoom
3D Models
LGN2X121MELC35 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGN (35 x 35)
click to zoom

LGN2X121MELC35 Details

  • Manufacturer Part Number:

    LGN2X121MELC35

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    120 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Leakage Current:

    0.8 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    600 V

  • Ripple Current:

    740 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGN2X121MELC35 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGN2X121MELC35 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The derating curve for the LGN2X121MELC35 capacitor can be obtained from Nichicon Corporation's application notes or by contacting their technical support. The derating curve provides guidance on reducing the capacitor's voltage rating at high temperatures to ensure reliable operation.
  • Yes, the LGN2X121MELC35 capacitor is designed to withstand high-vibration environments. However, it's recommended to consult with Nichicon Corporation's technical support to determine the capacitor's suitability for specific vibration requirements.
  • The ESR of the LGN2X121MELC35 capacitor is typically around 10-20 mohms at 100 kHz. However, the exact ESR value may vary depending on the frequency and temperature of operation.
