The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LGN2X221MELC50 is designed to withstand vibrations up to 10Hz to 2000Hz, 10G acceleration. However, it's recommended to perform additional testing and validation to ensure the capacitor meets the specific requirements of your application.
The LGN2X221MELC50 has a moisture sensitivity level (MSL) of 2, which means it can withstand exposure to moisture and humidity. However, it's still recommended to follow proper storage and handling procedures to prevent moisture absorption.
The ESR of the LGN2X221MELC50 is not explicitly stated in the datasheet, but it can be estimated to be around 0.05 ohms based on the capacitor's construction and materials. For more accurate information, contact Nichicon Corporation or consult their application notes.
No, the LGN2X221MELC50 is rated for operation up to 125°C. Exceeding this temperature can lead to reduced performance, reliability, and lifespan. If you need a capacitor for high-temperature applications, consider using a different part number or consulting with Nichicon Corporation for a custom solution.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGN2X221MELC50 Overview

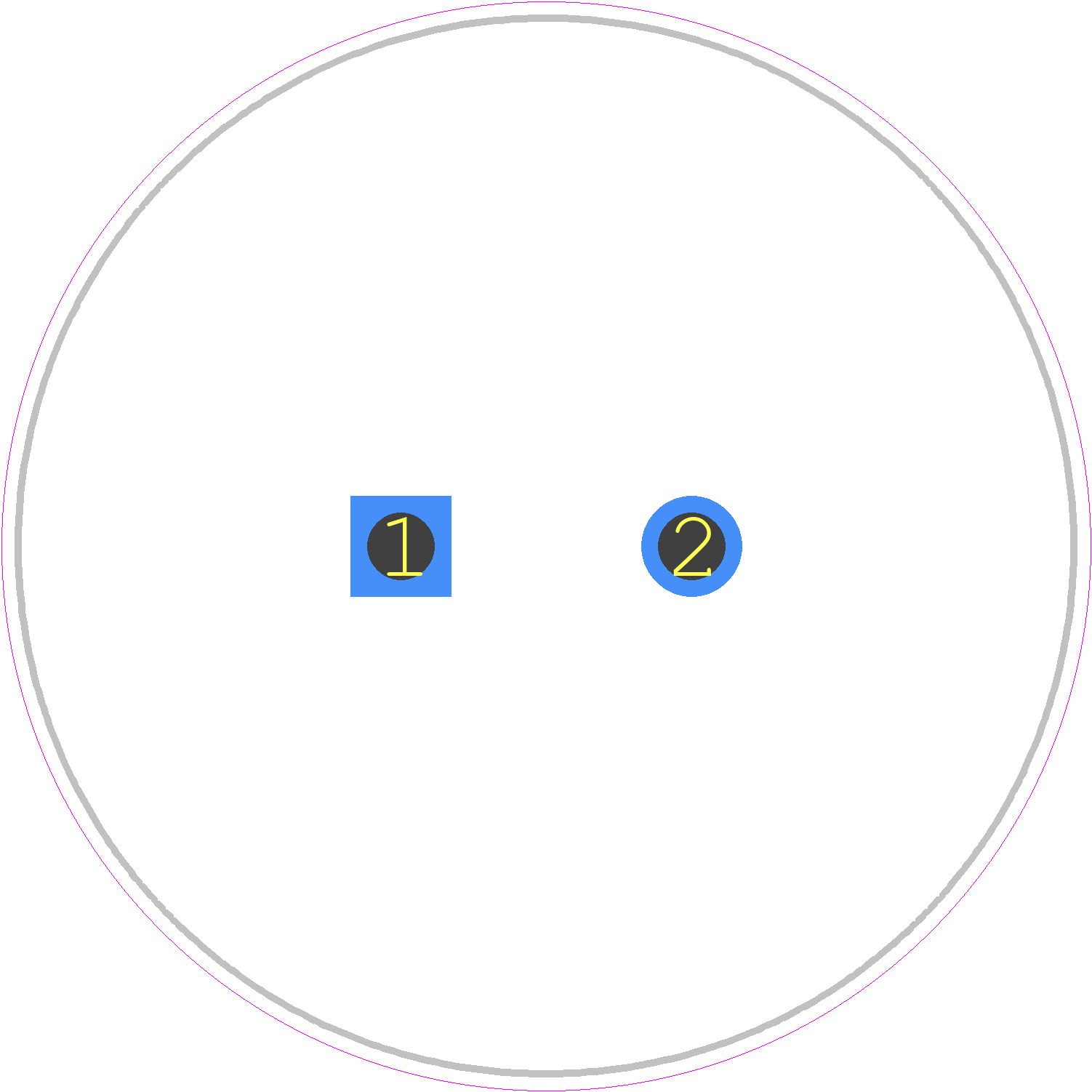

Use the download button to access the LGN2X221MELC50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGN2X,
or try a keyword search, such as Aluminum Electrolytic Capacitors
