LGR2D221MELZ25 - Nichicon

Description: 220 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C , 200 V , -40°C ~ 105°C

Download LGR2D221MELZ25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGR2D221MELZ25 - Nichicon - PCB symbol
click to zoom

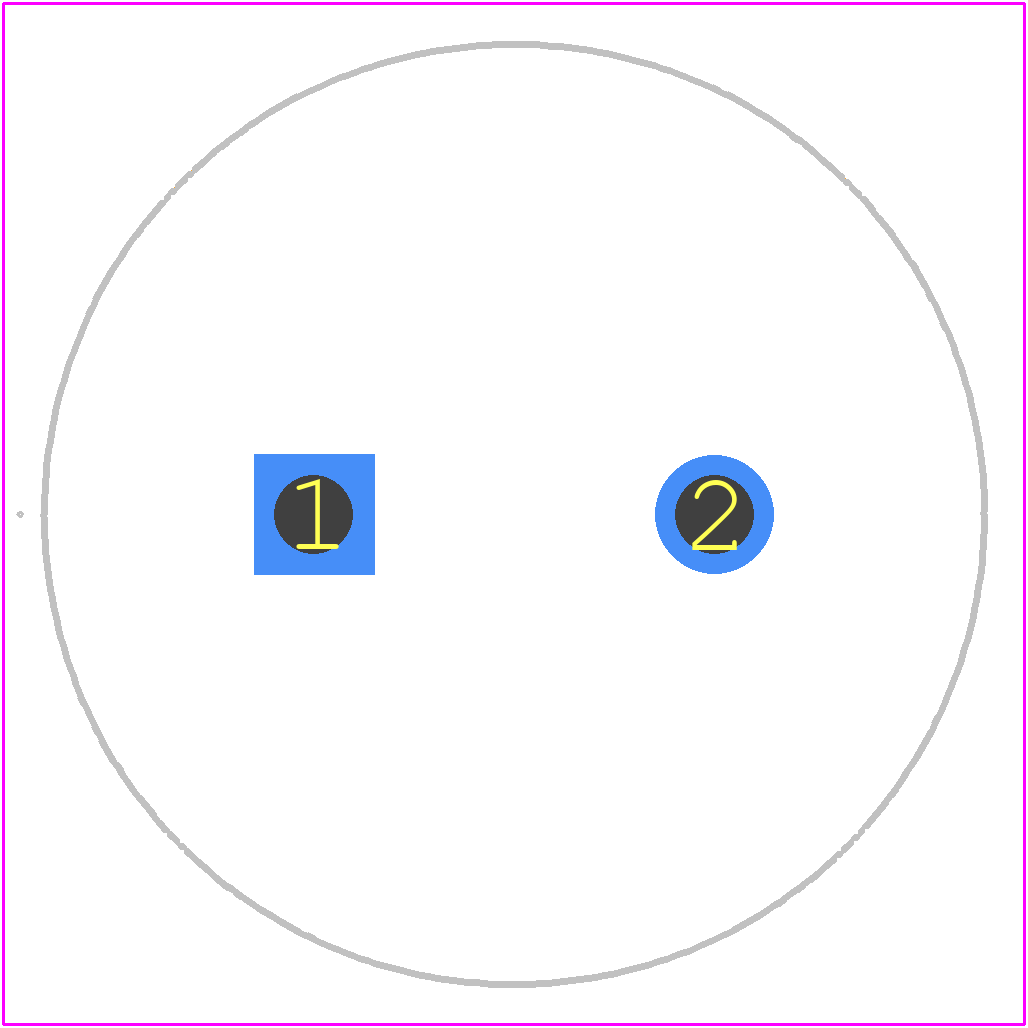

PCB Footprints
LGR2D221MELZ25 - Nichicon PCB footprint - Other - Other - 22 x 25mm_2026-1.1
click to zoom
3D Models
LGR2D221MELZ25 - Nichicon - 3D model - Other - 22 x 25mm_2026-1.1
click to zoom

LGR2D221MELZ25 Details

  • Manufacturer Part Number:

    LGR2D221MELZ25

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.62 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    200 V

  • Ripple Current:

    1000 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGR2D221MELZ25 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, LGR2D221MELZ25 is designed to withstand vibrations and can be used in high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and soldering.
  • LGR2D221MELZ25 is rated for operation up to 125°C (257°F). However, the capacitor's performance may degrade at high temperatures, and its lifespan may be reduced. It's recommended to derate the capacitor's voltage and current ratings at high temperatures.
  • Yes, LGR2D221MELZ25 is compatible with lead-free soldering. However, it's recommended to follow the manufacturer's guidelines for lead-free soldering profiles to ensure reliable solder joints.
  • LGR2D221MELZ25 is designed to operate in humid environments, but it's recommended to follow the manufacturer's guidelines for humidity testing and to ensure proper sealing and encapsulation to prevent moisture ingress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGR2D221MELZ25 Overview

Use the download button to access the LGR2D221MELZ25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGR2D, or try a keyword search, such as Aluminum Electrolytic Capacitors
