The recommended PCB land pattern for LGR2E331MELZ40 can be found in Nichicon's application note or by contacting their technical support. The land pattern should ensure good thermal dissipation and minimize the risk of soldering defects.
While LGR2E331MELZ40 is a reliable component, it's essential to evaluate its performance in a high-vibration environment. Nichicon recommends following the IEC 60068-2-6 standard for vibration testing. If the application exceeds the standard, additional testing or component selection may be necessary.
The ESR of LGR2E331MELZ40 is specified in the datasheet. To minimize the impact of ESR, ensure that the capacitor is used within its recommended operating conditions, and consider the ESR value when designing the circuit's impedance and frequency response.
Yes, LGR2E331MELZ40 is compatible with lead-free soldering processes. Nichicon ensures that their components meet the requirements of the RoHS directive and can withstand the higher temperatures associated with lead-free soldering.
The lifespan of LGR2E331MELZ40 depends on various factors, including operating temperature, voltage, and ripple current. Nichicon provides a lifetime calculation formula in their application note or technical support. Engineers should consult this information to estimate the component's lifespan in their specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGR2E331MELZ40 Overview

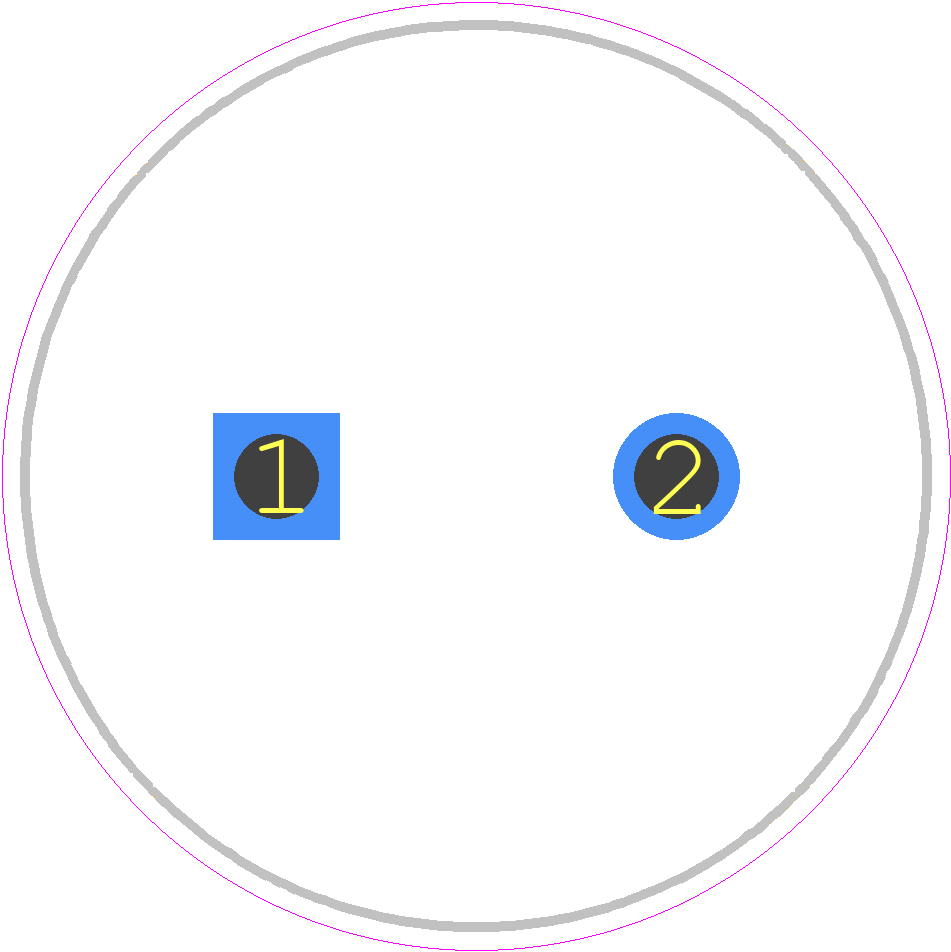

Use the download button to access the LGR2E331MELZ40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGR2E,
or try a keyword search, such as Aluminum Electrolytic Capacitors
