LGR2E681MELC35 - Nichicon

Description: 680 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C , 680 µF , -40°C ~ 105°C

Download LGR2E681MELC35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGR2E681MELC35 - Nichicon - PCB symbol
click to zoom
PCB Footprints

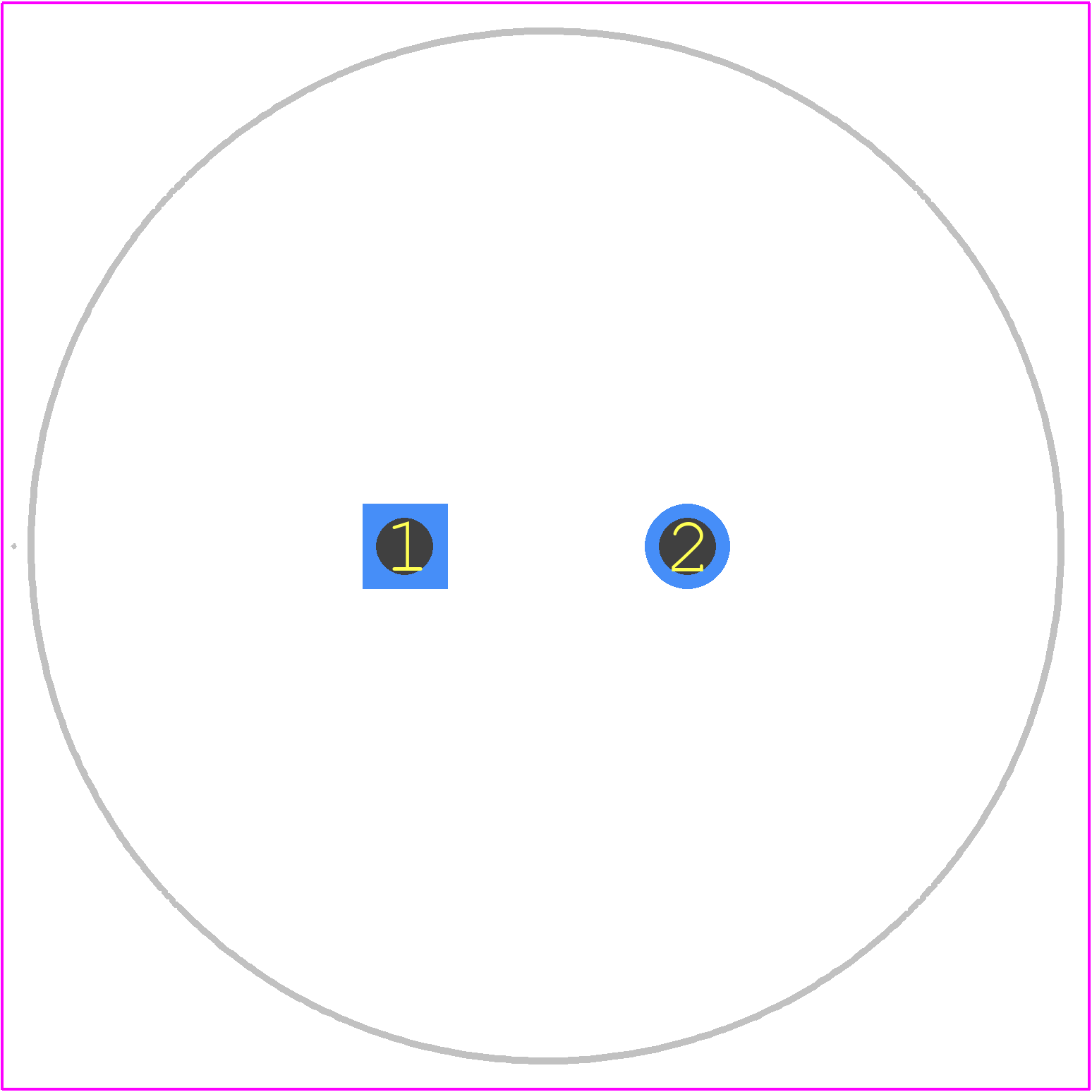

LGR2E681MELC35 - Nichicon PCB footprint - Other - Other - 35 x 35mm_2025-1.2
click to zoom
3D Models
LGR2E681MELC35 - Nichicon - 3D model - Other - 35 x 35mm_2025-1.2
click to zoom

LGR2E681MELC35 Details

  • Manufacturer Part Number:

    LGR2E681MELC35

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    680 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.23 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    1700 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGR2E681MELC35 Frequently Asked Questions (FAQs)

  • The recommended PCB land pattern for LGR2E681MELC35 can be found in Nichicon's application note or on their website. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent thermal and electrical issues.
  • While LGR2E681MELC35 is a reliable component, it's not specifically designed for high-vibration environments. If you need to use it in such an environment, you should consider adding additional mechanical support or using a vibration-resistant capacitor. Consult with Nichicon's technical support for more information.
  • The ESR of LGR2E681MELC35 is specified in the datasheet. To handle it in your design, you should consider the ESR value when calculating the overall impedance of your circuit. You may need to add ESR to your simulation models or consider it when selecting other components.
  • Yes, LGR2E681MELC35 is compatible with lead-free soldering processes. Nichicon ensures that their components meet the requirements for lead-free soldering, but it's still important to follow the recommended soldering profile and temperature to prevent damage to the component.
  • The maximum operating temperature range for LGR2E681MELC35 is specified in the datasheet as -40°C to +105°C. However, it's essential to consider the derating curves and temperature coefficients to ensure the component operates within its specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGR2E681MELC35 Overview

Use the download button to access the LGR2E681MELC35 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGR2E, or try a keyword search, such as Aluminum Electrolytic Capacitors
