The recommended land pattern for LGR2G101MELZ35 can be found in the Nichicon Corporation's recommended land pattern document, which is usually available on their website or through their sales representative. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
The ESR of LGR2G101MELZ35 is specified in the datasheet, but it's essential to consider it in your design to ensure optimal performance. You can use the ESR value to calculate the impedance of the capacitor and ensure that it meets your design requirements. Additionally, you may need to consider the ESR in your power supply design, as it can affect the overall efficiency and stability of the system.
The LGR2G101MELZ35 is rated for operation up to 105°C, but it's essential to consider the derating curves provided in the datasheet to ensure that the capacitor can handle the expected temperature range in your application. Additionally, you may need to consider the reliability and lifespan of the capacitor at high temperatures, as excessive heat can affect its performance and longevity.
To ensure the reliability of LGR2G101MELZ35, it's essential to follow proper design and manufacturing practices. This includes ensuring that the capacitor is operated within its specified ratings, using a suitable PCB layout and land pattern, and avoiding excessive mechanical stress or vibration. Additionally, you may need to consider implementing redundancy or fault-tolerant design to mitigate the risk of capacitor failure.
The LGR2G101MELZ35 is designed to withstand moderate levels of vibration, but it's essential to consider the specific vibration requirements of your application. You may need to consult with Nichicon Corporation or a qualified engineer to determine the suitability of the capacitor for your specific use case. Additionally, you may need to consider implementing additional mechanical support or vibration damping measures to ensure the reliability of the capacitor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGR2G101MELZ35 Overview

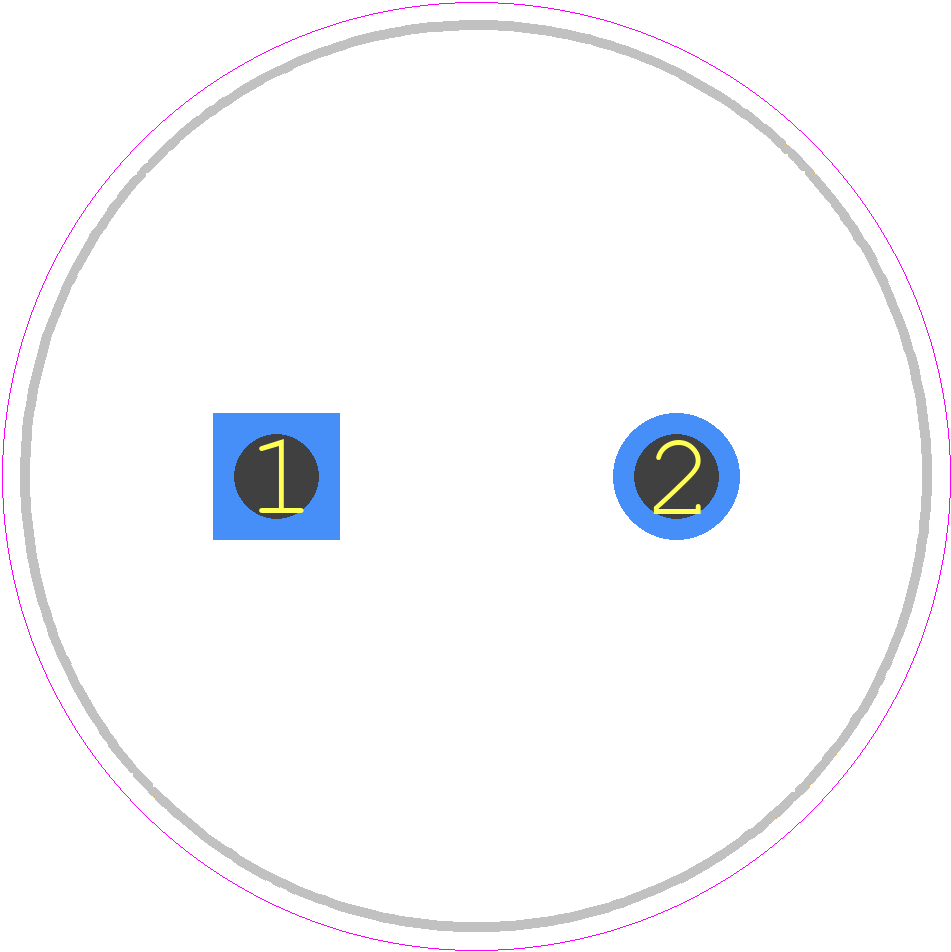

Use the download button to access the LGR2G101MELZ35 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGR2G,
or try a keyword search, such as Aluminum Electrolytic Capacitors
