LGU1E103MELZ - Nichicon

Description: 10000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C , -40°C ~ 105°C

Download LGU1E103MELZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU1E103MELZ - Nichicon - PCB symbol
click to zoom
PCB Footprints

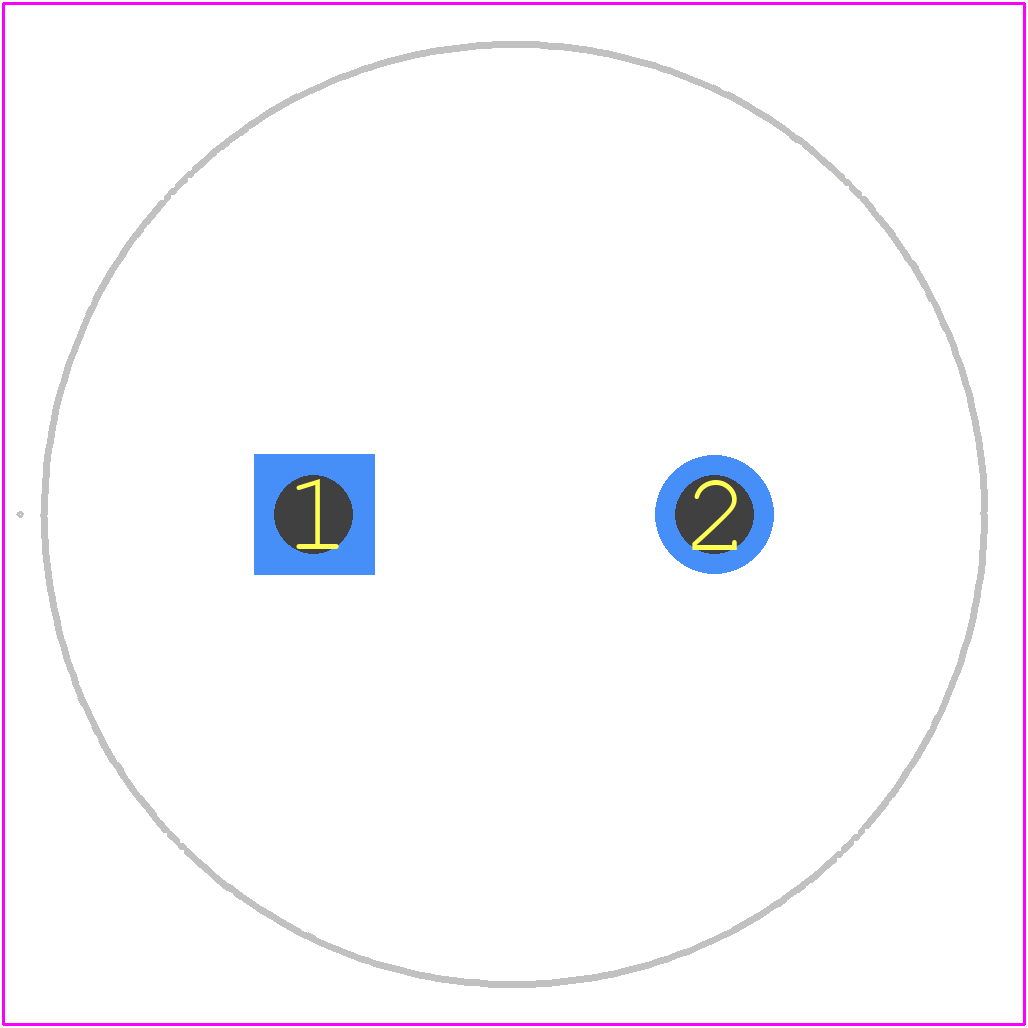

LGU1E103MELZ - Nichicon PCB footprint - Other - Other - 22mm x 40mm_2026-1.15
click to zoom
3D Models
LGU1E103MELZ - Nichicon - 3D model - Other - 22mm x 40mm_2026-1.15
click to zoom

LGU1E103MELZ Details

  • Manufacturer Part Number:

    LGU1E103MELZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.5 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    2650 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.4

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU1E103MELZ Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGU1E103MELZ capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LGU1E103MELZ capacitor is typically around 0.05 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • Yes, the LGU1E103MELZ capacitor is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace systems.
  • The shelf life of the LGU1E103MELZ capacitor is typically 2 years from the date of manufacture, but this can vary depending on storage conditions and handling practices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGU1E103MELZ Overview

Use the download button to access the LGU1E103MELZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU1E, or try a keyword search, such as Aluminum Electrolytic Capacitors
