The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LGU1H332MELZ is designed to withstand vibrations up to 10Hz to 2000Hz, 10mm double amplitude. However, it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The LGU1H332MELZ is designed to reduce high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. However, the actual noise reduction performance may vary depending on the specific application and circuit design.
The LGU1H332MELZ has a maximum operating temperature of 105°C (221°F). While it can operate at high temperatures, its performance and lifespan may be affected. It's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific temperature requirements of your application.
The LGU1H332MELZ has a moisture resistance rating of 85°C, 85% RH, 1000 hours. While it can operate in humid environments, it's recommended to take precautions to prevent moisture ingress and ensure the capacitor is properly sealed or coated to maintain its performance and lifespan.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGU1H332MELZ Overview

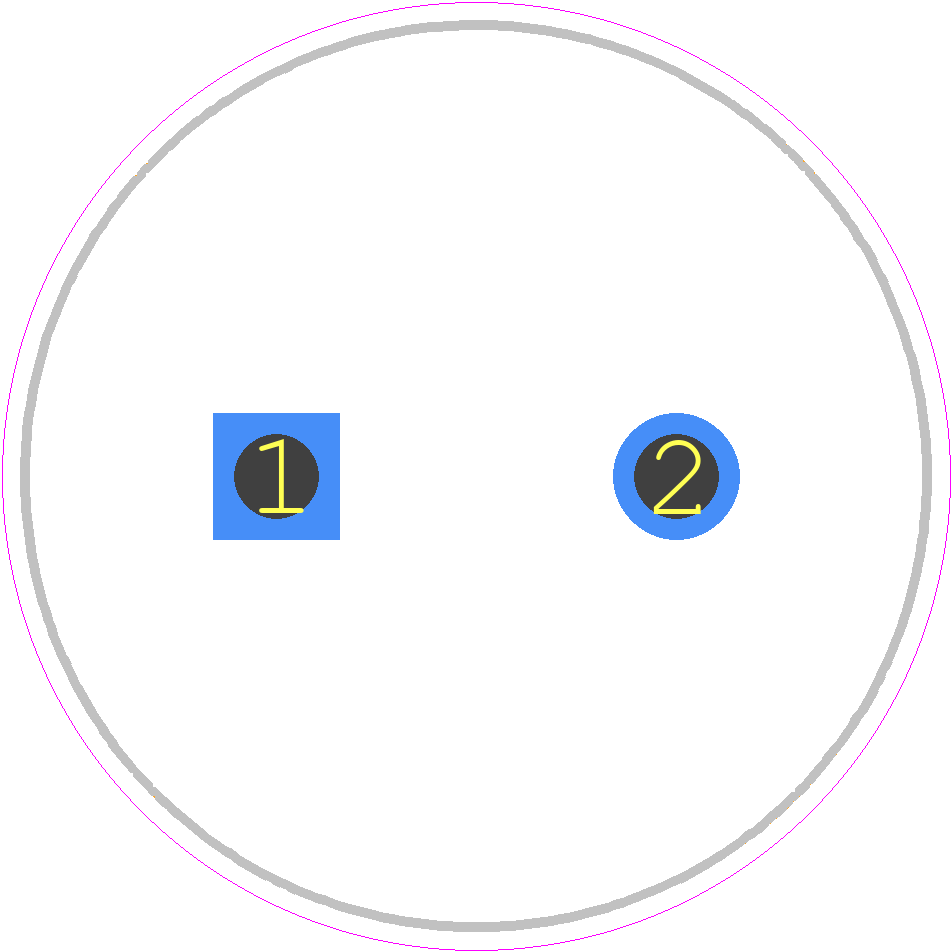

Use the download button to access the LGU1H332MELZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU1H,
or try a keyword search, such as Aluminum Electrolytic Capacitors
