LGU1K222MELA - Nichicon

Description: 2200 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

Download LGU1K222MELA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU1K222MELA - Nichicon - PCB symbol
click to zoom
PCB Footprints

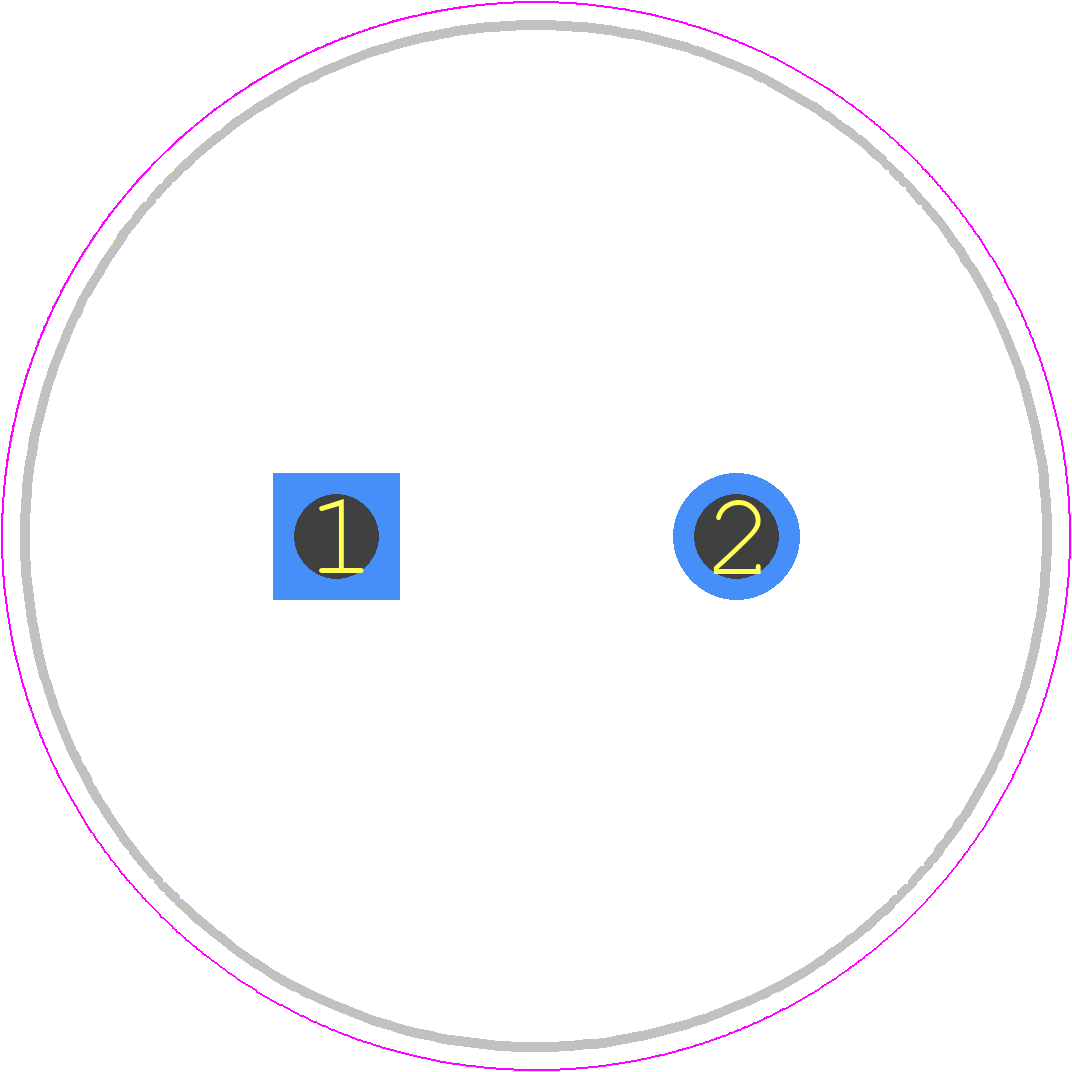

LGU1K222MELA - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25 x 35
click to zoom
3D Models
LGU1K222MELA - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25 x 35
click to zoom

LGU1K222MELA Details

  • Manufacturer Part Number:

    LGU1K222MELA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.25 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    80 V

  • Ripple Current:

    2010 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU1K222MELA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGU1K222MELA is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and can be used in high-vibration applications.
  • Yes, the LGU1K222MELA is compatible with lead-free soldering and can withstand the higher temperatures required for lead-free soldering processes.
  • The derating curve for the LGU1K222MELA is typically 1.25 times the rated voltage at 85°C, and 1.5 times the rated voltage at 125°C. Consult the datasheet or manufacturer's application notes for more information.
  • The LGU1K222MELA is designed to operate in environments with relative humidity up to 90% at 40°C, but may require additional protection or coating for use in extremely humid or high-moisture environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGU1K222MELA Overview

Use the download button to access the LGU1K222MELA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU1K, or try a keyword search, such as Aluminum Electrolytic Capacitors
