LGU1K392MELC - Nichicon

Description: 3900 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C , -40°C ~ 105°C

Download LGU1K392MELC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU1K392MELC - Nichicon - PCB symbol
click to zoom
PCB Footprints

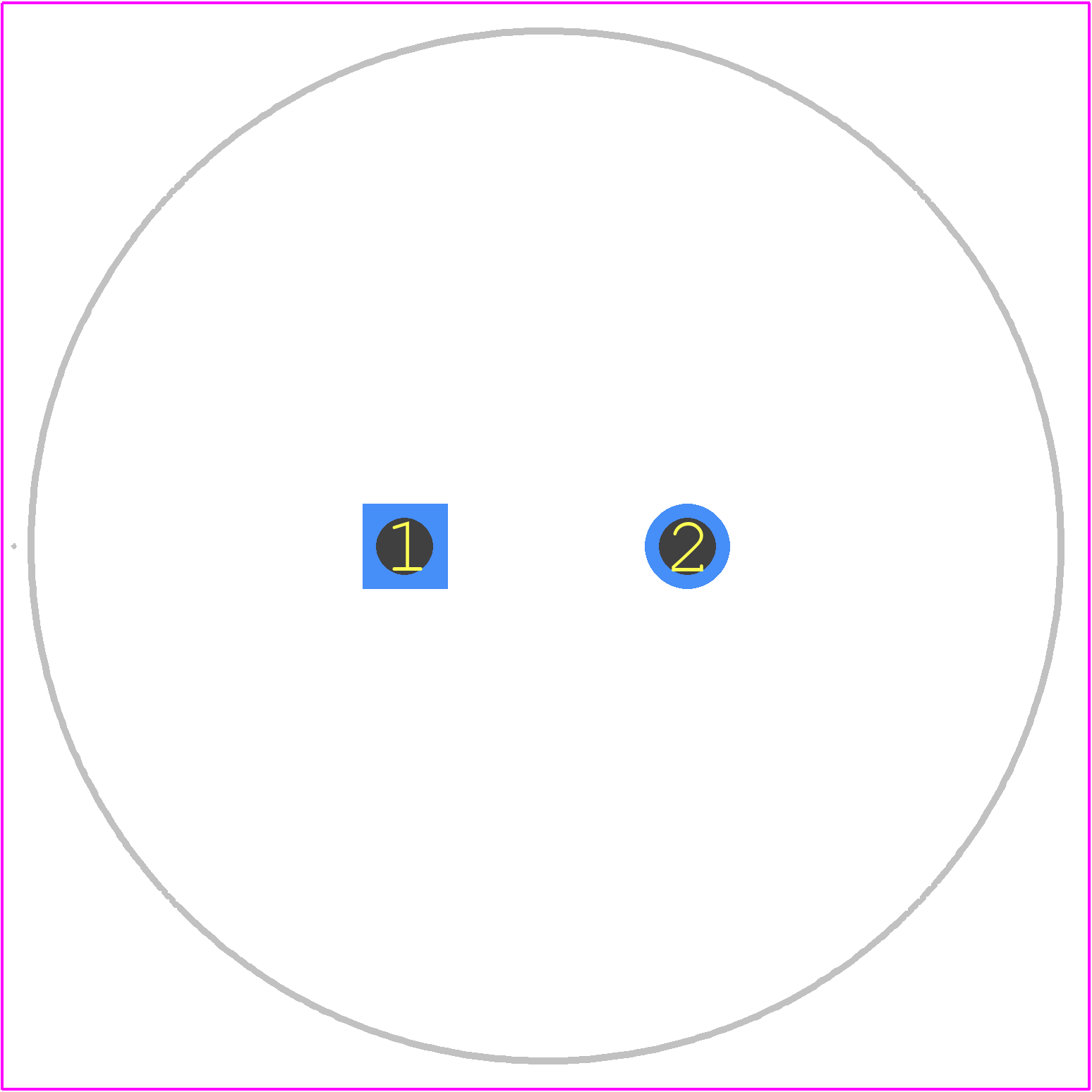

LGU1K392MELC - Nichicon PCB footprint - Other - Other - 35 x 30mm_2025-1.4
click to zoom
3D Models
LGU1K392MELC - Nichicon - 3D model - Other - 35 x 30mm_2025-1.4
click to zoom

LGU1K392MELC Details

  • Manufacturer Part Number:

    LGU1K392MELC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    3900 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.67 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    80 V

  • Ripple Current:

    3070 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU1K392MELC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGU1K392MELC capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The derating curve for the LGU1K392MELC capacitor can be found in the Nichicon Corporation's application notes or by contacting their technical support. Generally, the capacitor's voltage rating decreases as the operating temperature increases.
  • Yes, the LGU1K392MELC capacitor is suitable for high-frequency applications up to 100 kHz. However, the capacitor's impedance and ESR (Equivalent Series Resistance) should be considered when designing high-frequency circuits.
  • The shelf life of the LGU1K392MELC capacitor is typically 2 years from the date of manufacture when stored in a dry, cool place. However, it's recommended to follow the storage and handling guidelines provided by Nichicon Corporation to ensure the capacitor's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGU1K392MELC Overview

Use the download button to access the LGU1K392MELC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU1K, or try a keyword search, such as Aluminum Electrolytic Capacitors
