LGU2A152MELB - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 100volts 1500uF 0.2 30x30 105c

Download LGU2A152MELB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU2A152MELB - Nichicon - PCB symbol
click to zoom
PCB Footprints

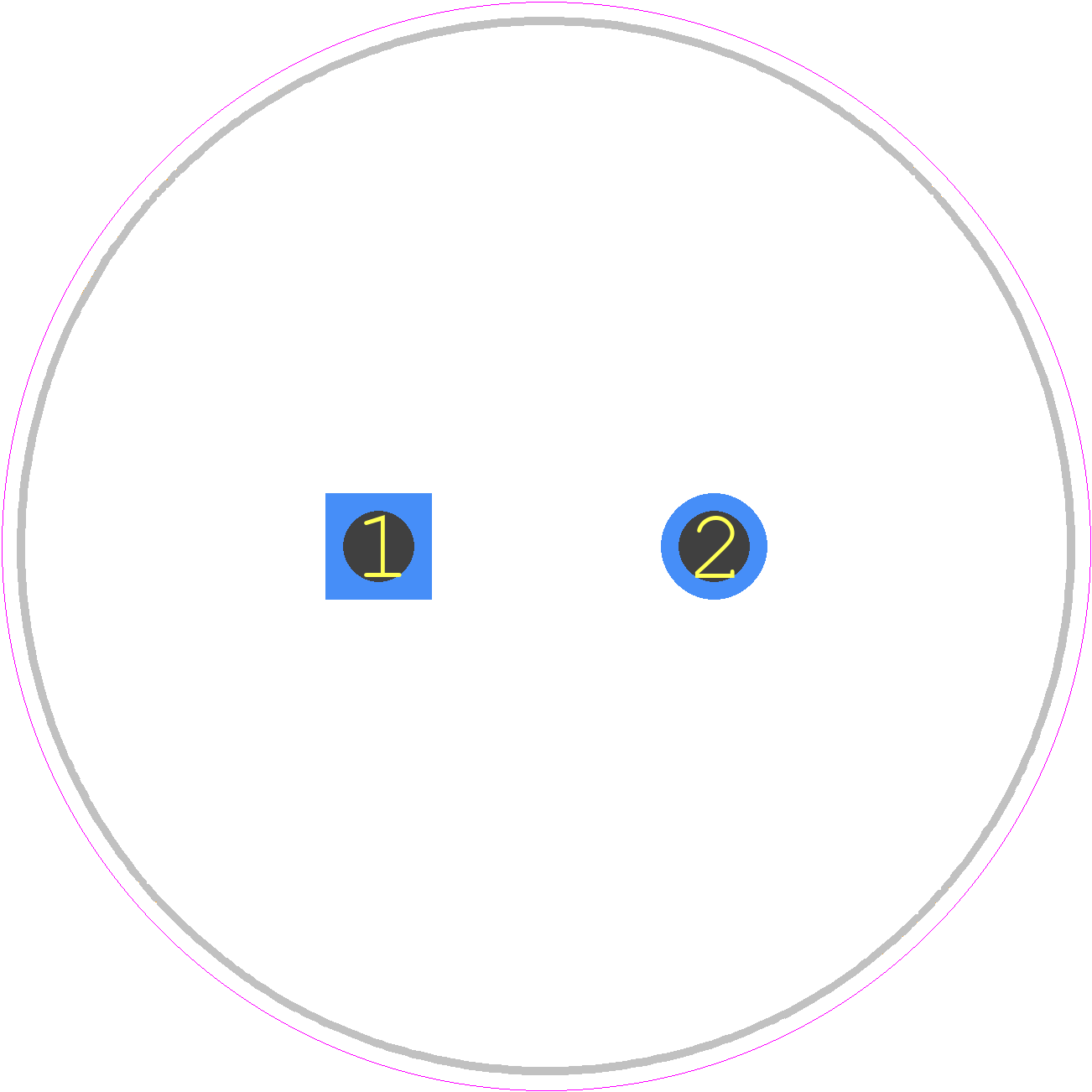

LGU2A152MELB - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30mm × 30mm
click to zoom
3D Models
LGU2A152MELB - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 30mm × 30mm
click to zoom

LGU2A152MELB Details

  • Manufacturer Part Number:

    LGU2A152MELB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    1500 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.16 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    2000 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU2A152MELB Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGU2A152MELB capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium above the allowed limits.
  • The ESR of the LGU2A152MELB capacitor is not explicitly stated in the datasheet, but it is typically around 100-200 mΩ for aluminum electrolytic capacitors of this type and size.
  • While the LGU2A152MELB capacitor is designed to be reliable, it is not specifically designed for high-vibration applications. If high vibration is expected, a more ruggedized capacitor or additional mechanical support may be necessary.
  • The shelf life of the LGU2A152MELB capacitor is typically 2 years from the date of manufacture, but it can be extended to 5 years or more if stored properly in a cool, dry place.
