LGU2A152MELZ - Nichicon

Description: Nichicon 1500μF 100 V Aluminium Electrolytic Capacitor, GU Series 3000h 22 (Dia.) x 45mm

Download LGU2A152MELZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU2A152MELZ - Nichicon - PCB symbol
click to zoom
PCB Footprints

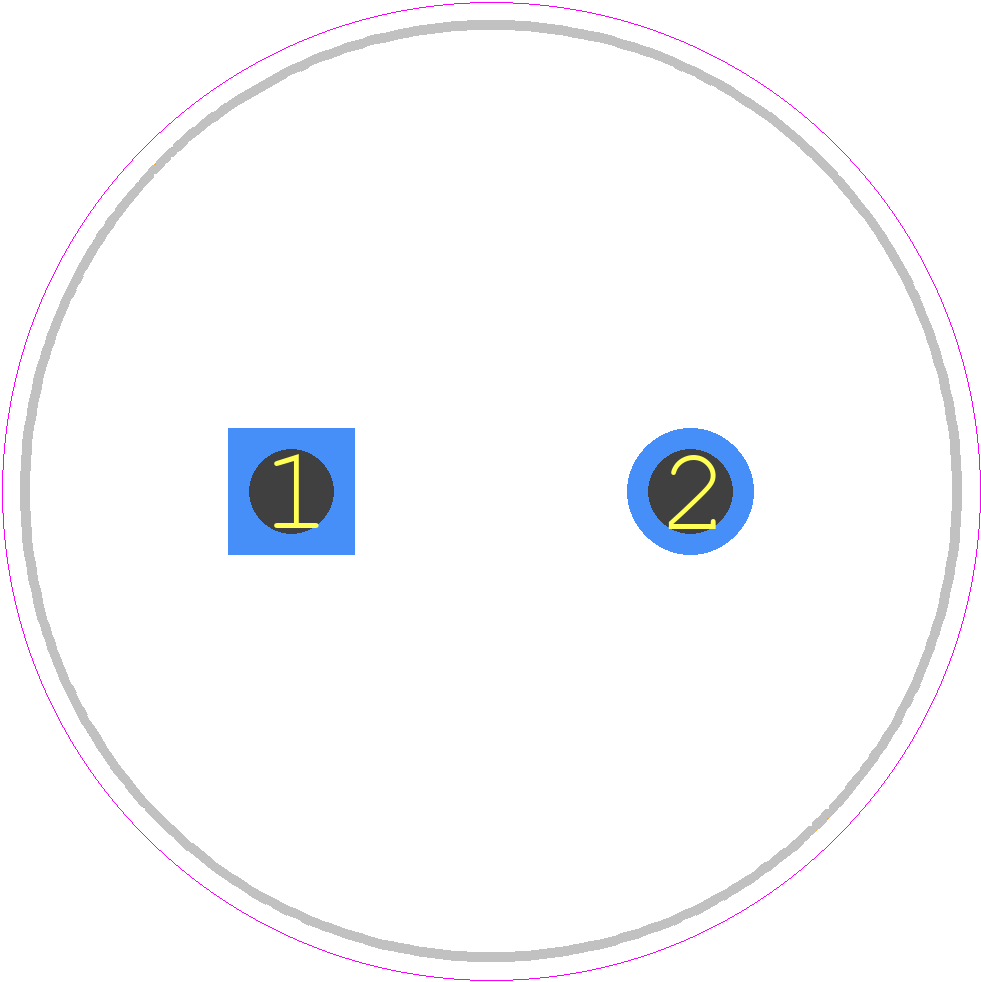

LGU2A152MELZ - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGU (22 x 45)
click to zoom
3D Models
LGU2A152MELZ - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGU (22 x 45)
click to zoom

LGU2A152MELZ Details

  • Manufacturer Part Number:

    LGU2A152MELZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    1500 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.16 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    1990 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU2A152MELZ Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGU2A152MELZ capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LGU2A152MELZ capacitor is typically around 100-150 mΩ at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • Yes, the LGU2A152MELZ capacitor is designed to withstand high-vibration and high-shock environments, making it suitable for use in industrial, automotive, and other demanding applications.
  • The derating curve for the LGU2A152MELZ capacitor is typically provided by Nichicon Corporation and can be obtained through their website or by contacting their technical support. The derating curve shows the recommended voltage and temperature derating for the capacitor to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGU2A152MELZ Overview

Use the download button to access the LGU2A152MELZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU2A, or try a keyword search, such as Aluminum Electrolytic Capacitors
