LGU2E331MELA - Nichicon

Description: 330 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C , 330 µF , 250 V , -40°C ~ 105°C

Download LGU2E331MELA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU2E331MELA - Nichicon - PCB symbol
click to zoom
PCB Footprints

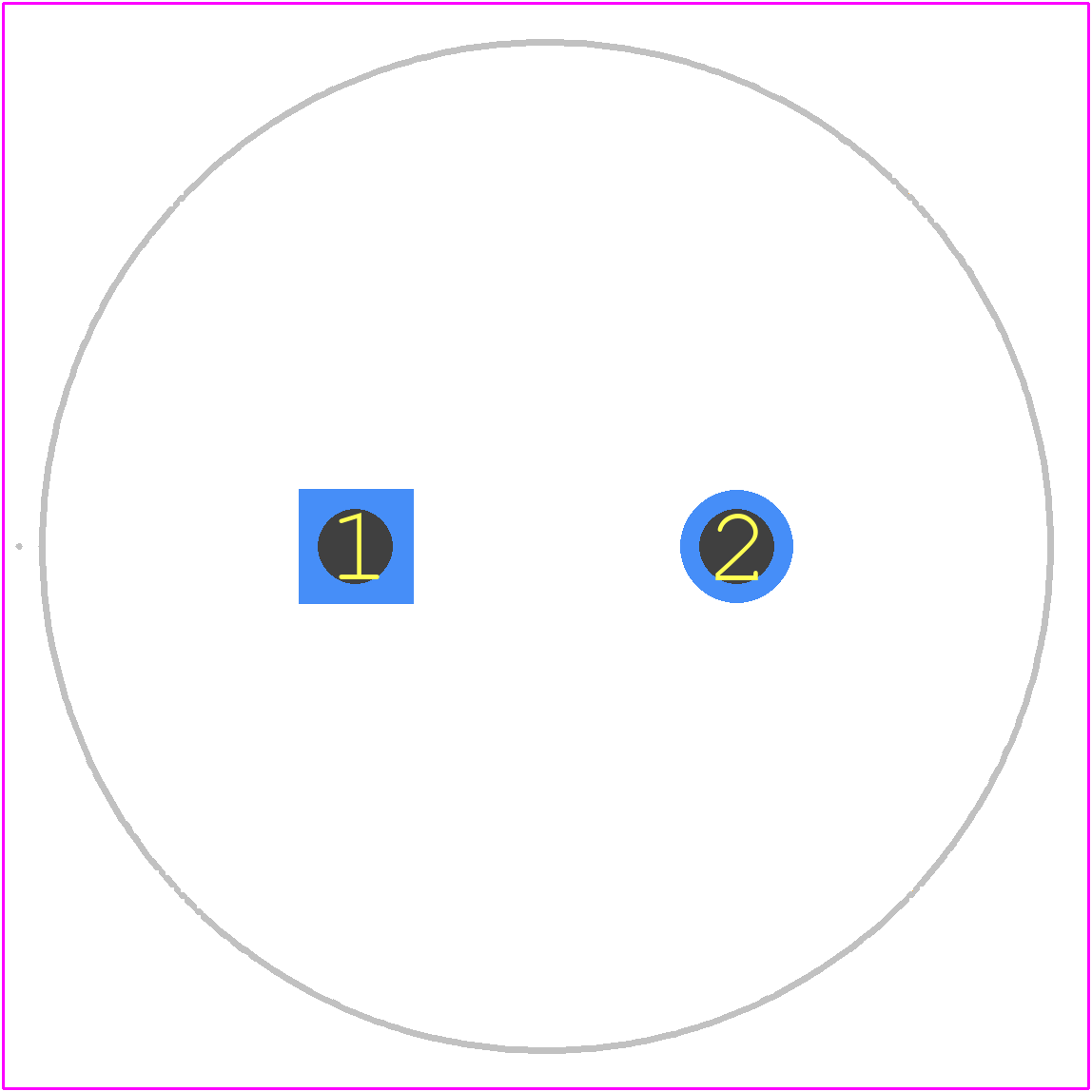

LGU2E331MELA - Nichicon PCB footprint - Other - Other - 25 x 30mm_2025-1.1
click to zoom
3D Models
LGU2E331MELA - Nichicon - 3D model - Other - 25 x 30mm_2025-1.1
click to zoom

LGU2E331MELA Details

  • Manufacturer Part Number:

    LGU2E331MELA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.86 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    1300 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU2E331MELA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 3 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGU2E331MELA is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and can be used in high-vibration applications.
  • Yes, the LGU2E331MELA is compatible with lead-free soldering and can withstand the higher temperatures required for lead-free soldering processes.
  • The derating curve for the LGU2E331MELA is typically 1.25 times the rated voltage at 85°C, and 1.5 times the rated voltage at 125°C. Consult the datasheet or manufacturer's application notes for more information.
  • Yes, the LGU2E331MELA is designed to operate in humid environments, but it's recommended to follow the manufacturer's guidelines for humidity and moisture protection to ensure reliable operation.
