The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LGU2E471MELZ is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude. However, it's recommended to perform additional testing and validation to ensure the capacitor meets the specific requirements of your application.
The LGU2E471MELZ has a moisture resistance rating of 85°C/85% RH for 500 hours. While it can operate in humid environments, it's essential to follow proper storage and handling procedures to prevent moisture absorption.
The ESR of the LGU2E471MELZ capacitor is not explicitly stated in the datasheet. However, Nichicon provides an ESR chart in the datasheet, which shows the ESR values at different frequencies. For example, at 100 kHz, the ESR is approximately 0.02 ohms.
The LGU2E471MELZ capacitor has a maximum operating temperature of 125°C. While it can operate at high temperatures, the capacitor's lifespan and performance may be affected. It's recommended to derate the capacitor's voltage and current ratings at high temperatures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGU2E471MELZ Overview

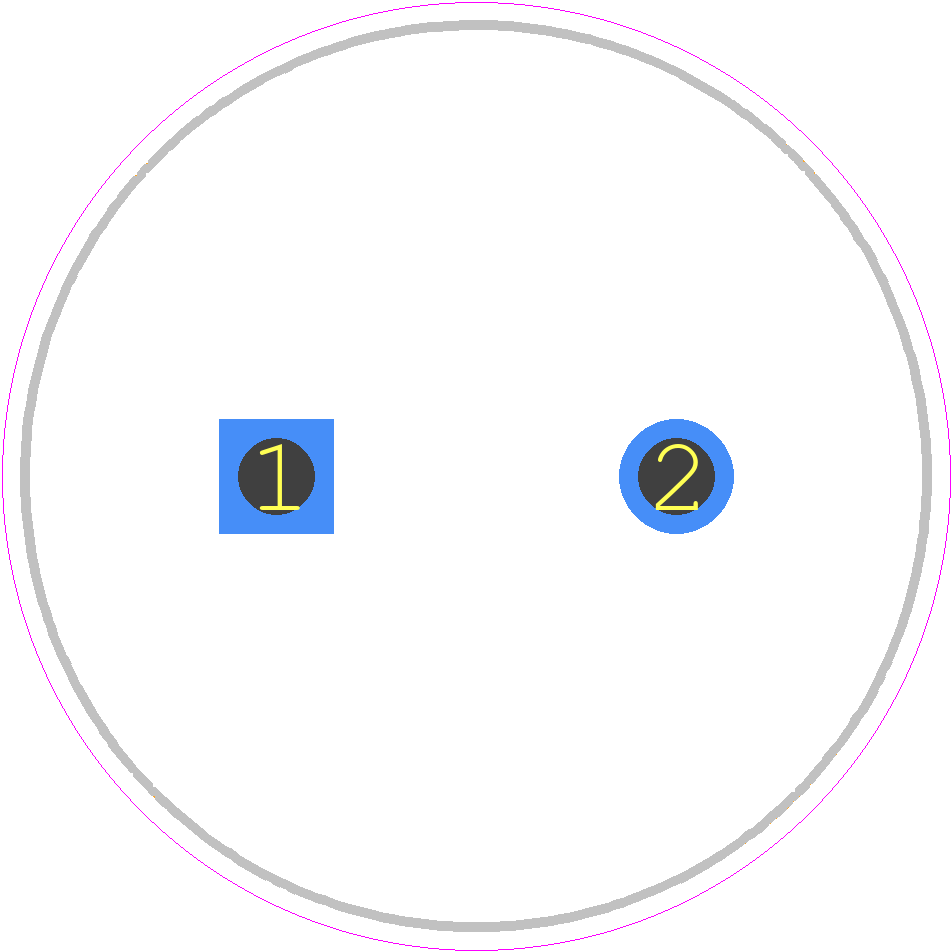

Use the download button to access the LGU2E471MELZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU2E,
or try a keyword search, such as Aluminum Electrolytic Capacitors
