LGU2G151MELA - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 400volts 150uF 105c

Download LGU2G151MELA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU2G151MELA - Nichicon - PCB symbol
click to zoom
PCB Footprints

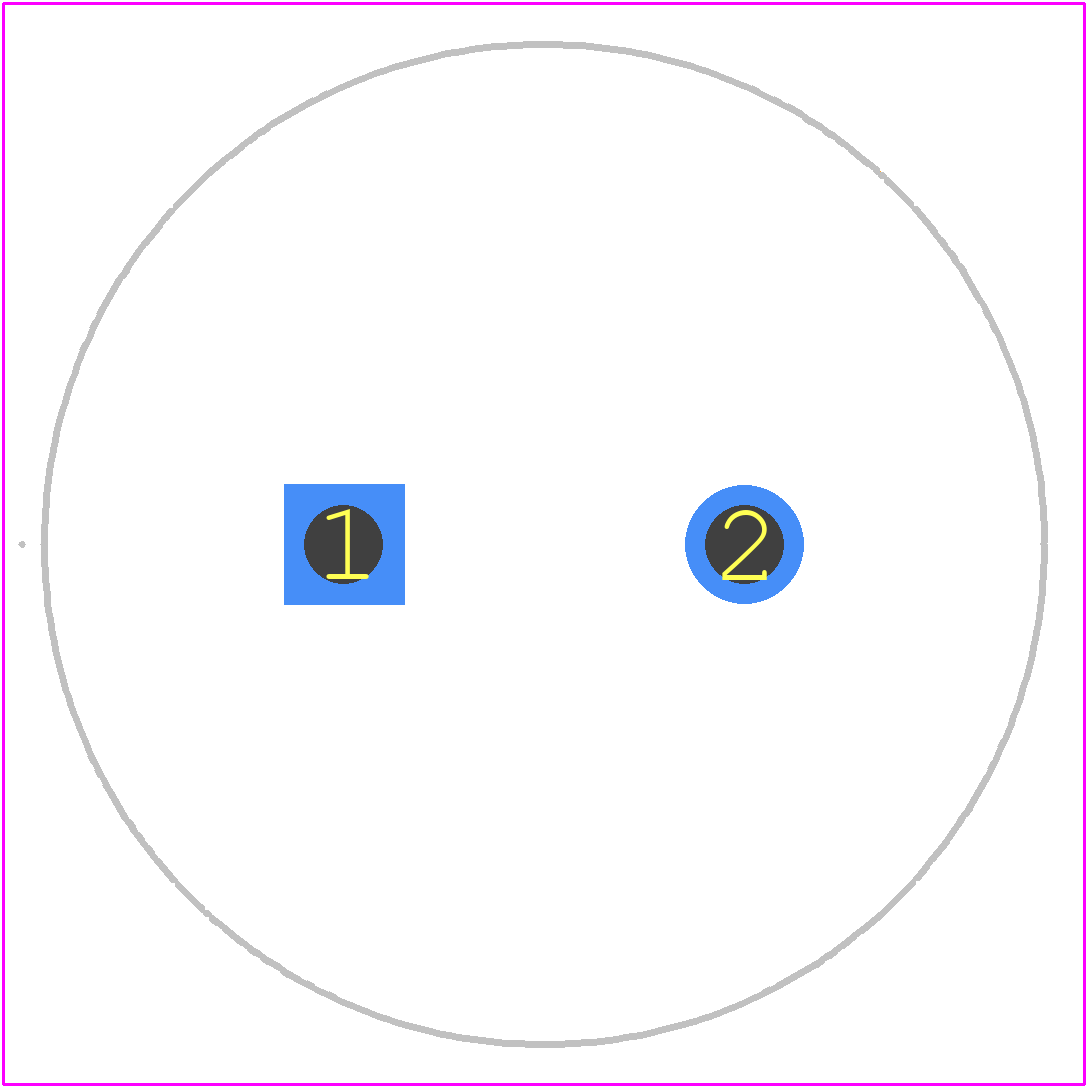

LGU2G151MELA - Nichicon PCB footprint - Other - Other - 25mm x 30mm
click to zoom
3D Models
LGU2G151MELA - Nichicon - 3D model - Other - 25mm x 30mm
click to zoom

LGU2G151MELA Details

  • Manufacturer Part Number:

    LGU2G151MELA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    150 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.73 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    880 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU2G151MELA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGU2G151MELA is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and mounting.
  • The LGU2G151MELA is rated for operation up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult the datasheet for temperature derating information.
  • Yes, the LGU2G151MELA is compatible with lead-free soldering processes, but ensure that the soldering temperature and time are within the recommended specifications.
  • Store the LGU2G151MELA in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 70%.
