Nichicon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for 10-30 seconds, with a ramp-up rate of 2-3°C/s and a ramp-down rate of 2-3°C/s.
Yes, the LGU2G151MELY is designed to withstand vibrations up to 10Hz to 200Hz, 1.5mm double amplitude, as per IEC 60068-2-6 standard. However, it's recommended to consult with Nichicon or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The LGU2G151MELY has a moisture resistance rating of 85°C, 85% RH, 1000 hours, as per IEC 60068-2-78 standard. While it can operate in humid environments, it's essential to follow proper storage and handling procedures to prevent moisture absorption.
The LGU2G151MELY has a rated lifespan of 5,000 hours at 105°C, with a capacitance change of ±15% and an ESR change of ≤3 times the initial value. However, the actual lifespan may vary depending on the operating conditions and environment.
The LGU2G151MELY is designed to operate up to 2,000 meters (6,562 feet) above sea level. However, it's recommended to consult with Nichicon or a qualified engineer to ensure the capacitor meets the specific high-altitude requirements of your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGU2G151MELY Overview

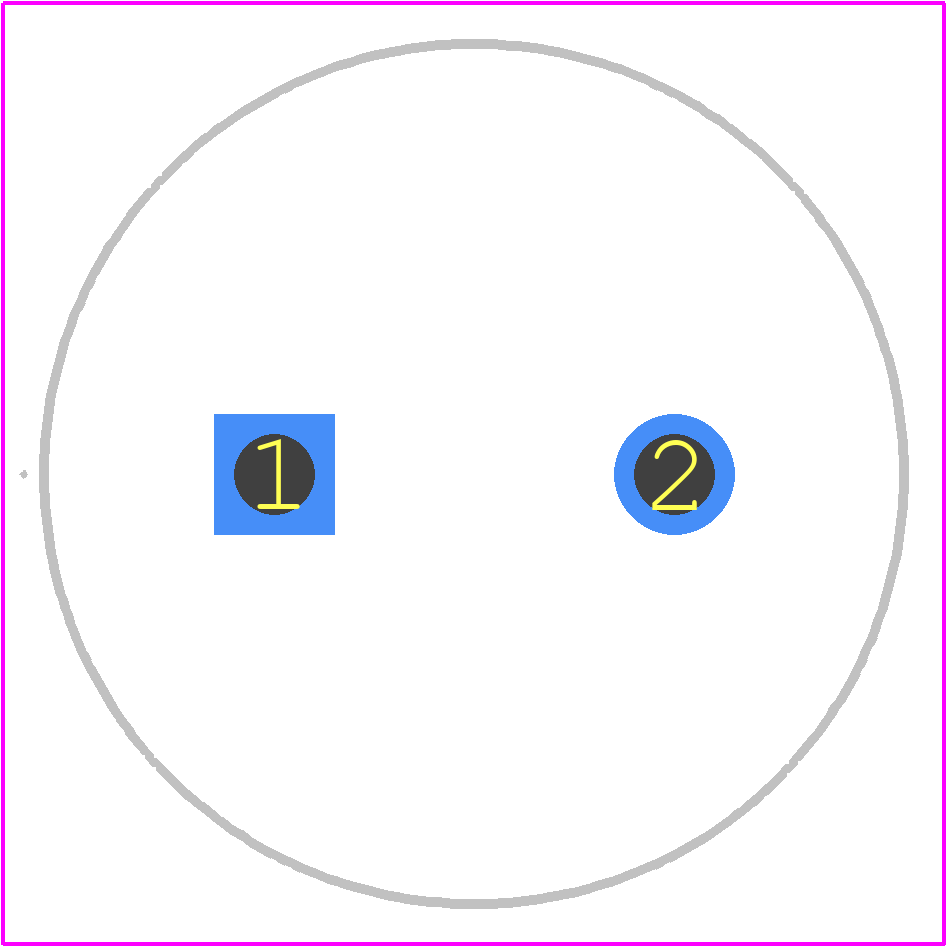

Use the download button to access the LGU2G151MELY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU2G,
or try a keyword search, such as Aluminum Electrolytic Capacitors
