LGU2G221MELC - Nichicon

Description: Nichicon 220μF 400 V Aluminium Electrolytic Capacitor, GU Series 3000h 35 (Dia.) x 25mm

Download LGU2G221MELC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGU2G221MELC - Nichicon - PCB symbol
click to zoom
PCB Footprints

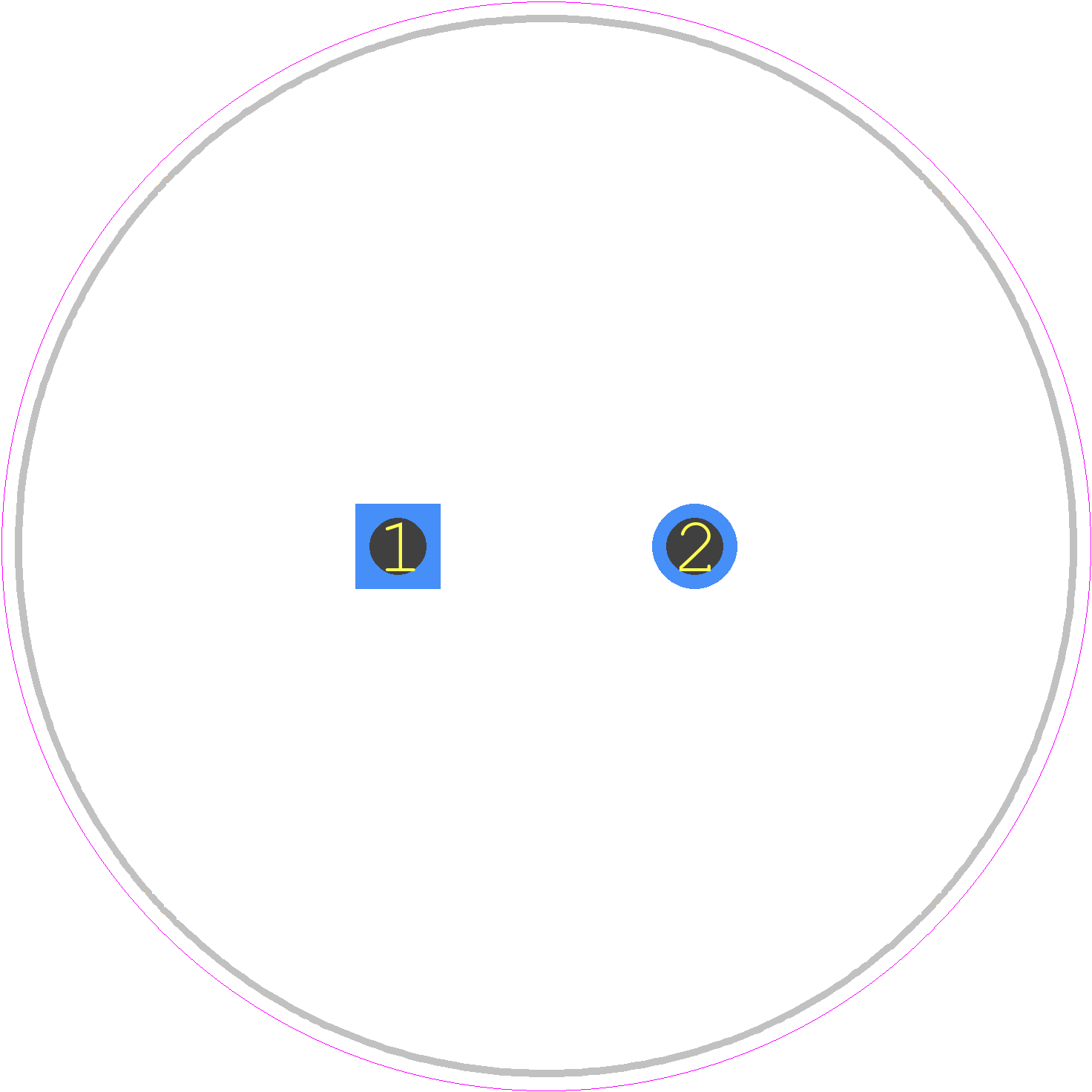

LGU2G221MELC - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - SIZE CODE 35X25
click to zoom
3D Models
LGU2G221MELC - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - SIZE CODE 35X25
click to zoom

LGU2G221MELC Details

  • Manufacturer Part Number:

    LGU2G221MELC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.88 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1100 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGU2G221MELC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGU2G221MELC is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
  • The LGU2G221MELC is rated for operation up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult the datasheet for specific temperature derating information.
  • Yes, the LGU2G221MELC is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant designs.
  • The LGU2G221MELC should be stored in a dry, cool place, away from direct sunlight and moisture, to prevent degradation of the capacitor's performance and lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGU2G221MELC Overview

Use the download button to access the LGU2G221MELC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU2G, or try a keyword search, such as Aluminum Electrolytic Capacitors
