The recommended soldering temperature is 250°C to 260°C, and the recommended soldering time is 3 to 5 seconds. However, it's always best to consult the manufacturer's soldering guidelines and follow the recommended reflow soldering profile.
Yes, the LGU2G391MELC capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) above the specified limits.
The ESR of the LGU2G391MELC capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mohms at 100 kHz, based on similar capacitors from Nichicon Corporation. However, it's recommended to consult the manufacturer or a reliable source for the exact ESR value.
The LGU2G391MELC capacitor is designed for general-purpose use and may not be suitable for high-vibration or high-shock applications. If you need a capacitor for such applications, you should consider capacitors specifically designed for high-reliability or automotive use, which are typically built with more robust construction and testing.
The MSL of the LGU2G391MELC capacitor is typically MSL 2 or MSL 3, which means it can be exposed to a certain level of moisture before soldering. However, it's recommended to follow the manufacturer's guidelines for moisture sensitivity and handling to prevent damage during assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGU2G391MELC Overview

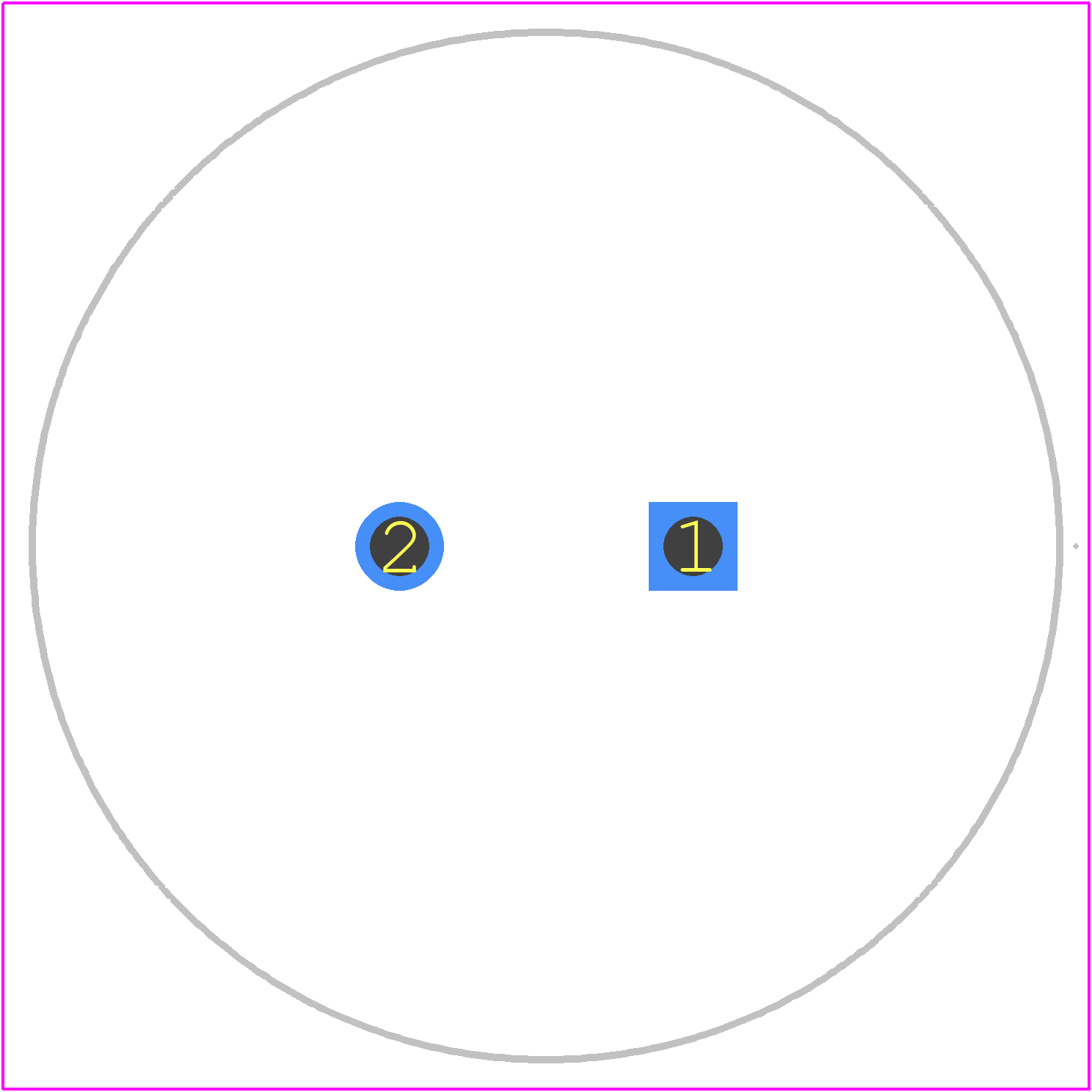

Use the download button to access the LGU2G391MELC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGU2G,
or try a keyword search, such as Aluminum Electrolytic Capacitors
