The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. However, it's recommended to follow the soldering conditions specified in the J-STD-020 standard.
Yes, the LGW2G221MELB30 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium above the specified limits.
The ESR of the LGW2G221MELB30 capacitor is not explicitly stated in the datasheet. However, according to Nichicon's general specifications for similar capacitors, the ESR is typically around 0.02 ohms at 100 kHz and 20°C.
While the LGW2G221MELB30 capacitor is designed for general-purpose use, it may not be suitable for high-vibration applications. Nichicon recommends using their vibration-resistant capacitors, such as the LGW2G221MELB30-V series, for applications that require high vibration resistance.
The MSL of the LGW2G221MELB30 capacitor is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before soldering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGW2G221MELB30 Overview

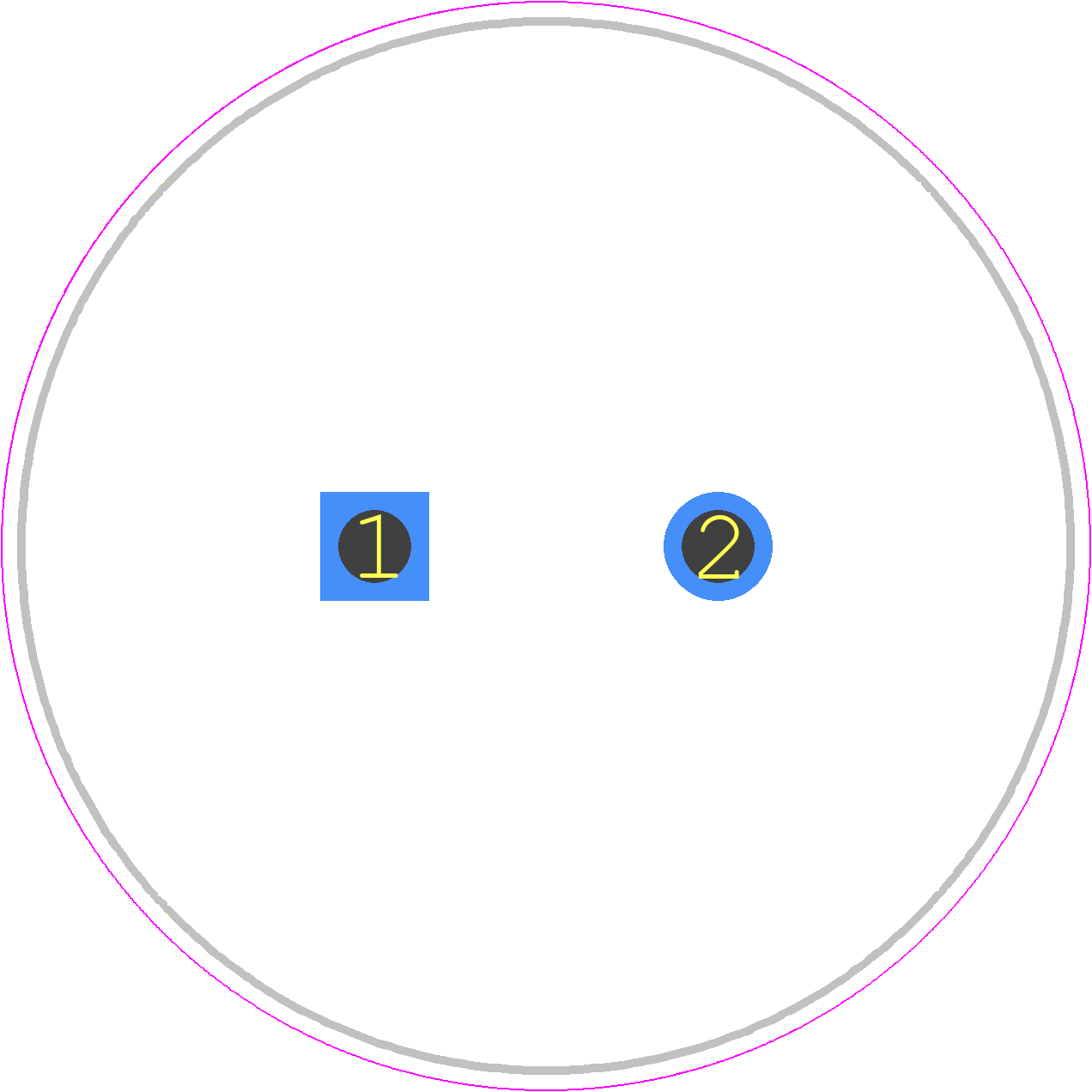

Use the download button to access the LGW2G221MELB30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGW2G,
or try a keyword search, such as Aluminum Electrolytic Capacitors
