LGW2G331MELB40 - Nichicon

Description: Nichicon 330μF 400 V Aluminium Electrolytic Capacitor, GW Series 3000h 30 (Dia.) x 40mm

Download LGW2G331MELB40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGW2G331MELB40 - Nichicon - PCB symbol
click to zoom
PCB Footprints

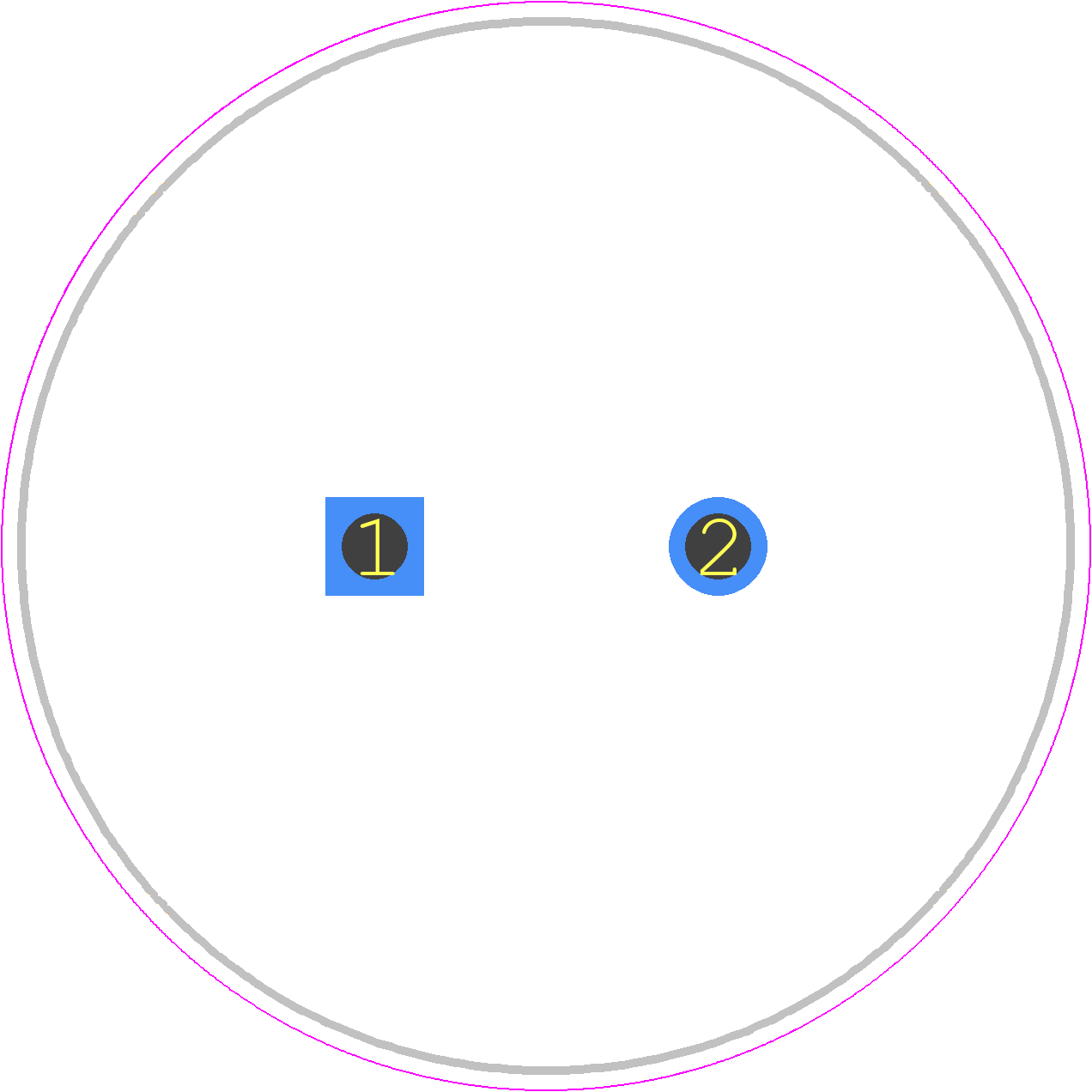

LGW2G331MELB40 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30X40
click to zoom
3D Models
LGW2G331MELB40 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 30X40
click to zoom

LGW2G331MELB40 Details

  • Manufacturer Part Number:

    LGW2G331MELB40

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.08 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    2330 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGW2G331MELB40 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGW2G331MELB40 is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress, such as in automotive or industrial systems.
  • The ESR of the LGW2G331MELB40 is relatively low, which means it can handle high-frequency switching and reduce energy losses. This results in improved efficiency and reliability in power supply circuits.
  • Yes, the LGW2G331MELB40 is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives, making it suitable for use in environmentally friendly designs.
  • The derating curve for the LGW2G331MELB40 can be found in the Nichicon Corporation's application notes or by contacting their technical support. It provides guidance on reducing the capacitor's voltage rating at elevated temperatures to ensure reliable operation.
