The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. However, it's essential to follow the Nichicon Corporation's recommended soldering profile and guidelines to ensure reliable assembly.
While the LGW2W151MELB25 is a high-reliability capacitor, it's not specifically designed for high-vibration or high-shock applications. If your design requires such conditions, consider using capacitors with specialized vibration-resistant or shock-resistant designs.
The LGW2W151MELB25 has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's still important to follow proper storage and handling procedures to prevent moisture absorption. If your application requires high humidity or moisture resistance, consider using capacitors with specialized coatings or designs.
The ESR of the LGW2W151MELB25 is not explicitly stated in the datasheet. However, based on similar capacitors from Nichicon Corporation, the ESR is typically around 10-20 mohms at 100 kHz. For more accurate information, contact Nichicon Corporation or consult their application notes.
The LGW2W151MELB25 is rated for operation up to 125°C. While it may be possible to use it in higher temperature applications, the capacitor's performance and reliability may degrade. Consult Nichicon Corporation or consider using capacitors specifically designed for high-temperature applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGW2W151MELB25 Overview

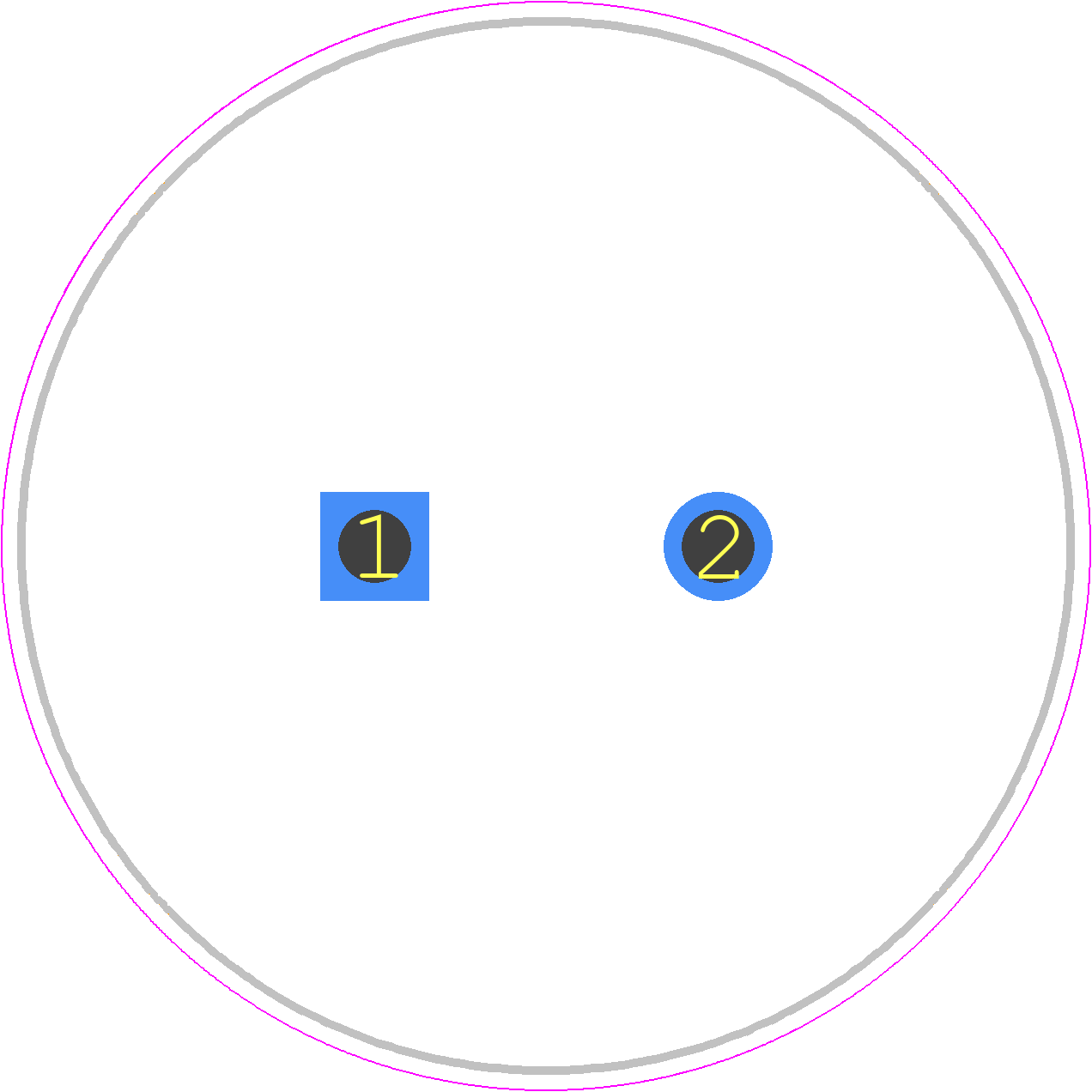

Use the download button to access the LGW2W151MELB25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGW2W,
or try a keyword search, such as Aluminum Electrolytic Capacitors
