LGW2W181MELB30 - Nichicon

Description: 180 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C , 30 x 30mm

Download LGW2W181MELB30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGW2W181MELB30 - Nichicon - PCB symbol
click to zoom
PCB Footprints

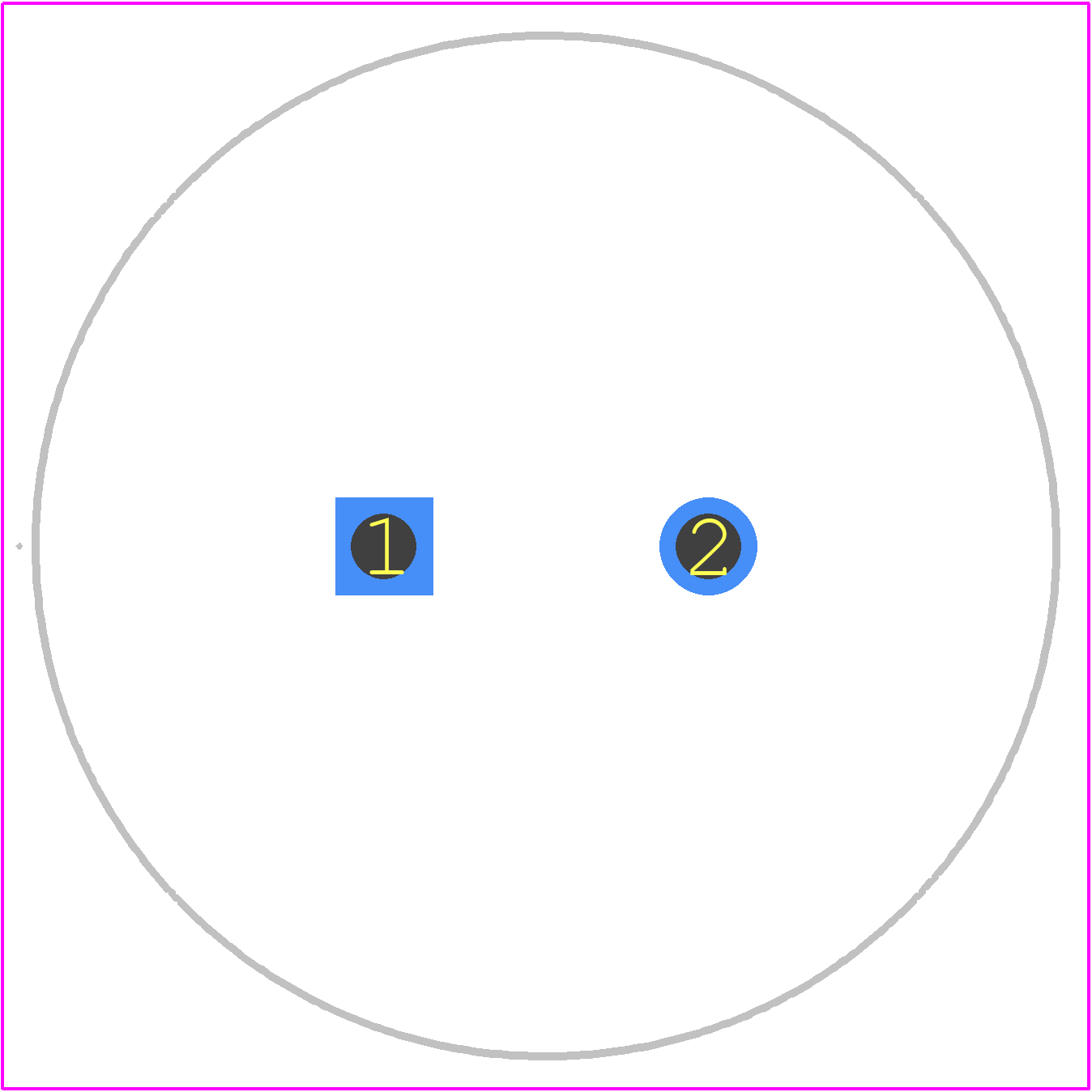

LGW2W181MELB30 - Nichicon PCB footprint - Other - Other - 30 x 30mm_2026
click to zoom
3D Models
LGW2W181MELB30 - Nichicon - 3D model - Other - 30 x 30mm_2026
click to zoom

LGW2W181MELB30 Details

  • Manufacturer Part Number:

    LGW2W181MELB30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    180 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.85 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1600 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGW2W181MELB30 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGW2W181MELB30 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium above the allowed limits.
  • The ESR of the LGW2W181MELB30 capacitor is not explicitly stated in the datasheet, but it is typically around 10-20 mohms for electrolytic capacitors of this type and size.
  • While the LGW2W181MELB30 capacitor is designed to be reliable, it is not specifically designed for high-vibration environments. If you need a capacitor for a high-vibration application, you may want to consider a capacitor with specific vibration-resistant features or consult with the manufacturer.
  • The shelf life of the LGW2W181MELB30 capacitor is typically 2 years from the date of manufacture, but it can be extended to 5 years or more if stored properly in a cool, dry place.
